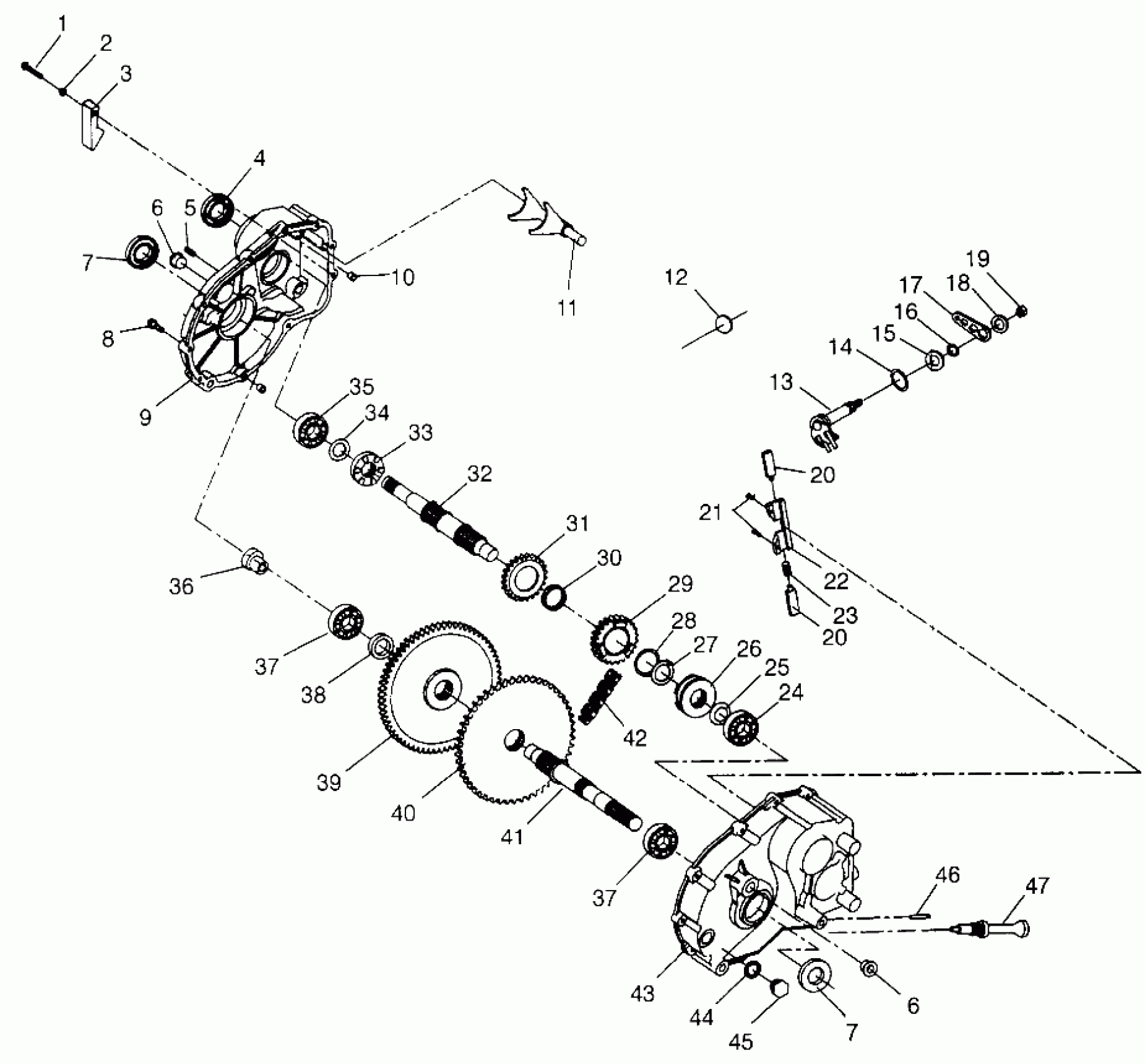

Polaris SPORT 400L - W968540 GEARCASE - W968540 (4935863586C009) Diagram

#

Description
Price

-

GEARCASE, PRD. (Trail Blazer)

1341161

Unavailable

-

GEARCASE ASM. (Sport)

1341174

Unavailable

1

BOLT,(10) (Sport)

7512265

$3.99

2

WASHER(10) (Sport)

7555827

$3.99

3

DAMPENER,CARBURETOR (Sport)

5432082

Unavailable

4

SEAL Substituted by 3233248

3233097

$30.88

5

STUD

3233025

Unavailable

6

BUSHING,PIVOT

3233024

Unavailable

6

BUSHING,PIVOT

3233024

Unavailable

7

SEAL Substituted by 3233248

3233096

Unavailable

7

SEAL Substituted by 3233248

3233096

Unavailable

8

SCREW (Trail Blazer)

3233026

$6.46

9

GEARCASE, LH.

3233095

$298.99

10

PIPE, KNOCK

3233021

Unavailable

11

FORK,SHIFT,HR

3233231

Unavailable

12

PLUG

3233178

Unavailable

13

SHAFT,SHIFT,WELD/ASM.

3233232

Unavailable

14

O-RING

3233179

Unavailable

15

WASHER

3233119

$7.79

16

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

17

BELLCRANK, HI/REV

3233155

Unavailable

18

Washer

3233054

$6.46

19

Nut

3233055

Unavailable

20

PIN

3233031

$32.11

20

PIN

3233031

$32.11

21

SCREW Substituted by 3233747

3233033

Unavailable

22

BRACKET

3233030

$21.43

23

SPRING

3233233

Unavailable

24

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

25

WASHER

3233007

Unavailable

26

DOG,FWD.ENGAGE. (Blazer)

3233184

Unavailable

26

DOG,FWD.ENGAGEMENT (Sport)

3233237

Unavailable

27

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

28

Washer

3233105

$7.19

29

SPKT,19T,FWD. (Blazer)

3233242

Unavailable

29

SPKT,19T,FWD. (Sport)

3233236

Unavailable

30

BEARING, NEEDLE

3233103

$31.99

31

GEAR,REVERSE,19T (Blazer)

3233241

$217.49

31

GEAR,REVERSE (Sport)

3233235

Unavailable

32

SHAFT, INPUT

3233181

$214.29

33

DOG,REV.ENGAGE. (Blazer)

3233180

Unavailable

33

DOG,REV.ENGAGEMENT (Sport)

3233234

Unavailable

34

WASHER

3233099

Unavailable

35

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

36

BUSHING,SPEEDO.DRIVE

5020741

$9.03

37

BEARING

3233020

$47.99

37

BEARING

3233020

$47.99

38

VALVE,SHOCK

1500032

$4.95

39

GEAR, 65T

3233109

Unavailable

40

SPROCKET, 51T

3233121

Unavailable

41

SHAFT, OUTPUT

3233112

Unavailable

42

CHAIN,SILENT,60P (11W)

3233111

$79.19

43

GEARCASE,RH

3233238

Unavailable

44

Washer

3233035

Unavailable

45

PLUG Substituted by 3233448

3233114

$23.81

46

Vent

3233037

Unavailable

47

DIPSTICK Substituted by 3233478

3233115

$24.27
