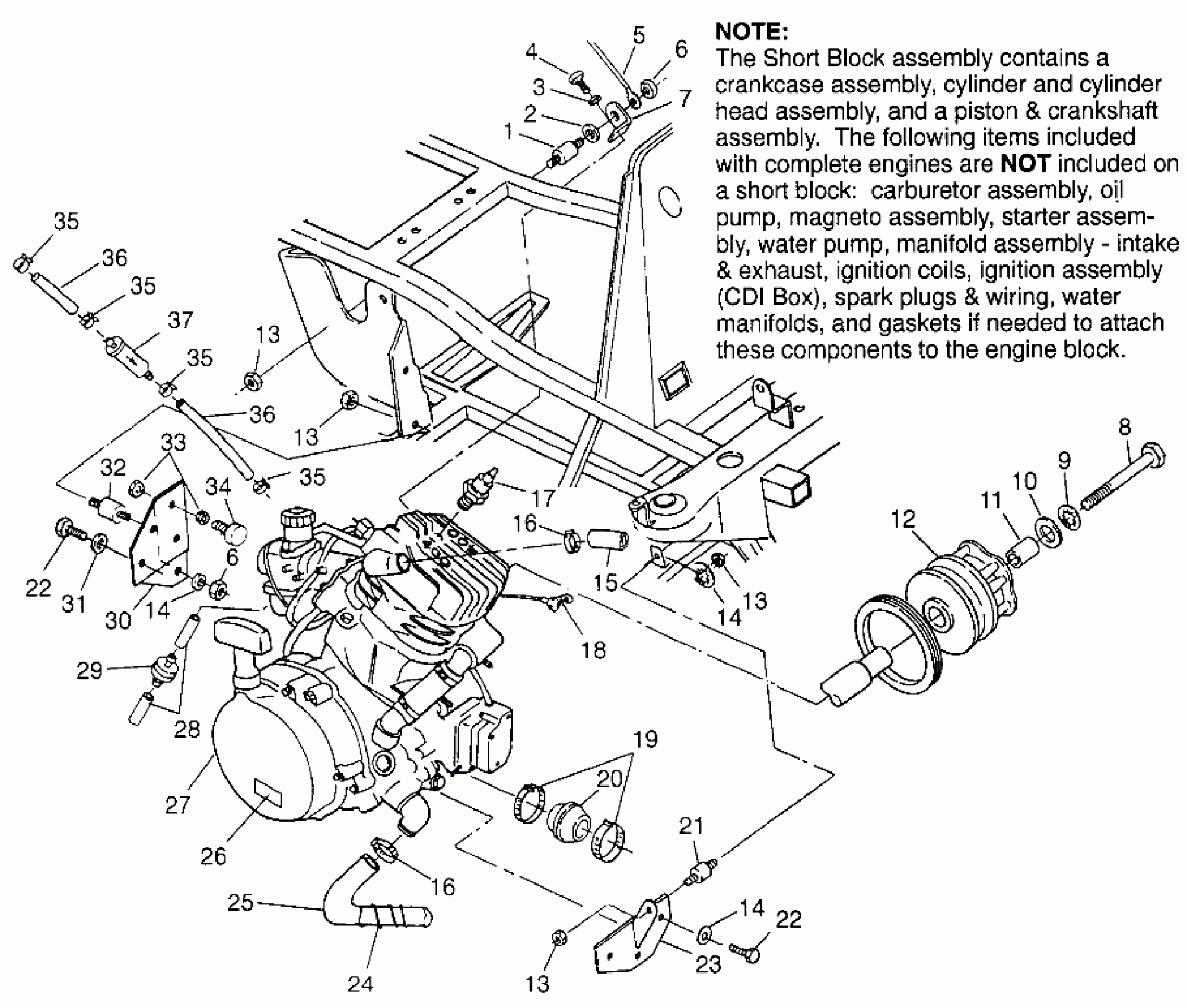

Polaris SPORT 400L - W968540 ENGINE MOUNTING (SPORT) - W968540 (4935863586A009) Diagram

#

Description
Price

1

MT.,RUBBER,ENG.

3110038

Unavailable

2

INSULATOR,MOTOR MT.

5430802

$27.99

3

LOCK WASHER(10)

7552901

$1.49

4

BOLT(10)

7515321

$1.49

5

CABLE,GROUND/ENG.

4010067

Unavailable

6

NUT LOCK(10)

7542411

$3.19

6

NUT LOCK(10)

7542411

$3.19

7

MOUNT,ENG.TOP

5222415-067

Unavailable

8

BOLT(10)

7512566

$30.79

9

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

10

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

11

BUSHING-.437 X.770 X.50

5430261

$7.19

12

Asm., Drive Clutch (See Pg. C1, Ref. 15)

-------

Unavailable

13

NUT LOCK(10)

7542403

$3.99

13

NUT LOCK(10)

7542403

$3.99

13

NUT LOCK(10)

7542403

$3.99

13

NUT LOCK(10)

7542403

$3.99

14

WASHER(10)

7555801

$3.99

14

WASHER(10)

7555801

$3.99

14

WASHER(10)

7555801

$3.99

15

HOSE,ENG,UPPER

5410570

$44.51

16

CLAMP,HOSE,(10)

7080614

$7.19

16

CLAMP,HOSE,(10)

7080614

$7.19

17

SPARKPLUG (10)

3070156

$3.99

18

CABLE,SOLENOID/STARTER

4010064

Unavailable

19

CLAMP, NARROW BAND(10)

7080511

$4.79

20

BOOT,CLUTCH INTAKE(400)

5410883

$7.99

21

MOUNT,MOTOR

3110026

Unavailable

22

SCREW(10)

7512490

$3.99

22

SCREW(10)

7512490

$3.99

23

MOUNT,ENGINE

1040231-067

Unavailable

24

SPRING,HOSE RETAINER

7041079

$4.95

25

HOSE,LOWER ENGINE

5411173

$91.99

26

DECAL,DRAIN RECOIL Substituted by 7078577

7075741

Unavailable

27

ENG.(S.B.)EC38PLE-05 [No Longer Available] (EC38PLE05)

3085234

Unavailable

28

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

29

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

30

Mount, Rear Engine

5240542-067

Unavailable

31

Washer, Spring Lock

7553001

Unavailable

32

Mount, Rubber, Engine

3110042

Unavailable

33

Nut, Jam

7542432

$3.99

34

Mount, Rubber Torque Stop

3110048

$7.43

35

CLAMP, HOSE

7080236

$1.59

35

CLAMP, HOSE

7080236

$1.59

35

CLAMP, HOSE

7080236

$1.59

35

CLAMP, HOSE

7080236

$1.59

36

Line, Fuel

8450042-1525

Unavailable

36

Line, Fuel

8450042-1525

Unavailable

37

FILTER

2530009

$5.65
