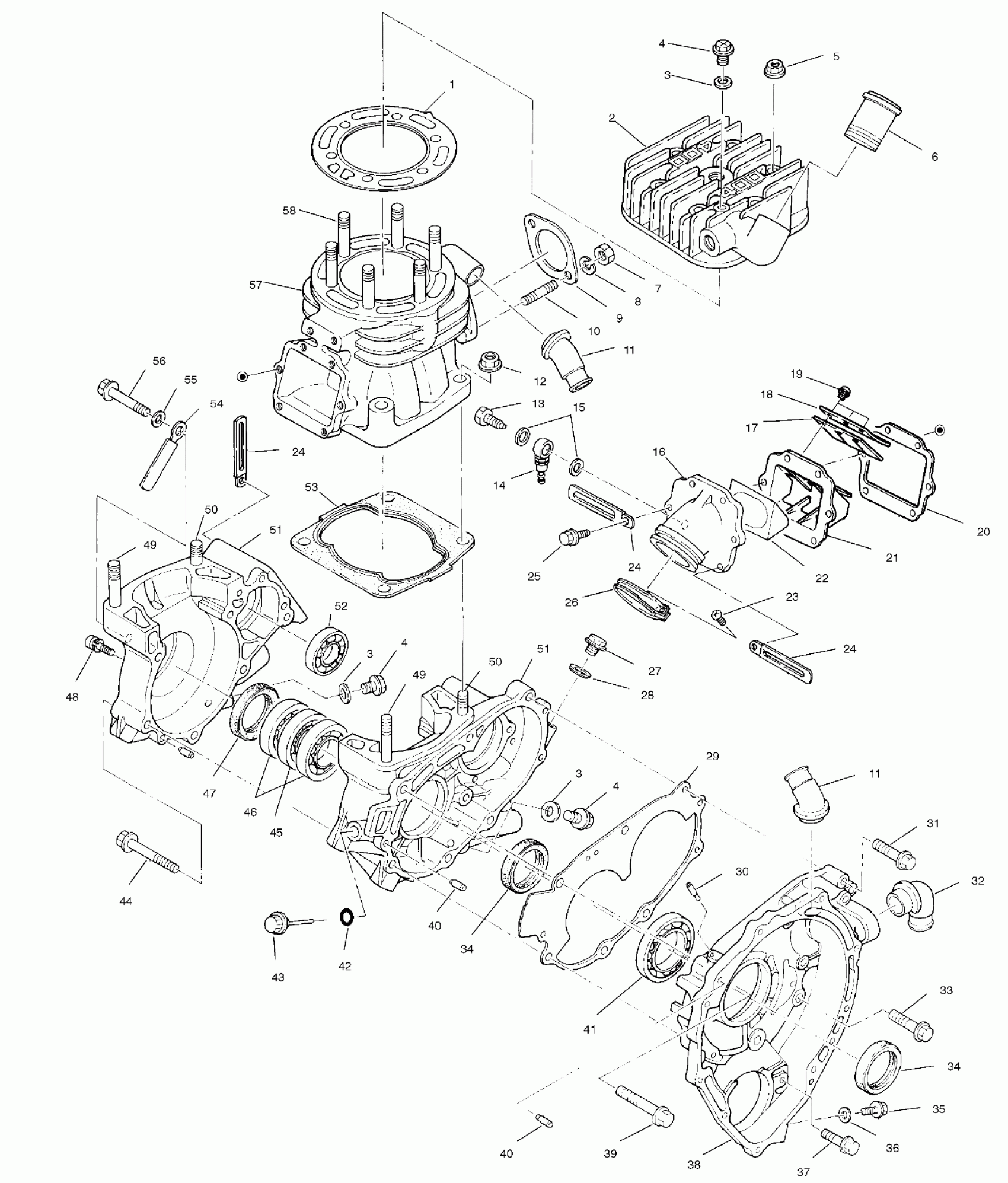

Polaris SPORT 400L - W968540 CRANKCASE and CYLINDER (SPORT) - W968540 (4935863586C013) Diagram

#

Description
Price

1

GASKET,HEAD (Head)

3084731

Unavailable

2

HEAD, CYLINDER Substituted by 3086755 (Incl. 6)

3084730

Unavailable

3

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

3

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

3

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

4

PLUG, DRAIN

3083767

Unavailable

4

PLUG, DRAIN

3083767

Unavailable

4

PLUG, DRAIN

3083767

Unavailable

5

NUT-FLANGE(10)

3082910

$2.39

6

PIPE, WATER (Water)

3083452

Unavailable

7

NUT(10)

3080285

Unavailable

8

WASHER LOCK ,(10)

3080530

$3.19

9

GASKET,EXHAUST Substituted by 3084439 (Exhuast) Non-Asbestos

3084017

Unavailable

10

STUD (10)

3080016

$5.75

11

PIPE, 1 ELBOW Substituted by 3086746 (Elbow)

3084129

Unavailable

11

PIPE, 1 ELBOW Substituted by 3086746 (Elbow)

3084129

Unavailable

12

NUT-FLANGE(10)

3082911

$1.99

13

BOLT-BANJO

3083137

Unavailable

14

VALVE, CHECK

3083894

Unavailable

15

WASHER(10) Substituted by 7555998

3083138

Unavailable

16

ADAPTER, CARB.

3085277

Unavailable

17

VALVE, REED(10)

3240064

Unavailable

18

Stopper

3240065

Unavailable

19

SCREW&WASHER Substituted by 3084565

3240066

Unavailable

20

GASKET, REED VALVE,(10) (Reed Valve)

3084148

Unavailable

21

VALVE ASM., REED (Incl. 17-19)

3084147

Unavailable

22

STUFFER,(REED VALVE ASM.)

3240164

$9.91

23

SCREW,(10)

3081497

$2.39

24

Clamp

3083590

$3.99

24

Clamp

3083590

$3.99

24

Clamp

3083590

$3.99

25

BOLT, FLANGE Substituted by 3086759 (Adapter)

3084145

Unavailable

26

BAND ASM. (Adatper) (Incl. 23)

3084144

Unavailable

27

PLUG Substituted by 3086749

3083453

Unavailable

28

GASKET

3082956

$4.84

29

GASKET,(CASE 3) Substituted by 3086748 (Case 3)

3084727

Unavailable

30

PIPE, BREATHER (Breather)

3084128

Unavailable

31

BOLT, FLANGE Substituted by 3086751

3084177

Unavailable

32

PIPE, 2 ELBOW Substituted by 3086747 (Elbow)

3084130

Unavailable

33

BOLT, FLANGE ,(10)

3084435

Unavailable

34

Seal, Oil

3084120

Unavailable

34

Seal, Oil

3084120

Unavailable

35

PLUG

3085152

Unavailable

36

GASKET,ALUMINUM(10)

3083482

$3.22

37

Bolt, Flange

3084126

Unavailable

38

CRANKCASE 3 Substituted by 3087149 (Incl. 11,30,32,34,40,41)

3085278

Unavailable

39

Bolt, Flange

3084134

Unavailable

40

PIN, DOWEL Substituted by 3086838

3080103

$7.14

40

PIN, DOWEL Substituted by 3086838

3080103

$7.14

41

Bearing, Ball

3084131

Unavailable

42

O-Ring

3084733

Unavailable

43

GAUGE, OIL Substituted by 3085517 (Incl. 42)

3084732

Unavailable

44

BOLT, FLANGE Substituted by 3086742

3084125

Unavailable

45

Bearing, Ball

3084775

$43.99

46

Bearing, Ball

3084121

$39.99

47

Seal, Oil

3084725

Unavailable

48

SCREW & WASHER(10)

3084205

$3.99

49

Stud

3084118

Unavailable

49

Stud

3084118

Unavailable

50

Stud

3084119

$9.59

50

Stud

3084119

$9.59

51

CRANKCASE ASM. Substituted by 3086740 (See Footnote) (Incl. 3,4,34,37, 40,46-44,49,50,52,56)

3084774

Unavailable

51

CRANKCASE ASM. Substituted by 3086740 (See Footnote) (Incl. 3,4,34,37, 40,46-44,49,50,52,56)

3084774

Unavailable

52

Bearing, Ball

3084123

Unavailable

53

GASKET,CYLINDER

3084729

$48.56

54

Clamp

3083384

Unavailable

55

WASHER(10)

3080142

$3.99

56

Bolt, Flange

3084124

$6.23

57

CYLINDER Substituted by 3086753 (Incl. 10,11,58)

3085276

Unavailable

58

Stud

3084138

Unavailable
