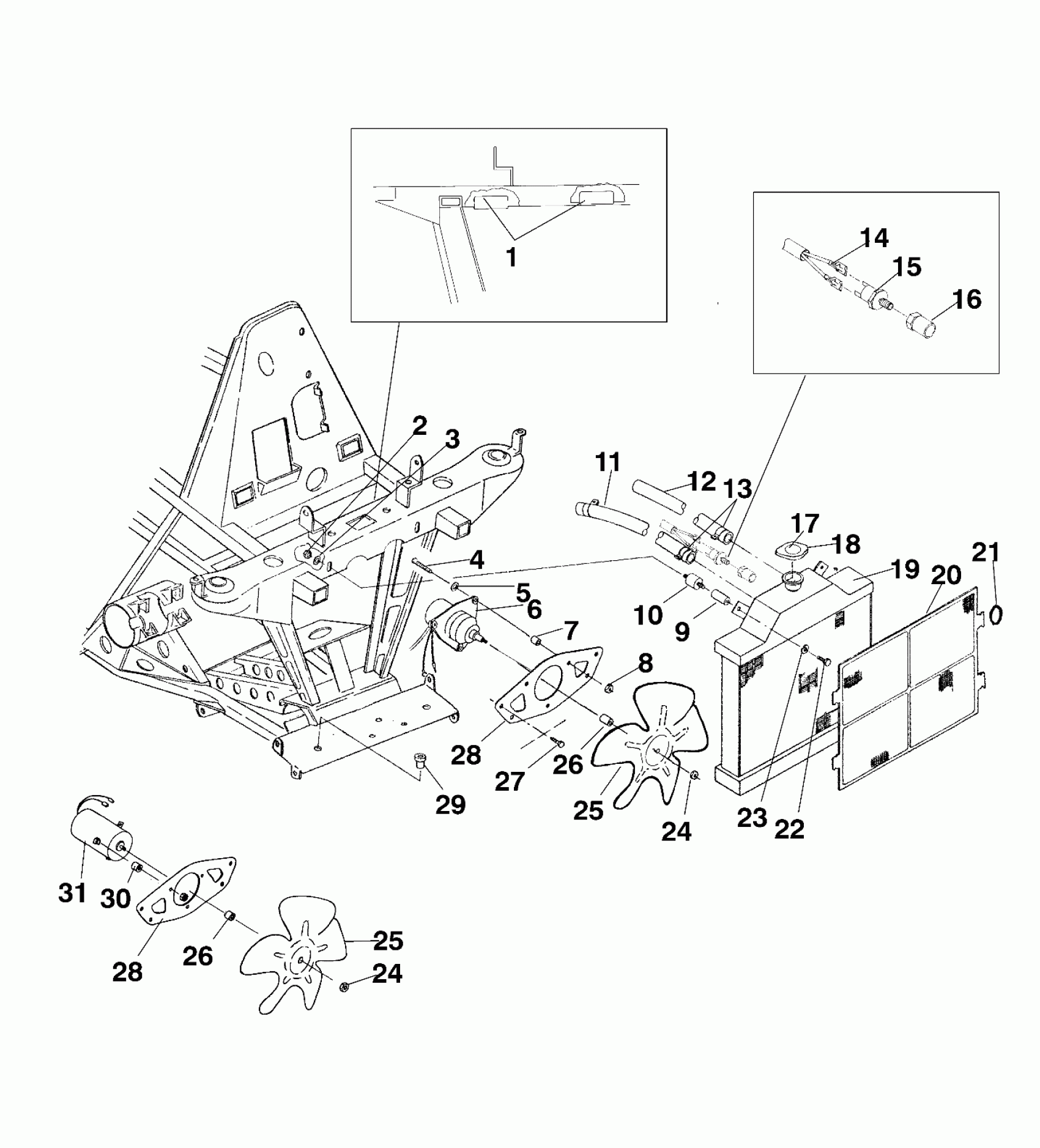

Polaris SPORT 400L - W968540 COOLING SYSTEM (SPORT) - W968540 (4935863586A011) Diagram

#

Description
Price

1

Trim, Edge

8360012-10

Unavailable

2

NUT-LOCK(10)

7542122

$1.49

3

WASHER(10)

7558301

$1.49

4

SCREW(10)

7511874

Unavailable

5

WASHER, FLAT(10)

7558201

$5.79

6

DESC NOT_AVAILABLE

2410054

Unavailable

7

SPACER, FAN BRKT.

5333073

$3.83

8

Nut

7547004

$4.79

9

Spacer, Mount

5020572

$8.79

10

Mount, Rubber

3110032

$7.99

11

Hose, Upper Engine (See Pg. A9, Ref. 15)

-------

Unavailable

12

Hose, Lower Engine (See Pg. A9, Ref. 25)

-------

Unavailable

13

CLAMP,HOSE,(10)

7080614

$7.19

14

HARNESS,FAN/THERM.SWITCH

2460515

Unavailable

15

FITTING,HEX BUSH

7052116

Unavailable

16

SWITCH,THERMAL FAN,L/C Substituted by 4110226

4110201

Unavailable

17

DECAL(CPSC),RAD.CAP

7073068

Unavailable

18

CAP, RADIATOR Substituted by 2511270

2511189

Unavailable

19

RADIATOR,"U"FLOW

1240015

Unavailable

20

COVER,RADIATOR,W/MESH

5431610

Unavailable

21

O RING

5410607

$5.99

22

SCREW(10)

7512113

$3.99

23

WASHER(10)

7552605

$5.27

24

NUT

7542154

Unavailable

24

NUT

7542154

Unavailable

25

BLADE, FAN

5240822

$57.59

25

BLADE, FAN

5240822

$57.59

26

SPACER

5333457

Unavailable

26

SPACER

5333457

Unavailable

27

BOLT(10)

7512232

$1.49

28

BRKT,COOL.FAN,BLK

5224741-067

Unavailable

28

BRKT,COOL.FAN,BLK

5224741-067

Unavailable

29

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

30

SPACER,FAN BRKT.

5432294

$3.99

31

MOTOR,FAN,LIQ.COOLED (Domestic)

4170009

Unavailable
