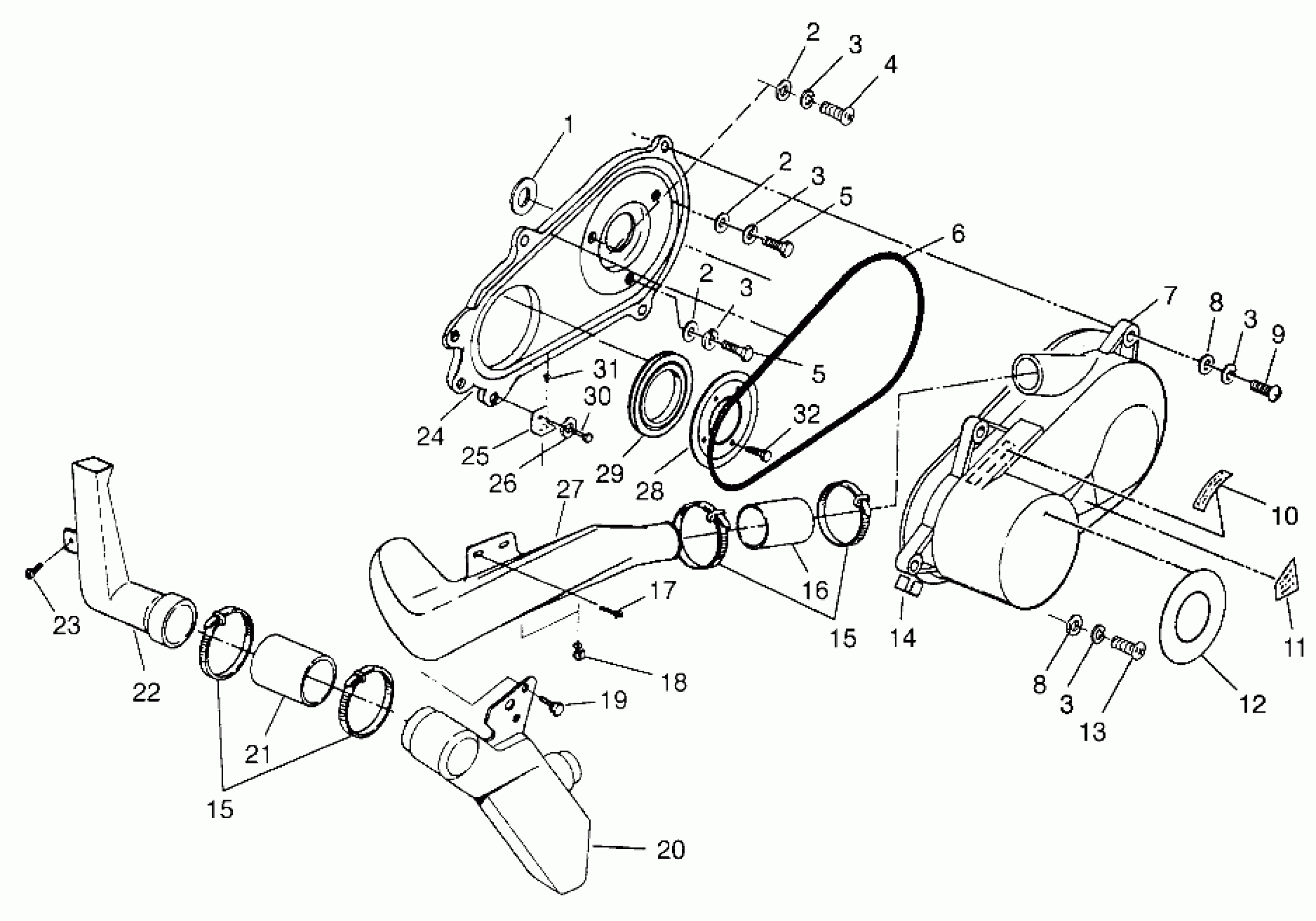

Polaris SPORT 400L - W968540 CLUTCH COVER (BLAZER) - W967827 (4935863586C008) Diagram

#

Description
Price

1

SEAL,COVER CASE

5410489

$13.75

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

3

WASHER(10) (Not Used With HI/LO Screws)

7552605

$5.69

3

WASHER(10) (Not Used With HI/LO Screws)

7552605

$5.69

3

WASHER(10) (Not Used With HI/LO Screws)

7552605

$5.69

3

WASHER(10) (Not Used With HI/LO Screws)

7552605

$5.69

3

WASHER(10) (Not Used With HI/LO Screws)

7552605

$5.69

4

BOLT(10)

7512232

$1.19

5

SCREW(10)

7515179

$2.38

5

SCREW(10)

7515179

$2.38

6

SEAL,CLUTCHCOVER

5521301

$32.37

7

COVER,CLUTCH,FRONT Substituted by 5433542

5431961

$190.22

8

WASHER(10) Substituted by 7558301

7555776

$1.19

8

WASHER(10) Substituted by 7558301

7555776

$1.19

9

SCREW(10)

7512093

$1.19

9

SCREW (10) Substituted by 7512281

7515176

$3.97

10

DECAL,CLUTCH COVER Substituted by 7078689

7074946

Unavailable

11

DECAL(CPSC),ENG/CLUTCH MOD. [No Longer Available]

7072789

Unavailable

12

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

13

SCREW(10)

7512094

$1.59

13

SCREW(10)

7515186

Unavailable

14

CLIP,CLUTCH COVER(10)

7670051

Unavailable

15

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

15

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

16

BOOT,CLUTCH INTAKE

5410421

$11.32

17

SCREW(10)

7512252

Unavailable

18

CLIP,OIL LINE RET.(10)

5432302

Unavailable

19

SCREW

7512024

$4.76

20

Duct, Inlet Down Tube

5431006

$81.75

21

BOOT, INTAKE

5410509

Unavailable

22

Duct, Inlet Top

5431794

Unavailable

23

Screw

7512017

$4.76

24

Kit, Cover, Clutch, Inner (Incl. 9,13,30)

2200802

Unavailable

25

Bracket, Clutch Cover

5241213-067

Unavailable

26

Washer

7555935

$2.38

27

Duct, Air Outlet Clutch

5432303

Unavailable

28

Bracket, Retainer Seal

5222877-067

Unavailable

29

Seal, Cover Case

5410749

Unavailable

30

Screw (Cover, Clutch Inner, w/o Insert)

7512095

$4.76

30

Screw (Cover, Clutch Inner, w/Insert)

7515187

$3.02

31

Rivet

7621432

$1.19

32

Screw and Washer

3084205

$3.97
