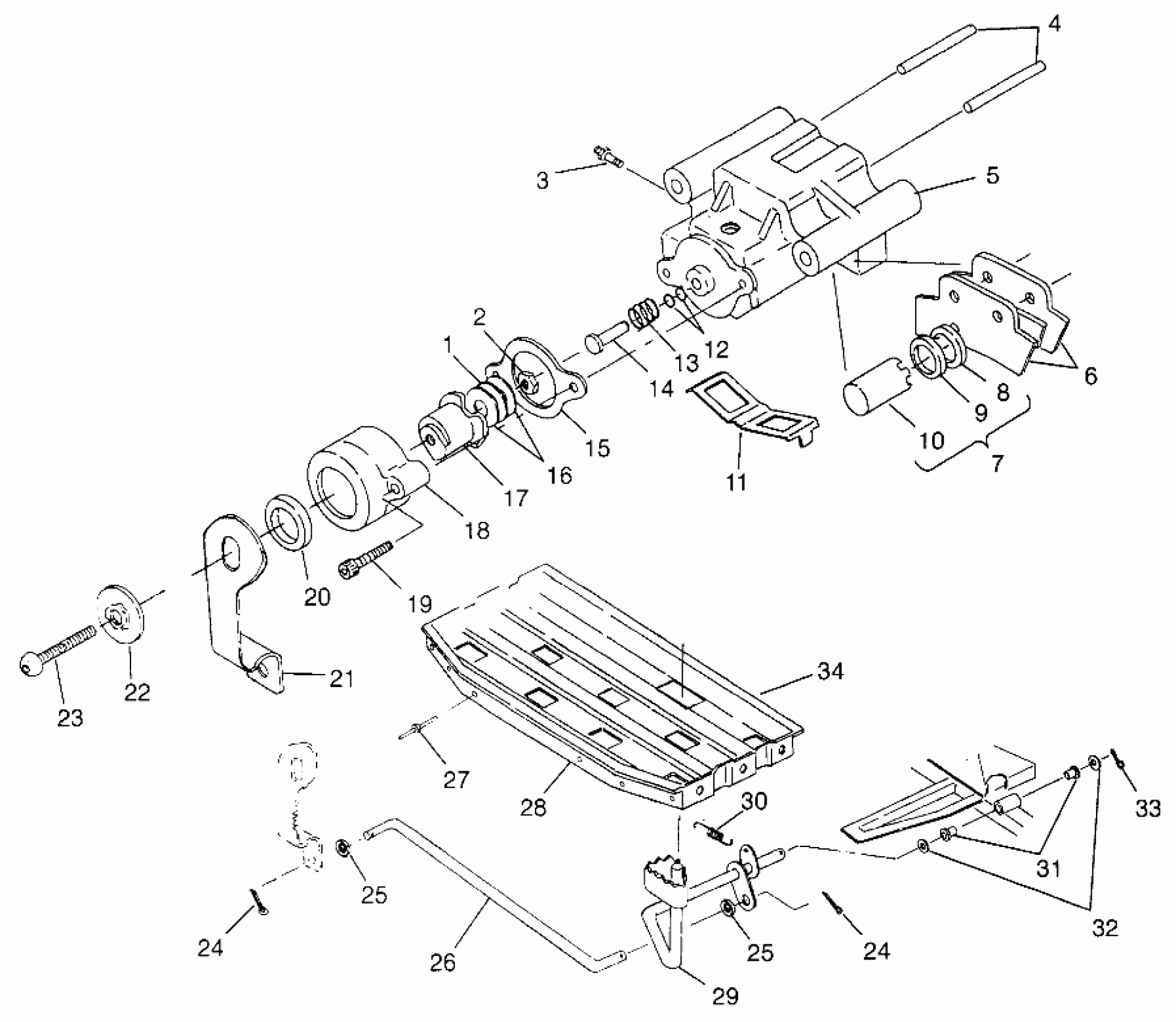

Polaris SPORT 400L - W968540 BRAKES, REAR - W968540 (4935863586C004) Diagram

#

Description
Price

1

WASHER(10)

7555921

Unavailable

2

NUT, LH(10)

7542149

$5.43

3

SCREW,BLEEDER

7080352

$3.19

4

PIN, DOWEL(10)

7661820

$13.99

5

CALIPER,R.BRAKE,MACH

5131272

Unavailable

6

KIT,R.BRAKEPAD,HVY.DUTY

2200899

Unavailable

7

KIT-PISTON & SEAL (Incl. 8-10)

2200463

$87.99

8

Square Ring (.134 Sq.)

-------

Unavailable

9

Square Ring (.099 Sq.)

-------

Unavailable

10

Piston

-------

Unavailable

11

SPRING,ANTI-RATTLE

5240993

Unavailable

12

O RING-.364X.504X.07

5410542

Unavailable

13

SPRING,BRAKE,COMP.

7041219

$24.99

14

PIN,BRAKE CALIPER

5020791

Unavailable

15

GASKET, BRAKE

5830009

$9.99

16

WASHER(10)

7555827

$3.99

17

RAMP,MOVE.BRAKE Substituted by 2200906

5630538

Unavailable

18

RAMP, STAT.BRAKE Substituted by 2200905

5630457

Unavailable

19

SCREW(10)

7512173

Unavailable

20

SEAL, BRAKE

3610026

$7.99

21

ARM,BRAKE CALIPER

5240901

Unavailable

22

WASHER(10)

7571632

Unavailable

23

BOLT,LH SOC/HD.

7515160

Unavailable

24

PIN COTTER(10)

7661203

$1.49

24

PIN COTTER(10)

7661203

$1.49

25

WASHER(10)

7555806

$1.49

25

WASHER(10)

7555806

$1.49

26

ROD, BRAKE

5224531

$51.99

27

RIVET,INTERLOCK,B(50)

7661638

$1.49

28

Trim, Footrest

5431484

Unavailable

29

BRAKE,FOOT,BLK(GEN3,2X4)

1910196-067

Unavailable

30

SPRING-EXHAUST(10)

7042029

$4.84

31

BUSHING-PEDAL PIVOT

5431107

$8.79

32

WASHER(10)

7555919

$4.99

33

COTTER PIN(10)

7661401

$1.49

34

Weld., Foot Pad (See Front Cab Pg., Ref. 24)

-------

Unavailable
