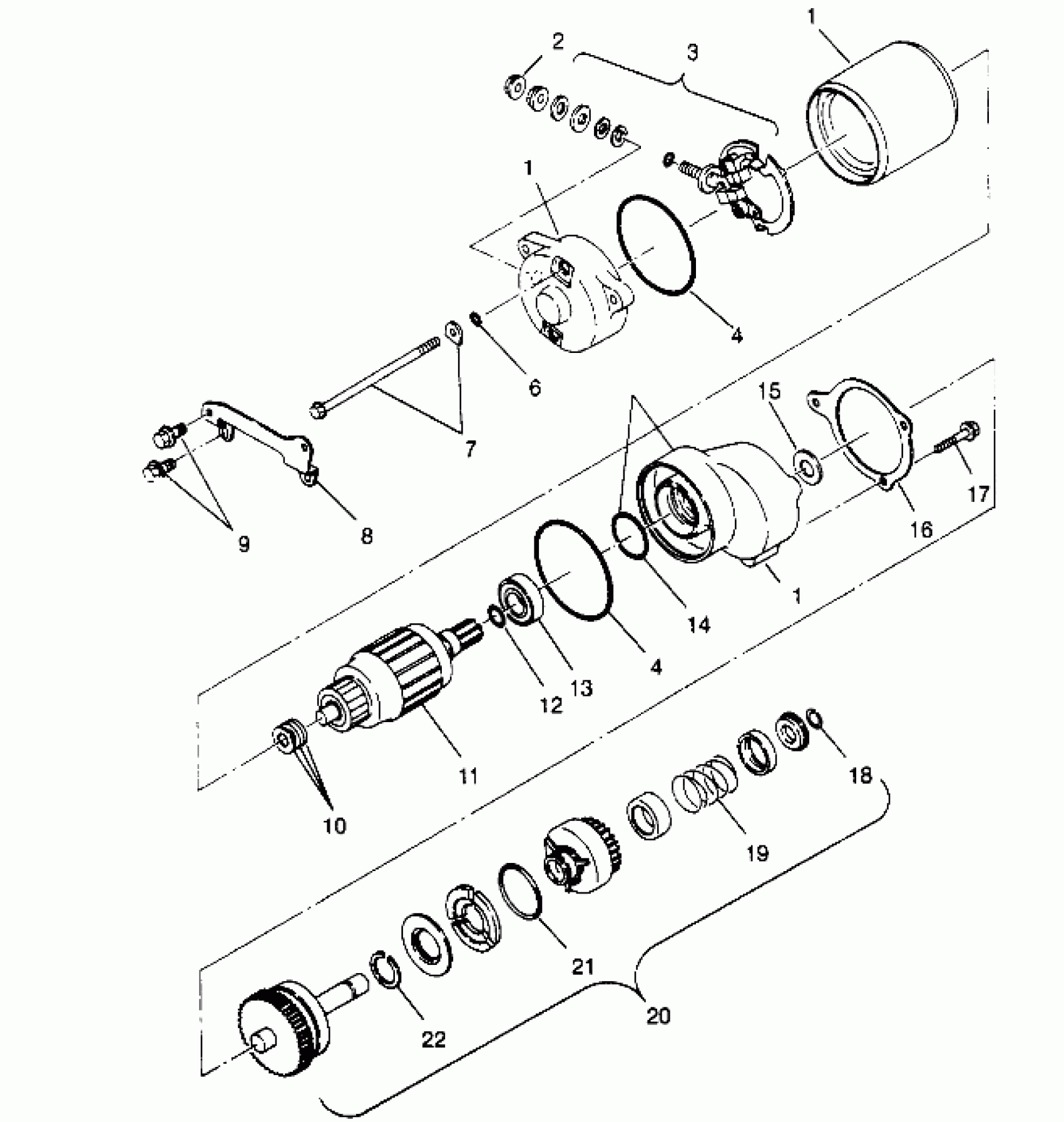

Polaris SPORT 400L - W958540 STARTING MOTOR Sport 400L W958540 (4930133013D001) Diagram

#

Description
Price

1

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 1-7, 10-14)

3084403

Unavailable

1

COVER,FRT,STARTER(300-400) Substituted by 3085305

3085031

$123.02

1

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 1-7, 10-14)

3084403

Unavailable

1

COVER,FRT,STARTER(300-400) Substituted by 3085305

3085031

$123.02

1

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 1-7, 10-14)

3084403

Unavailable

1

COVER,FRT,STARTER(300-400) Substituted by 3085305

3085031

$123.02

2

NUT, FLANGE(10)

3083649

$3.99

3

BRUSH,COMPL.2-POLE *

3084406

Unavailable

4

RING, RUBBER

3084405

Unavailable

4

RING, RUBBER

3084405

Unavailable

6

O-RING

3084408

Unavailable

7

Bolt, Through

3084407

Unavailable

8

BRACKET Substituted by 3086780

3084214

Unavailable

9

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

10

Washer Set

3083754

$2.39

11

ARMATURE ASM. * (Incl. 12, 13)

3084404

$207.99

12

O RING

3083934

Unavailable

13

BALL BEARING

3083777

$31.99

14

O RING

3083741

$9.37

15

WASHER, GEARSHAFT Substituted by 7555908

3083737

Unavailable

16

GASKET, STARTER Substituted by 3085283

3084018

Unavailable

17

BOLT, FLANGE Substituted by 3086781

3084215

Unavailable

18

CLIP

3084409

$7.19

19

SPRING, RETURN

3084410

$2.47

20

GEAR SHAFT ASM. Substituted by 3085394 (Incl. 15, 18, 19, 21, 22)

3083647

Unavailable

21

SPRING, WEIGHT

3084411

$15.67

22

CLIP

3084412

$9.59
