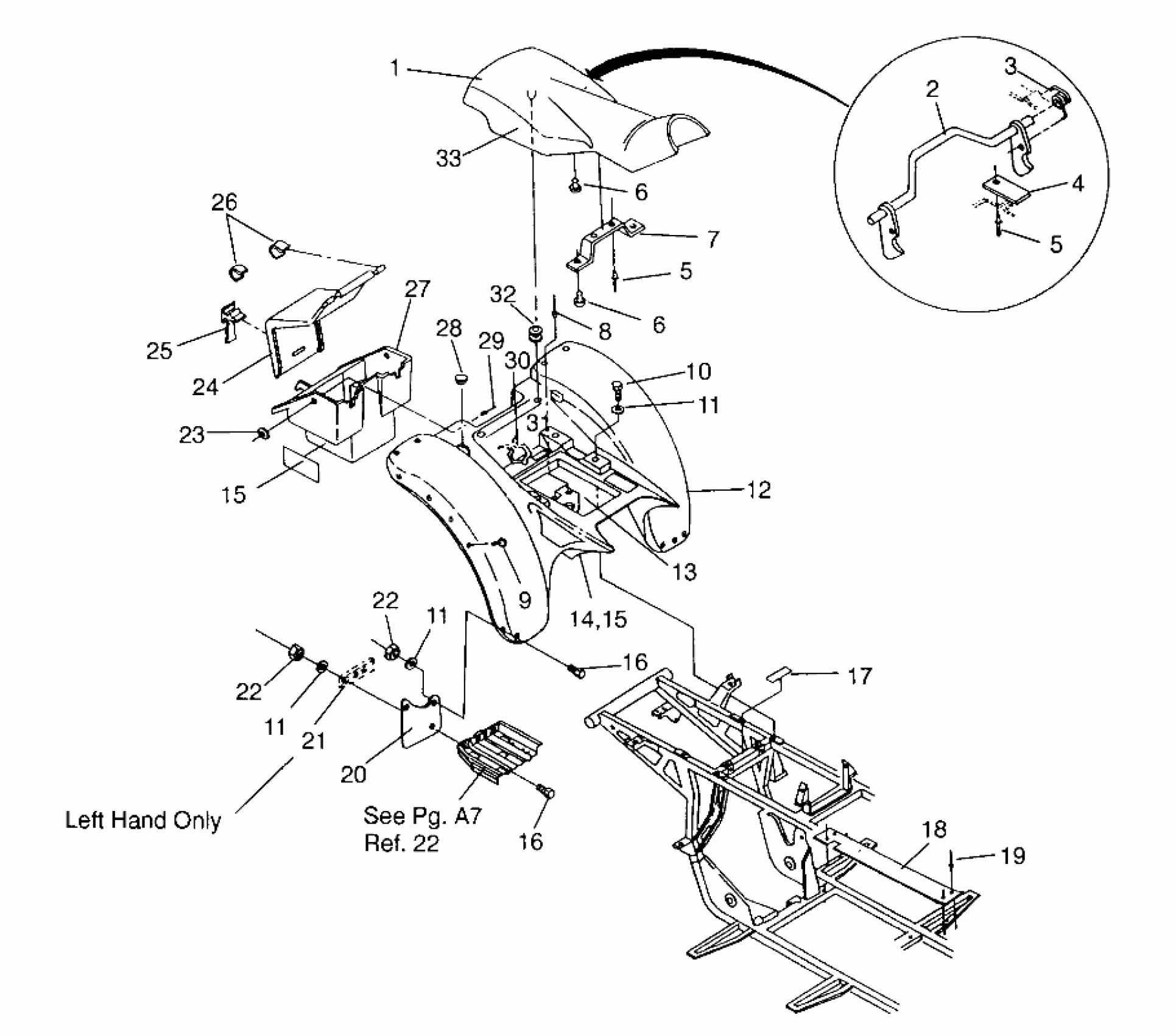

Polaris SPORT 400L - W958540 REAR CAB ASSEMBLY Sport 400L W958540 (4930133013A006) Diagram

#

Description
Price

1

SEAT ASM,(ATV),P.RED Substituted by 2682357-136 (Incl. 2-7, 33)

2681724-136

Unavailable

2

LATCH,SEAT

1011558

Unavailable

3

SPRING, LATCH

7041158

Unavailable

3

SPRING, LATCH

7041158

Unavailable

4

BRACKET,LEVER RETAINER

5211033

$29.25

5

BLIND RIVET(50)

7621403

$1.49

5

BLIND RIVET(50)

7621403

$1.49

6

Bumper, Rubber

5410414

$3.19

6

Bumper, Rubber

5410414

$3.19

7

BRKT,SUPPORT SEAT BASE

5222837-067

Unavailable

8

RIVET,3/16X.402(50)

7621432

$1.49

9

CLIP, PUSH-ON(10)

7670052

$1.99

10

BOLT(10)

7512232

$1.49

11

WASHER, FLAT(10)

7555859

$1.49

11

WASHER, FLAT(10)

7555859

$1.49

11

WASHER, FLAT(10)

7555859

$1.49

12

CAB,REAR,WHITE

5430991-133

Unavailable

13

BRKT,R.HOLDDOWN

5220880

Unavailable

14

FOIL, REAR CAB (Inside)

5810957

Unavailable

14

Foil, Rear Cab, Small

5810991

Unavailable

15

TAPE, FOIL

5810310

Unavailable

15

TAPE, FOIL

5810310

Unavailable

16

BOLT, BLACK(10)

7512282

$1.49

16

BOLT, BLACK(10)

7512282

$1.49

17

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

18

GUARD,CLUTCH,OUTER

5222860-067

$7.06

19

RIVET-3/16-.090-.290

7661637

$1.49

20

MUDFLAP,LH,LOW,REAR

5850076

Unavailable

20

MUDFLAP,RH,LOW.REAR

5850111

Unavailable

21

BRKT, LH MUD FLAP

5211131-067

Unavailable

22

NUT-LOCK(10)

7542122

$1.49

22

NUT-LOCK(10)

7542122

$1.49

23

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

24

LID,TOOLBOX(SIL/WHI)

5430769-1043

$90.48

25

STRAP,TOOL COMPARTMENT

5410425

Unavailable

26

CLIP, LID HINGE(10)

7670050

Unavailable

27

BOX,TOOL COMP.

5430882

Unavailable

28

PLUG, RACK HOLE

5430887

$2.99

29

RIVET(50)

7621462

$1.49

30

RETAINER,TOOL POUCH

7080385

Unavailable

32

GROMMET

5410413

Unavailable

33

COVER,SEAT,P.RED

2681723-136

Unavailable
