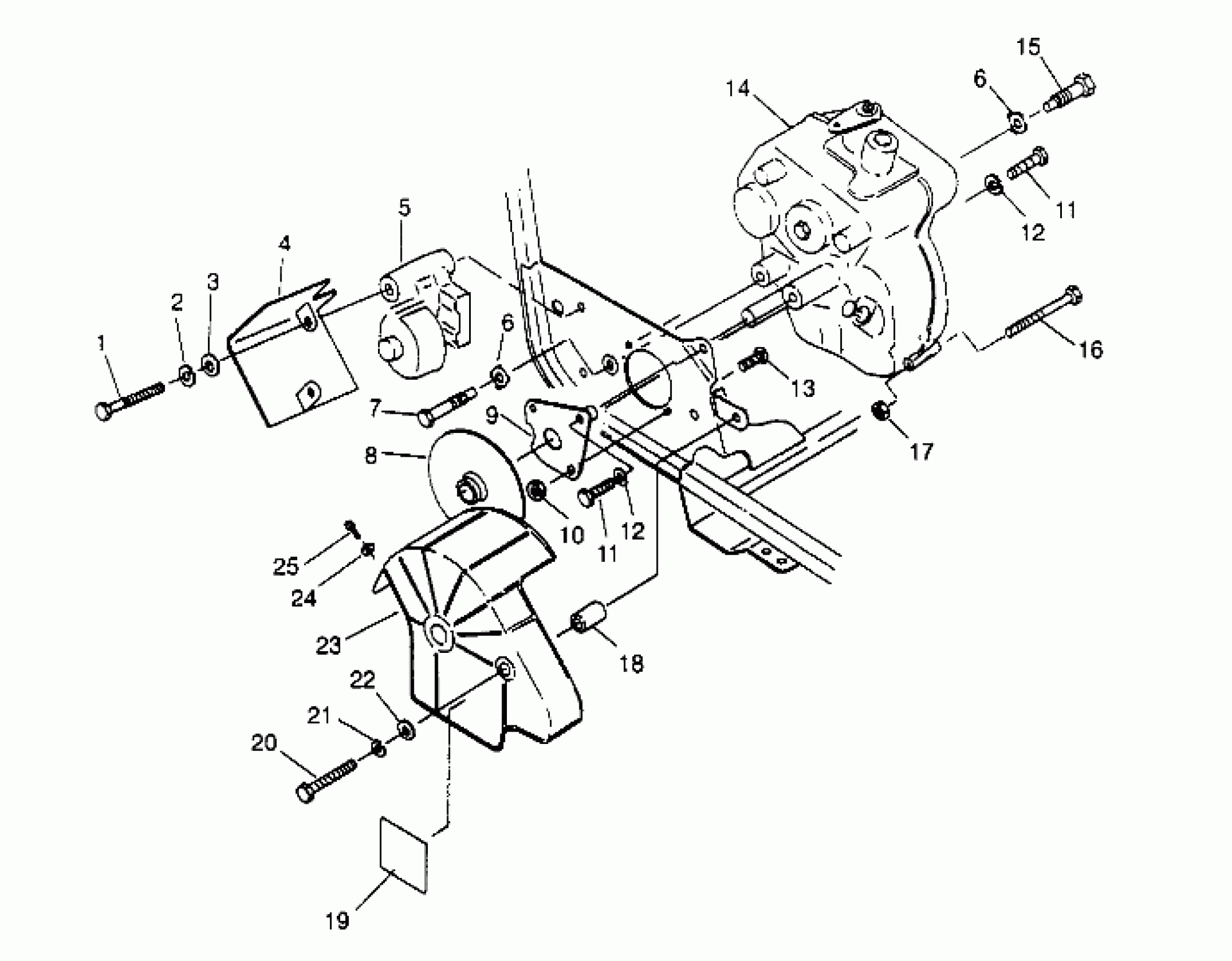

Polaris SPORT 400L - W958540 GEARCASE/BRAKE MOUNTING Sport 400L W958540 (4930133013B014) Diagram

#

Description
Price

1

BOLT(10)

7515345

$5.56

2

LOCK WASHER(10)

7552901

$1.19

3

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

4

SHIELD,R.CALIPER,BLK.

5240149-067

Unavailable

5

Asm., Brake Caliper, Rear (See Pg. A29, Ref. 30)

----

Unavailable

6

PLATE,BOLT LOCK

5220958

$36.41

6

PLATE,BOLT LOCK

5220958

$36.41

7

BOLT, SHOULDER

7512702

Unavailable

8

DISC ASM,BRAKE

1910177

Unavailable

9

BRACE,BULKHEAD,BLK.

1040414-067

Unavailable

10

NUT,FLANGE LOCK(10)

7542449

$3.97

11

BOLT(10)

7515522

$3.97

11

BOLT(10)

7515522

$3.97

12

WASHER(10)

7552603

$0.79

12

WASHER(10)

7552603

$0.79

13

BOLT,CARRIAGE(10)

7515484

Unavailable

14

Asm., Gearcase (See Pg. A32)

----

Unavailable

15

BOLT, SHOULDER (LH Side)

7512701

$23.81

16

BOLT(10)

7515472

$2.38

17

NUT LOCK(10)

7542403

Unavailable

18

SPACER,BRAKE DISC GUARD

5333255

$5.00

19

DECAL(CPSC),BRAKE SHIELD Substituted by 7075339

7072790

Unavailable

20

BOLT(10) Substituted by 7515339

7515328

$4.76

21

WASHER(10)

7552606

$4.76

22

WASHER(10) Substituted by 7558402

7555770

$0.99

23

GUARD, BRAKE DISC

5431766

Unavailable

24

WASHER(10) Substituted by 7558301

7555776

$1.19

25

SCREW(10)

7512252

Unavailable
