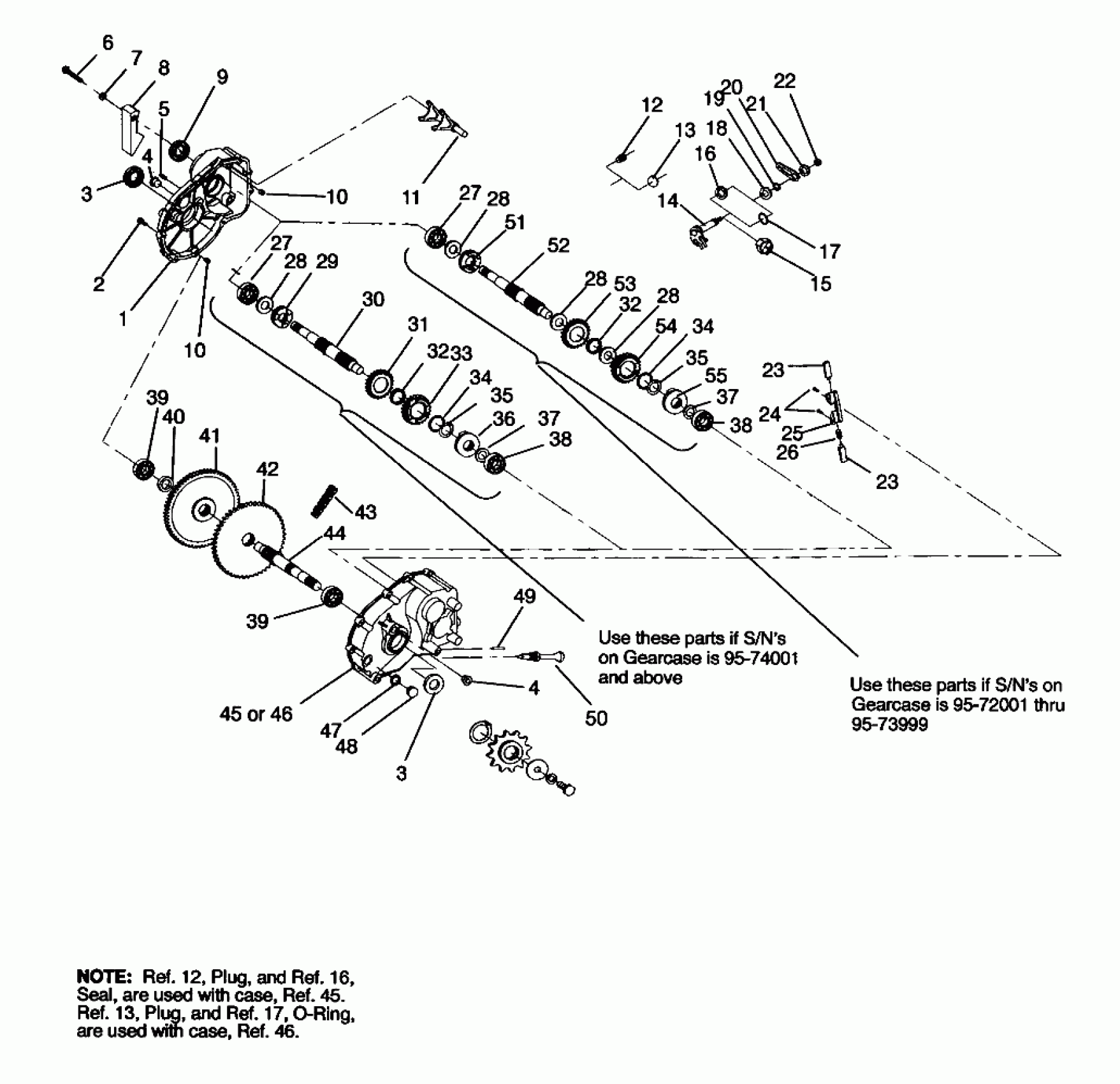

Polaris SPORT 400L - W958540 GEARCASE ASSEMBLY Sport 400L W958540 (4930133013C004) Diagram

#

Description
Price

-

GEARCASE ASM,(SPORT ATV)

1341159

Unavailable

1

GEARCASE, LH.

3233095

$298.99

2

Screw

3233026

$6.46

3

SEAL Substituted by 3233248

3233096

Unavailable

3

SEAL Substituted by 3233248

3233096

Unavailable

4

BUSHING,PIVOT

3233024

Unavailable

4

BUSHING,PIVOT

3233024

Unavailable

5

STUD

3233025

Unavailable

6

BOLT,(10)

7512265

$3.99

7

WASHER(10)

7555827

$3.99

8

DAMPENER,CARBURETOR

5432082

Unavailable

9

SEAL Substituted by 3233248

3233097

$30.88

10

PIPE, KNOCK

3233021

Unavailable

10

PIPE, KNOCK

3233021

Unavailable

11

RAIL,SHIFT,ASM.

3233098

Unavailable

12

PLUG

3233116

Unavailable

13

PLUG

3233178

Unavailable

14

SHAFT,SHIFT,ASM,

3233117

Unavailable

15

SWITCH,TRANS.INDIC.

4110172

Unavailable

16

SEAL

3233118

Unavailable

17

O-RING

3233179

Unavailable

18

WASHER

3233119

$7.79

19

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

20

BELLCRANK, HI/REV

3233155

Unavailable

21

Washer

3233054

$6.46

22

Nut

3233055

Unavailable

23

PIN

3233031

$32.11

23

PIN

3233031

$32.11

24

SCREW Substituted by 3233747

3233033

Unavailable

25

BRACKET

3233030

$21.43

26

Spring

3233032

$12.94

27

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

27

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

28

WASHER

3233099

Unavailable

28

WASHER

3233099

Unavailable

28

WASHER

3233099

Unavailable

28

WASHER

3233099

Unavailable

29

DOG,REV.ENGAGE.

3233180

Unavailable

30

SHAFT, INPUT

3233181

$214.29

31

GEAR,REVERSE

3233182

Unavailable

32

BEARING, NEEDLE

3233103

$31.99

32

BEARING, NEEDLE

3233103

$31.99

33

SPKT,19T,FWD.

3233183

Unavailable

34

Washer

3233105

$7.19

34

Washer

3233105

$7.19

35

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

35

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

36

DOG,FWD.ENGAGE.

3233184

Unavailable

37

WASHER

3233007

Unavailable

37

WASHER

3233007

Unavailable

38

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

38

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

39

BEARING

3233020

$47.99

39

BEARING

3233020

$47.99

40

VALVE,SHOCK

1500032

$4.95

41

GEAR, 65T

3233109

Unavailable

42

SPROCKET, 51T

3233121

Unavailable

43

CHAIN,SILENT,60P

3233111

$79.19

44

SHAFT, OUTPUT

3233112

Unavailable

45

GEARCASE, RH.

3233113

Unavailable

46

GEARCASE,RH.

3233185

Unavailable

47

Washer

3233035

Unavailable

48

PLUG Substituted by 3233448

3233114

$23.81

49

Vent

3233037

Unavailable

50

DIPSTICK Substituted by 3233478

3233115

$24.27

51

DOG,REV.ENGAGEMENT

3233100

Unavailable

52

SHAFT, INPUT

3233101

Unavailable

53

GEAR,REVERSE,19T

3233102

Unavailable

54

SPRKT,FWD,19T

3233104

Unavailable

55

DOG,FWD.ENGAGEMENT NOTE: Ref. 12, Plug, and Ref. 16, Seal, are used with case, Ref. 45. Ref. 13, Plug, and Ref. 17, O-Ring, are used with case, Ref. 46.

3233107

Unavailable
