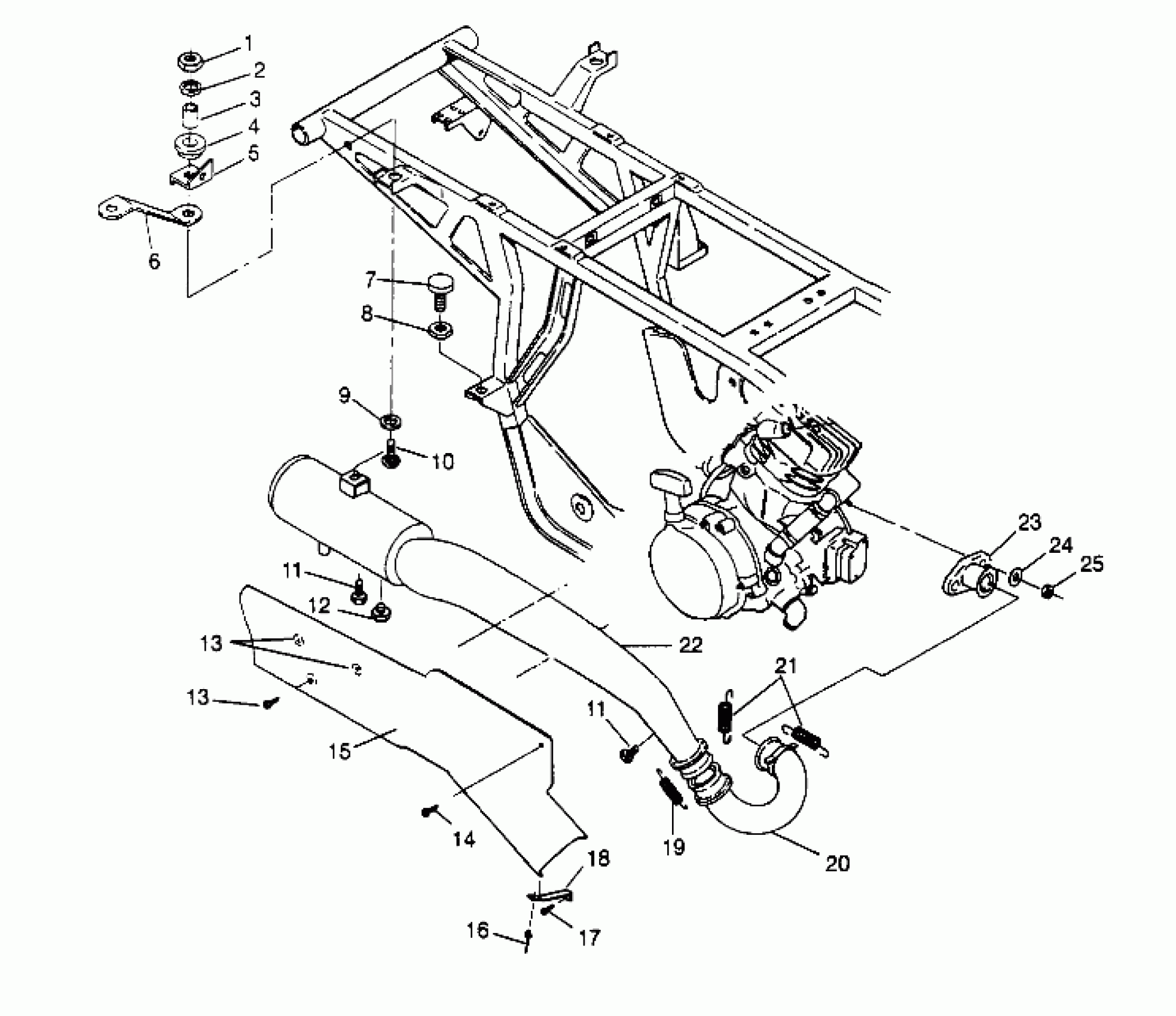

Polaris SPORT 400L - W958540 EXHAUST SYSTEM Sport 400L W958540 (4930133013A011) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$0.79

2

WASHER(10)

7555716

$1.59

3

BUSHING-RES. MT.

5010192

$6.35

4

DAMPENER

5410241

$5.22

5

BRKT,RH SUPPORT RACK Substituted by 5243469-067

5220901-067

Unavailable

6

SUPPORT,R.FENDER

5220902-067

$48.40

7

MOUNT, MOTOR

3110030

Unavailable

8

NUT, JAM(10)

7542432

$3.97

9

WASHER,RUBBER

5410436

$1.59

10

BOLT(10)

7515316

$2.38

11

BOLT(10)

7512666

$2.38

11

BOLT(10)

7512666

$2.38

12

PLUG, CLEANOUT

7052083

Unavailable

13

SCREW(10)

7515140

$3.17

13

SCREW(10)

7515140

$3.17

14

BOLT, BLACK(10)

7512282

Unavailable

15

HEATSHIELD ASM.

1260717

Unavailable

16

RIVET(50)

7621462

$1.19

17

SCREW(10)

7512252

Unavailable

18

BRKT,HEAT SHIELD,BLK.

5240594-067

$4.10

19

SPRING, EXHAUST(10)

7042031

$6.46

20

HEADPIPE WELD.

1260549-029

Unavailable

21

SPRING-EXHAUST(10)

7042029

$5.65

22

EXHAUST WELD,BLK,(350)

1260588-029

Unavailable

23

MANIFOLD, BLK.

1260543-029

Unavailable

24

Washer, Spring (See Pg. A40, Ref. 10)

----

Unavailable

25

Nut (See Pg. A40, Ref. 9)

----

Unavailable
