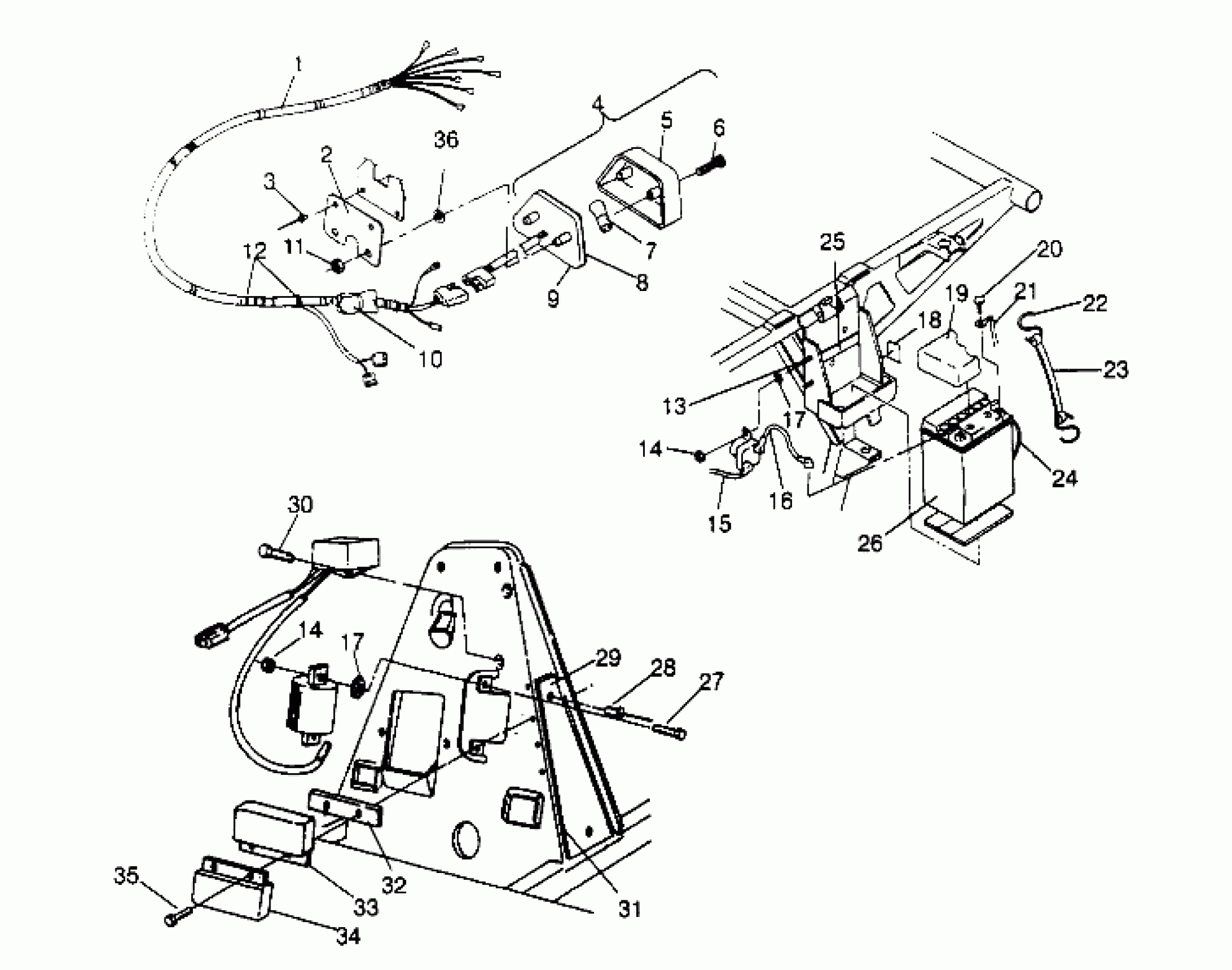

Polaris SPORT 400L - W958540 ELECTRICAL/TAILLIGHT ASSEMBLY Sport 400L W958540 (4930133013C006) Diagram

#

Description
Price

1

HARNESS,MAIN WIRE

2460488

Unavailable

2

ISOLATOR,TAILLIGHT

5211391-067

$13.39

3

RIVET(50)

7621470

$3.17

4

TAIL LIGHT ASM.

2432034

$55.99

5

LENS,TAILLIGHT

4032046

$32.37

6

Screw, Taillight

4032029

$4.79

7

BULB,TAILLIGHT

4030043

$6.46

8

GASKET,TAILLIGHT

4032045

$4.03

9

BACKING,TAILLIGHT

4032064

$83.99

10

CKT.BREAKER,20 AMP.

2434012

$38.89

11

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

SCREW(10)

7512027

$1.49

14

NUT(10)

7541925

$1.49

14

NUT(10)

7541925

$1.49

15

CABLE,SOLENOID/STARTER

4010064

Unavailable

16

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

17

WASHER(10)

7571602

$4.79

17

WASHER(10)

7571602

$4.79

18

DECAL, BATTERY [No Longer Available]

7072606

Unavailable

19

COVER,BATTERY

5431769

$14.39

20

BOLT,BATT,KIT(SHORT) (Short)

2200361

$3.99

21

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

22

HOOK-BATT.H/D(10)

7010032

$1.59

23

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

24

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

25

PAD-BATTERY

5810290

$7.27

26

Battery

4140006

$99.99

27

SCREW(10)

7512007

$3.99

28

RIVET, POP(50)

7621322

$0.56

29

BOARD,TERMINAL

4040056

Unavailable

30

BOLT(10)

7512232

$1.49

31

SHIELD,TERM.BOARD

5431152

Unavailable

32

HEAT SINK

5210650

Unavailable

33

RECTIFIER, VOLTAGE

4060087

Unavailable

34

LIMITER,REV,LR49

4060114

Unavailable

35

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

36

WASHER,NYLON(10)

7555916

$1.59
