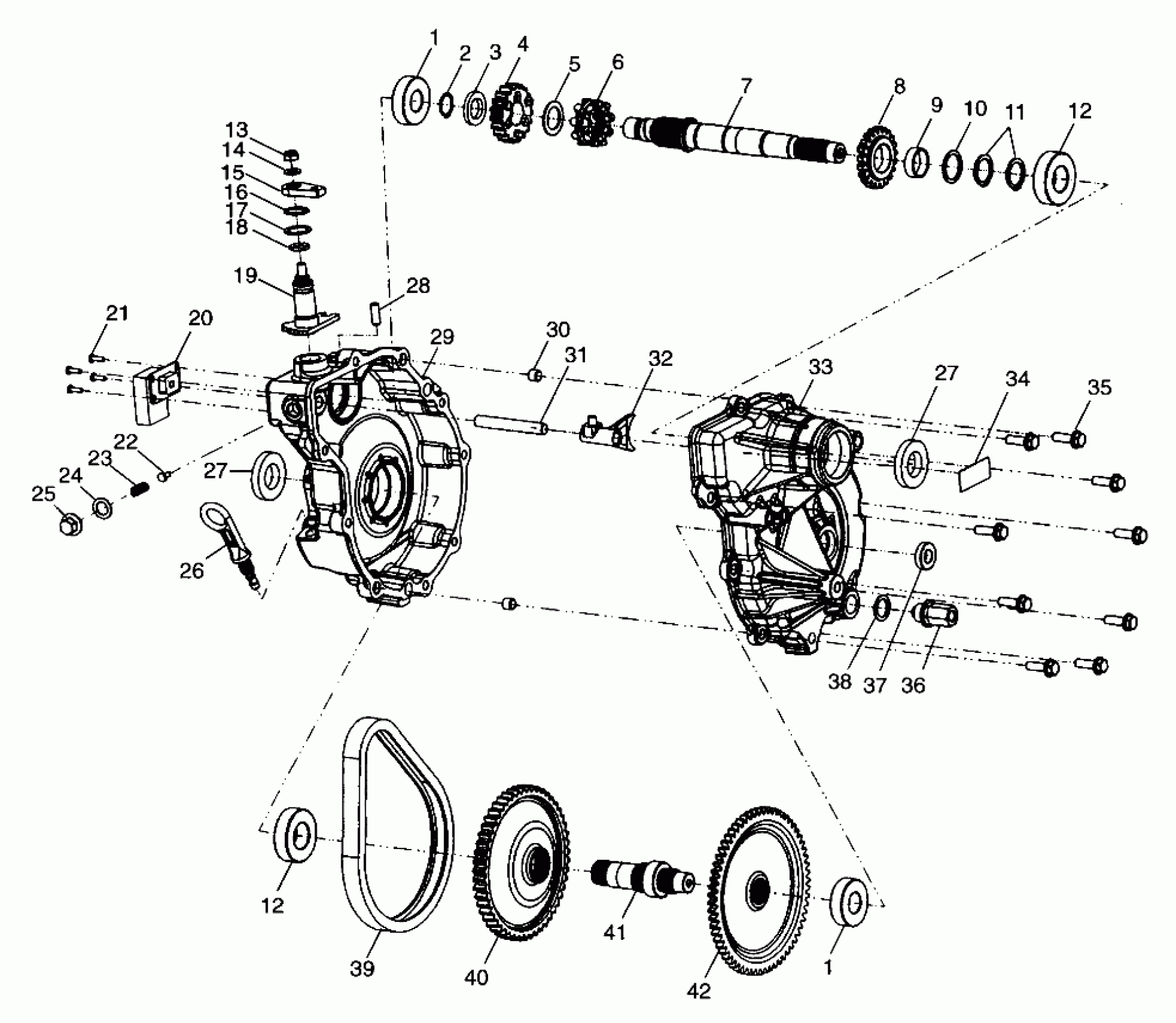

Polaris SPORT 400 - A99BA38CA GEARCASE - A99BA38CA (4949534953c009) Diagram

#

Description
Price

-

GEARCASE,HR,HYBRID 2X4 (Incl. 1-42)

1341274

Unavailable

1

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

1

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

2

RING,RETAINING

3233177

$6.39

3

WASHER-THRUST

3233673

$13.59

4

SPROCKET-19T

3233674

$92.39

5

Washer

3233010

Unavailable

6

ENGAGEMENT DOG-HIGH/REV

3233675

Unavailable

7

SHAFT INPUT,HYBRID

3233676

$214.99

8

GEAR,21T

3233677

$198.32

9

Bushing

3233678

$31.99

10

Washer

3233105

$7.19

11

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

12

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

12

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

13

Nut

3233055

Unavailable

14

Washer

3233054

$6.46

15

Bellcrank

3233153

$27.99

16

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

17

Washer

3233040

$9.59

18

O-Ring

3233548

$27.99

19

SHIFT-SHAFT

3233679

$162.79

20

SWITCH-H/R,ITW

3233635

Unavailable

21

SCREW,TAP

3233616

Unavailable

22

BULLET-SHIFTING

3233680

$23.99

23

SPRING-COMPRESSION

3233681

$26.39

24

Washer

3233324

$8.99

25

PLUG,DETENT

3233682

$35.99

26

Dipstick

3233478

$23.99

27

Seal

3233248

$30.88

27

Seal

3233248

$30.88

28

TUBE,VENT

3233524

$7.19

29

GEARCASE-RH

3233683

Unavailable

30

PIPE,KNOCK

3233529

$7.99

31

SHAFT-SHIFT

3233684

Unavailable

32

SHIFT-FORK

3233685

Unavailable

33

GEARCASE-LH

3233686

Unavailable

34

DECAL-SWITCH

3233636

Unavailable

35

Screw

3233252

$5.27

36

PLUG,TORQUE STOP

3233687

$92.39

37

BUSHING,PIVOT

3233527

$35.19

38

Washer

3233035

Unavailable

39

CHAIN,SILENT,60P

3233111

$79.19

40

SPROCKET-51T

3233688

Unavailable

41

OUTPUT-SHAFT

3233689

$189.18

42

GEAR,64T

3233690

$251.99
