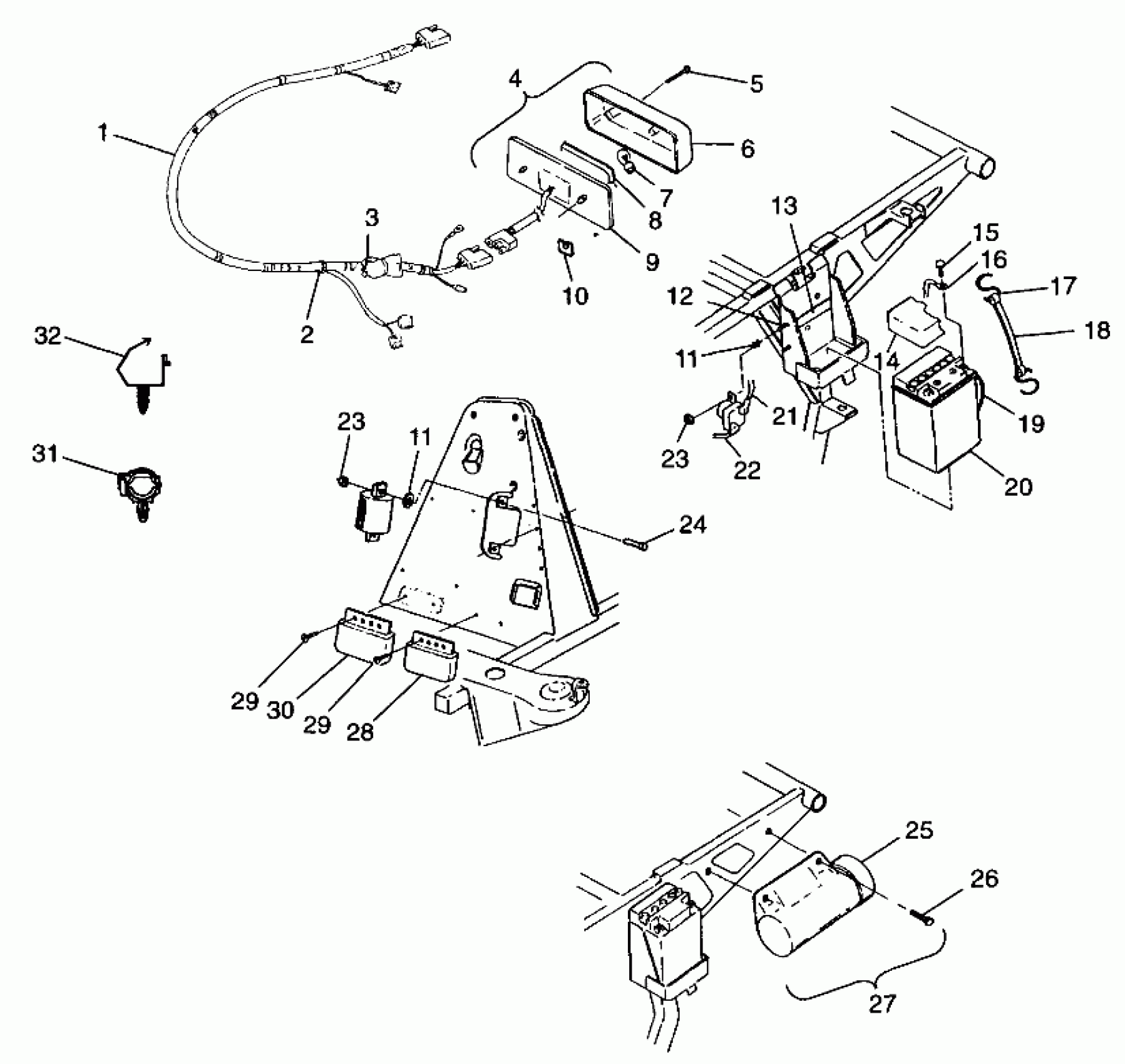

Polaris SPORT 400 - A99BA38CA ELECTRICAL/TAILLIGHT - A99BA38CA (4949534953c003) Diagram

#

Description
Price

1

HARNESS-MAIN,CONNECTOR,SPORT

2460707

Unavailable

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

KIT,CKT.BRKR,20 AMP

2200593

$68.79

4

LIGHT,TAIL/BRAKE

2432038

$84.98

5

SCREW,TAIL LIGHT

7512088

$1.64

6

LENS,STOP&T/L.

4032085

$36.41

7

BULB,TAILLIGHT

4030043

$6.46

8

GASKET,T/L&STOP/L

4032086

Unavailable

9

BACKING,(STOP&TAIL)

4032087

Unavailable

10

CLIP, RETAINER(10)

7670093

Unavailable

11

WASHER(10)

7571602

$4.76

11

WASHER(10)

7571602

$4.76

12

SCREW(10)

7512027

$1.19

13

PAD-BATTERY

5810290

$7.27

14

COVER,BATTERY

5431769

$15.37

15

BOLT,BATT,KIT(SHORT)

2200361

Unavailable

16

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

17

HOOK-BATT.H/D(10)

7010032

$1.59

18

STRAP,BATTERY HOLDDOWN

5410424

$4.84

19

TUBE,BATTERY VENT

5432077

$8.89

20

Battery

4140006

$99.99

21

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

22

CABLE-RED,SOL/STRTR,DBLBOOT34"

4010218

$48.56

23

NUT(10)

7541925

$0.79

23

NUT(10)

7541925

$0.79

24

SCREW(10)

7512007

$3.97

25

LID COVER,TOOLBOX Substituted by 2620087

5431973

Unavailable

25

GASKET,TOOLBOX LID

5811079

Unavailable

26

BOLT(10)

7512232

$1.19

27

TOOLBOX ASM. Substituted by 2632221 (Incl. 25 and Gasket)

2620087

Unavailable

28

RECTIFIER/REGULATOR,LR39-1

4060208

Unavailable

29

SCREW,(10)

7512024

$4.76

29

SCREW,(10)

7512024

$4.76

30

LIMITER-RPM,94 HZ,LR491

4010186

$81.75

31

CLIP-ROUTING

7670109

$2.38

32

CLIP,ROSEBUD

4020149

$6.35
