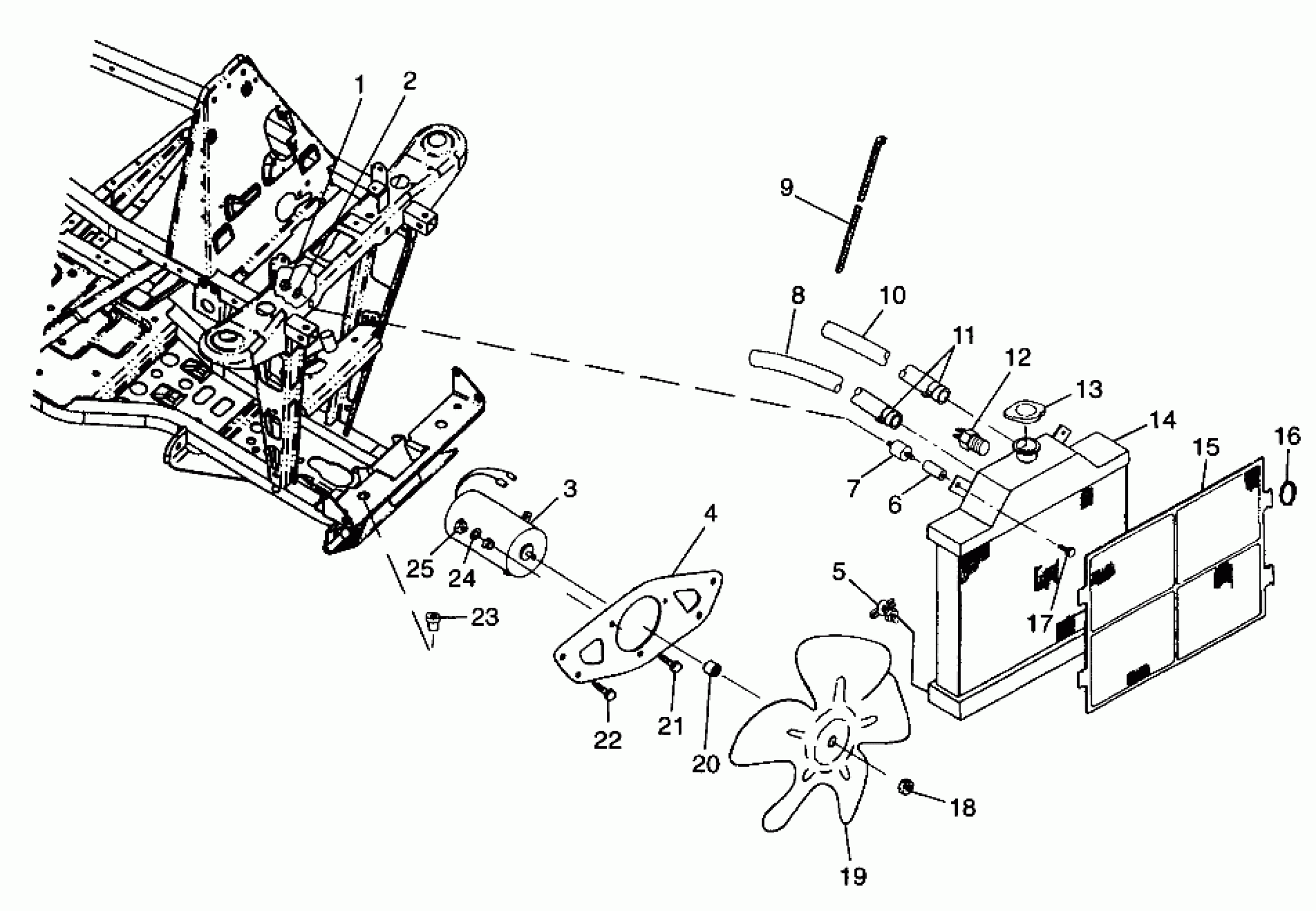

Polaris SPORT 400 - A99BA38CA COOLING SYSTEM - A99BA38CA (4949534953c005) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542122

$1.49

2

WASHER(10)

7558301

$1.49

3

MOTOR,FAN,LQ,W/CONNECTOR

4170011

Unavailable

4

BRKT.COOL.FAN,BLK

5241355-067

Unavailable

5

VALVE,DRAIN COCK

7052181

Unavailable

6

SPACER,RADIATOR MNT

5020937

Unavailable

7

Mount, Rubber

3110032

$7.99

8

Hose, Engine, Upper (See Footnote) (See Engine Mounting Pg. A10, Ref. 12)

-------

Unavailable

9

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

10

Hose, Engine, Lower (See Footnote) (See Engine Mounting Pg. A10, Ref. 14)

-------

Unavailable

11

CLAMP,HOSE,(10)

7080614

$7.19

12

SWITCH,THERMAL,FAN,L/C

4110226

Unavailable

13

CAP, RADIATOR Substituted by 2511270

2511189

Unavailable

14

RADIATOR,"U"FLOW

1240015

Unavailable

15

COVER,RADIATOR,W/MESH

5431610

Unavailable

16

O RING

5410607

$5.99

17

SCREW(10)

7515133

$3.99

18

NUT

7542154

Unavailable

19

BLADE, FAN

5240822

$57.59

20

SPACER

5333457

Unavailable

21

SCREW(10)

7511875

$4.79

22

BOLT(10)

7512232

$1.49

23

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

24

WASHER, FLAT(10)

7558201

$5.79

25

Nut

7547004

$4.79
