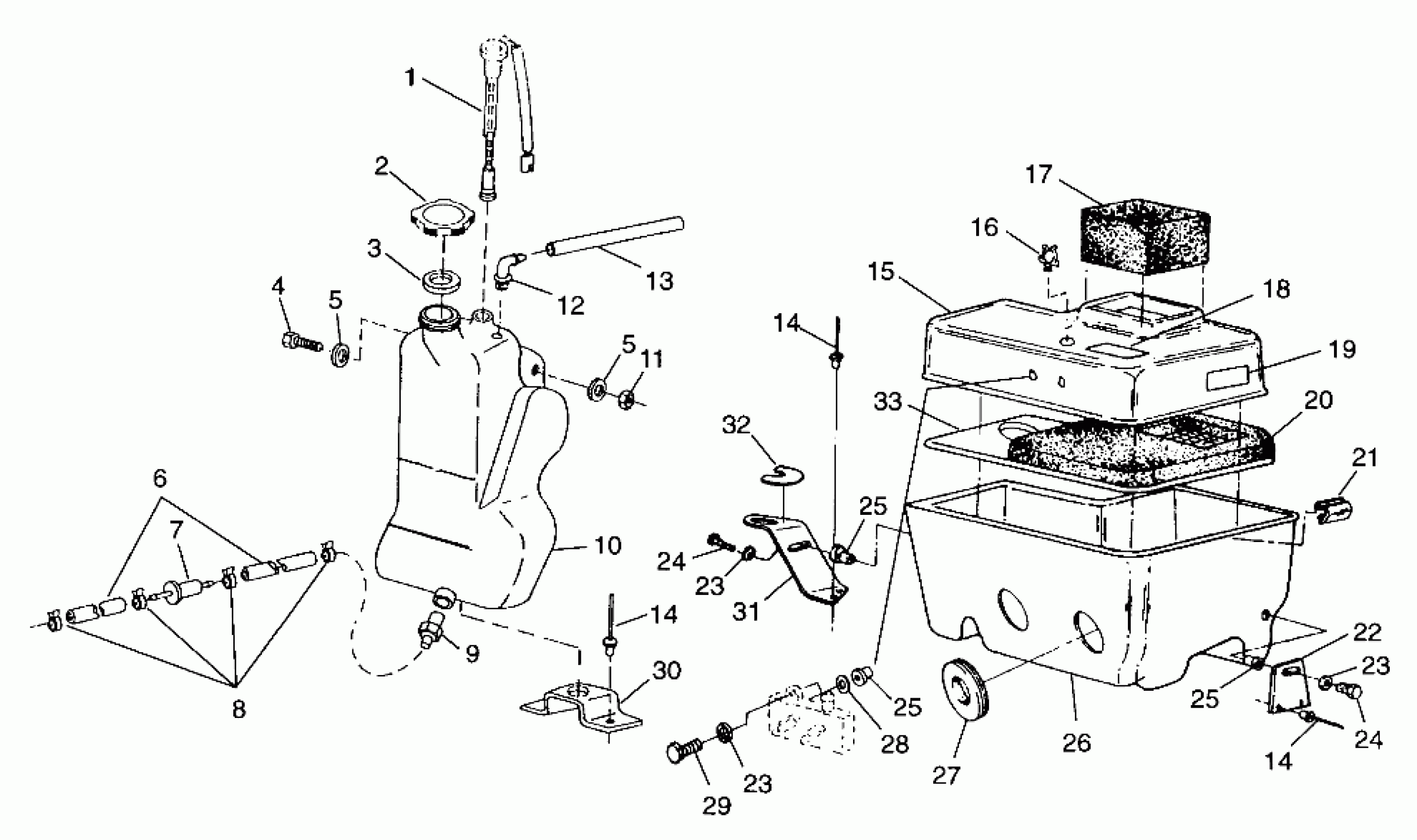

Polaris SPORT - 099SB4DS OIL TANK / AIR BOX - 099SB4DS (4948274827c001) Diagram

#

Description
Price

1

SENSOR,OIL LEVEL,W/CONN.

4040040

$72.84

2

CAP,OIL TANK

5430779

$14.56

3

GASKET-OIL CAP

5810141

$2.39

4

BOLT(10)

7512240

$3.99

5

WASHER,WROUGHT(10)

7558302

$1.59

5

WASHER,WROUGHT(10)

7558302

$1.59

6

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

7

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

8

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

9

FITTING, OUTLET

7052042

$8.99

10

Tank, Oil

5431437

Unavailable

11

NUT-LOCK(10)

7542122

$1.49

12

FITTING,90 DEG,1/8,(10)

7052095

$4.79

13

FUELLINE,3MMX7MM

8450061-600

Unavailable

14

RIVET-3/16-.090-.290

7661637

$1.49

14

RIVET-3/16-.090-.290

7661637

$1.49

14

RIVET-3/16-.090-.290

7661637

$1.49

15

COVER,SILENCER,DRILLED

5432802

$10.65

16

CLIP, PLASTIC(10)

4020139

$4.79

17

FOAM,AIRBOX CHIMNEY,HYB.

5811628

$36.41

18

DECAL,CAUTION,AIRBOX

7075351

Unavailable

19

DECAL, GREASING [No Longer Available]

7073426

$7.27

20

BAFFLE ASM. (Incl. 33)

1253102

$64.75

21

CLIP, AIR BOX,(10)

7670055

$7.99

22

BRACKET, SILENCER

5211274

$9.70

23

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

23

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

23

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

24

SCREW(10)

7512279

$1.49

24

SCREW(10)

7512279

$1.49

25

NUT-WELL(10)

7541923

$5.59

25

NUT-WELL(10)

7541923

$5.59

25

NUT-WELL(10)

7541923

$5.59

26

SILENCER,INTAKE,DRILLED

5432137

Unavailable

27

BOOT

5410403

$12.99

28

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

29

SCREW(10)

7512222

$2.39

30

BRKT,OILTANK,COINED

5241334

$9.70

31

BRKT,AIR SILENCER,W/TAB,BLK.

5240824-067

Unavailable

32

DECAL,SHUT-OFF VALVE [No Longer Available]

7072151

Unavailable

33

PLATE,AIR SILENCER

5850075

$24.27
