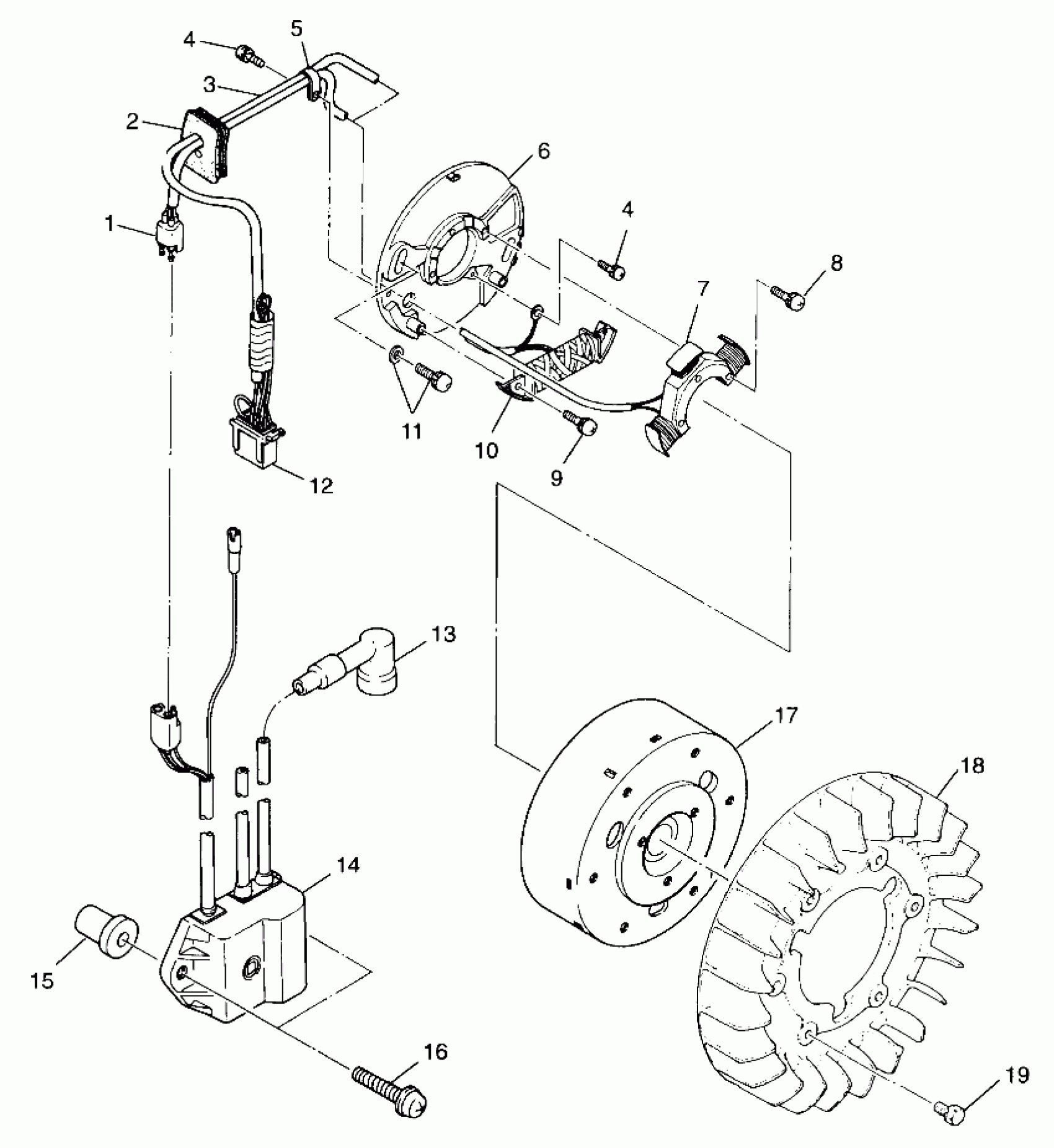

Polaris SPORT - 099SB4DS MAGNETO - 099SB4DS (4948274827c008) Diagram

#

Description
Price

1

COUPLER

3083909

$23.99

2

Grommet

3082969

Unavailable

3

HARNESS, WIRE (Incl. 2)

3084289

Unavailable

4

SCREW&WASHER,(10)

3081260

$3.19

4

SCREW&WASHER,(10)

3081260

$3.19

5

Clamp

3081296

Unavailable

6

Plate, Coil

3083987

$364.99

6

PLATE ASM. (Incl. 1-10,12)

3083990

Unavailable

7

Stator 1

3083991

$339.99

8

SCREW(10)

3082365

$3.19

9

SCREW & WASHER

3083423

$3.19

10

Coil, Exciter

3083984

$89.03

11

SCREW&WASHER,(10)

3082175

Unavailable

12

COUPLER,MALE

3081513

$19.99

13

CAP SPARK PLUG,(10)

4020129

$9.70

14

CDI UNIT

3084007

Unavailable

15

NUT-RUBBER

3083240

Unavailable

16

SCREW&WASHER,(10)

3083784

$2.39

17

FLYWHEEL ASM. (Incl. 18,19)

3084006

Unavailable

18

BLOWER

3083560

Unavailable

19

BOLT&WASHER ASM.

3085660

$1.49
