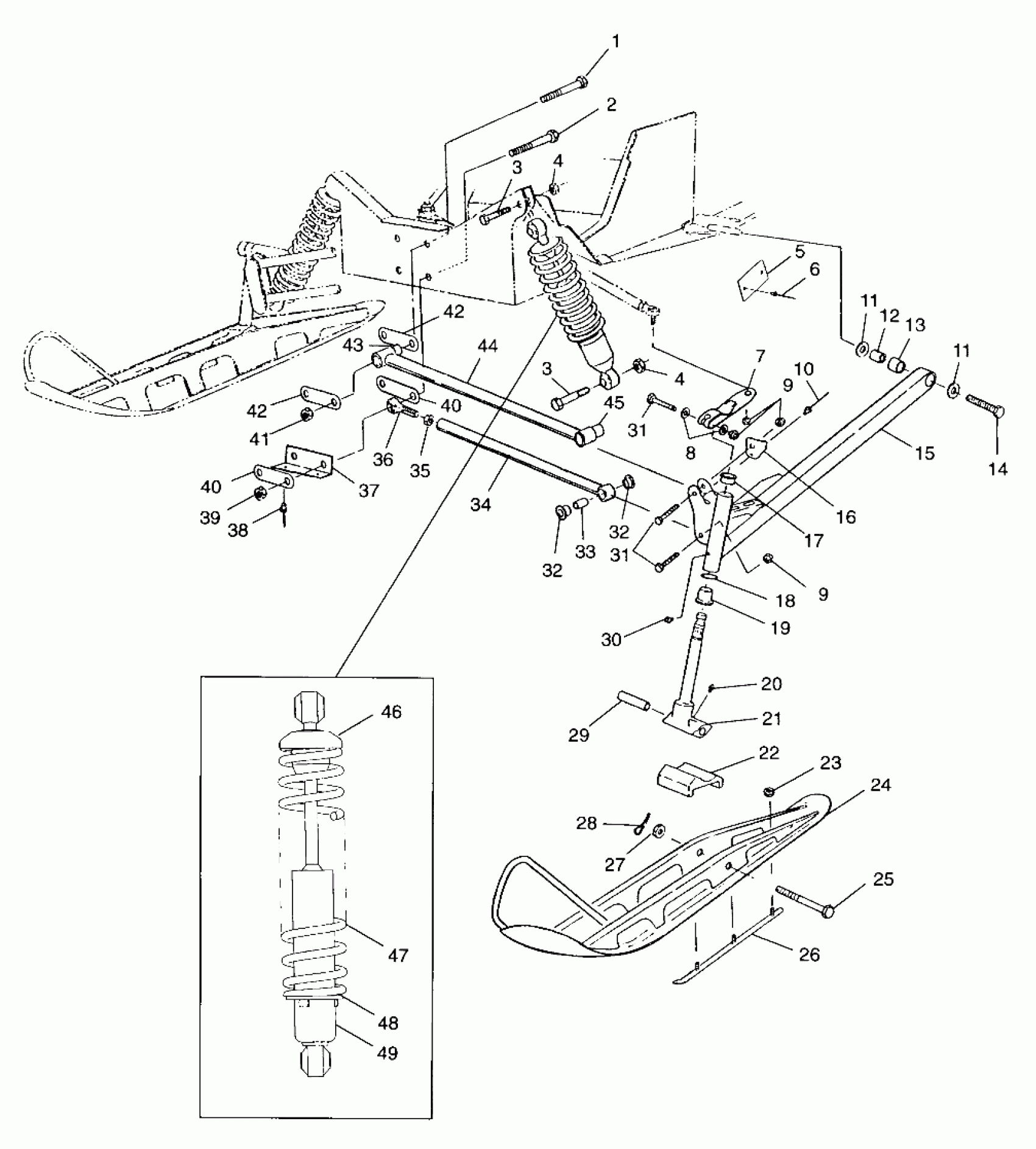

Polaris SPORT - 099SB4DS FRONT SUSPENSION and SKI - 099SB4DS (4948274827b001) Diagram

#

Description
Price

1

BOLT(10)

7512582

$8.79

2

BOLT(10)

7512684

Unavailable

3

BOLT(10)

7515415

$1.49

3

BOLT(10)

7515415

$1.49

4

NUT-LOCK(10)

7542439

$1.49

4

NUT-LOCK(10)

7542439

$1.49

5

PLATE,TORS.BAR,HOLE

5211771

$4.78

6

RIVET-3/16-.090-.290

7661637

$1.49

7

ARM,STRG,BLK

5241560-067

Unavailable

8

WSHR-.813X.406X.105-Y

7555832

$2.39

9

NUT LOCK(10)

7542403

$3.99

9

NUT LOCK(10)

7542403

$3.99

10

RIVET(50) Substituted by 7661130

7661643

Unavailable

11

WASHER(10)

7555721

$1.49

11

WASHER(10)

7555721

$1.49

12

TUBE, BUSHING

5010310

$9.70

13

PIVOT,TRLG.ARM,RUBBER

5410872

$10.99

14

BOLT(10)

7512557

$7.60

15

ARM ASM,TRLG,LH Substituted by 1822506-067 (Incl. 12,13)

1822506

$344.99

15

ARM ASM,TRLG,RH Substituted by 1822507-067 (Incl. 12,13)

1822507

Unavailable

16

STOP,LH,STRG,BLK.

5241569-067

$7.27

16

STOP,RH,STRG,BLK.

5241570-067

$7.27

17

BUSHING-FLANGE

3573909

$2.39

18

WASHER SPECIAL(10)

7556509

$1.59

19

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

20

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

21

SHAFT,SPINDLE,TRLG,BLK

6230102-067

$294.99

22

Stop, Rubber

5411083

$12.94

23

NUT-5/16-18 NYLOK-Y

7542324

$1.49

24

SKI WELD

1820430-067

Unavailable

25

BOLT(10)

7515462

$8.79

26

SKAG,SHORT(20)

1820267

$23.99

27

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

28

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

29

BUSHING,PIVOT,(10)

5010158

$19.99

30

ZERK,FITTING,THREADED(10)

7080433

$1.49

31

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

31

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

32

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

32

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

33

BUSHING-RADIUS ROD,(10)

5010127

$7.99

34

ROD,RAD,LOWER,BLK

1822410-067

Unavailable

35

NUT-JAM(10)

7542711

$2.39

36

ROD END Substituted by 7061027

7060162

$48.56

37

BRKT,RAD.ROD,BTM.

5242578

$44.99

38

RIVET,INTERLOCK,B(50)

7661638

$1.49

39

NUT FLEX,(10)

7542703

Unavailable

40

STRAP,SPACER BOTTOM

5211345

$12.99

40

STRAP,SPACER BOTTOM

5211345

$12.99

41

NUT, LOCK,(10)

7542503

$10.39

42

STRAP,SPACER TOP

5211344

$7.27

42

STRAP,SPACER TOP

5211344

$7.27

43

BUSHING,PIVOT,7/16

5411095

$15.99

44

ROD,RAD.UPPER,FIXED (Incl. 43,45)

1822435

$49.21

45

BUSHING,RAD.ROD PIVOT,3/8

5411099

$11.99

46

RETAINER-TOP

5220225

$10.39

47

SPRING,COMP.,BLK.

7041261-067

$164.99

48

SPACER,SHOCK RETAINER(10)

5210953

$6.39

49

SHOCK,IFS

7041748

$95.24
