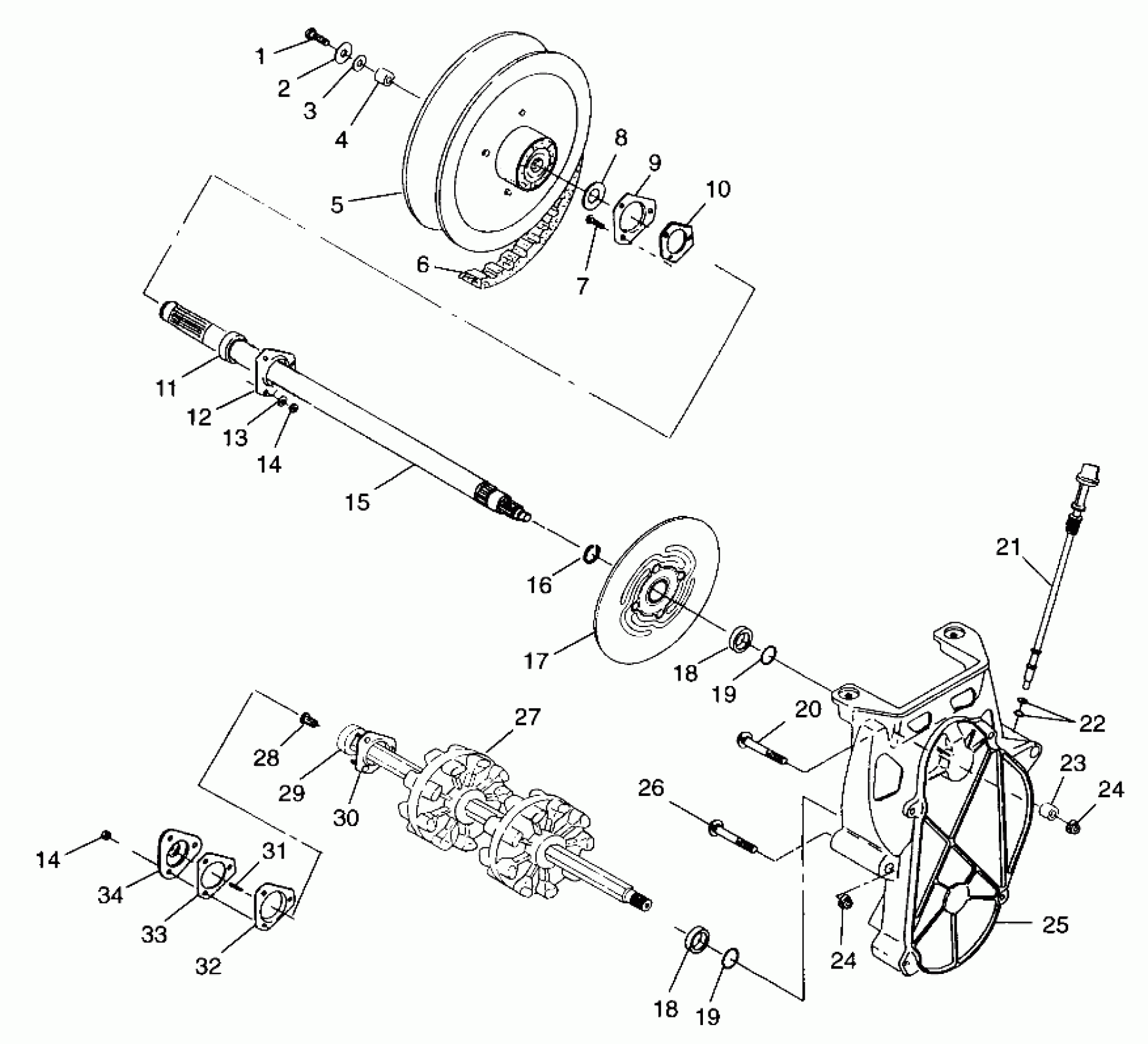

Polaris SPORT - 099SB4DS DRIVE TRAIN - 099SB4DS (4948274827b006) Diagram

#

Description
Price

1

BOLT(10)

7515369

$4.79

2

WASHER FLAT(10)

7555701

$3.99

3

WASHER(10)

7555734

Unavailable

4

SPACER,DRIVEN CLUTCH

5020645

Unavailable

5

Driven Clutch (See Footnote) (See Driven Clutch Pg. B12 For Details)

-------

Unavailable

6

BELT, DRIVE(5)

3211059

$79.99

7

BOLT(10)

7512377

$4.79

8

WASHER SPECIAL(10)

7556509

Unavailable

9

FLANGETTE

5240252

Unavailable

10

GASKET,JACKSHAFT,BLK.

5811095

$2.41

11

BEARING

3514525

$31.99

12

FLANGETTE

5222751

$16.44

13

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

14

NUT-5/16-18 NYLOK-Y

7542324

$1.49

14

NUT-5/16-18 NYLOK-Y

7542324

$1.49

15

JACKSHAFT,P-90,15T,W/BRG (Incl. 11,16)

1332172

$161.89

16

RING, RETAINING(10)

7710422

$3.99

17

DISC ASM,BRAKE,SLOTTED,SNO Substituted by 1910403

1910276

Unavailable

18

SLEEVE, SEAL

5020588

$23.99

18

SLEEVE, SEAL

5020588

$23.99

19

O RING,(10)

5410613

$1.99

19

O RING,(10)

5410613

$1.99

20

BOLT(10)

7515474

$3.33

21

DIPSTICK Substituted by 1332143

5431419

Unavailable

22

O-RING

5410675

$1.60

23

TUBE, SPACER

5333082

Unavailable

24

NUT(10)

7542423

$3.99

24

NUT(10)

7542423

$3.99

25

Cover, Chaincase (See Footnote) (See Chaincase Pg. B5, Ref. 13)

-------

Unavailable

26

BOLT(10)

7515428

$4.79

27

DRIVESHAFT ASM,2 DR.W/BEARING Substituted by 1590283 (Incl. 28,29,30)

1590271

Unavailable

28

BUSHING METAL SPEEDO

3280019

$11.99

29

BEARING,LUBE. Substituted by 3514525

3514526

$31.75

30

FLANGETTE ASM,,W/ SCREWS Substituted by 1012945

1012434

Unavailable

31

SQ. KEY SPEEDOMETER,(10)

3280017

$13.75

32

FLANGETTE Substituted by 5243529

5241178

$13.75

33

GASKET,DRIVE ADAPTOR,(10)

5830012

$2.41

34

ADAPTER,DRIVE,W/ZERK

3280116

$101.17
