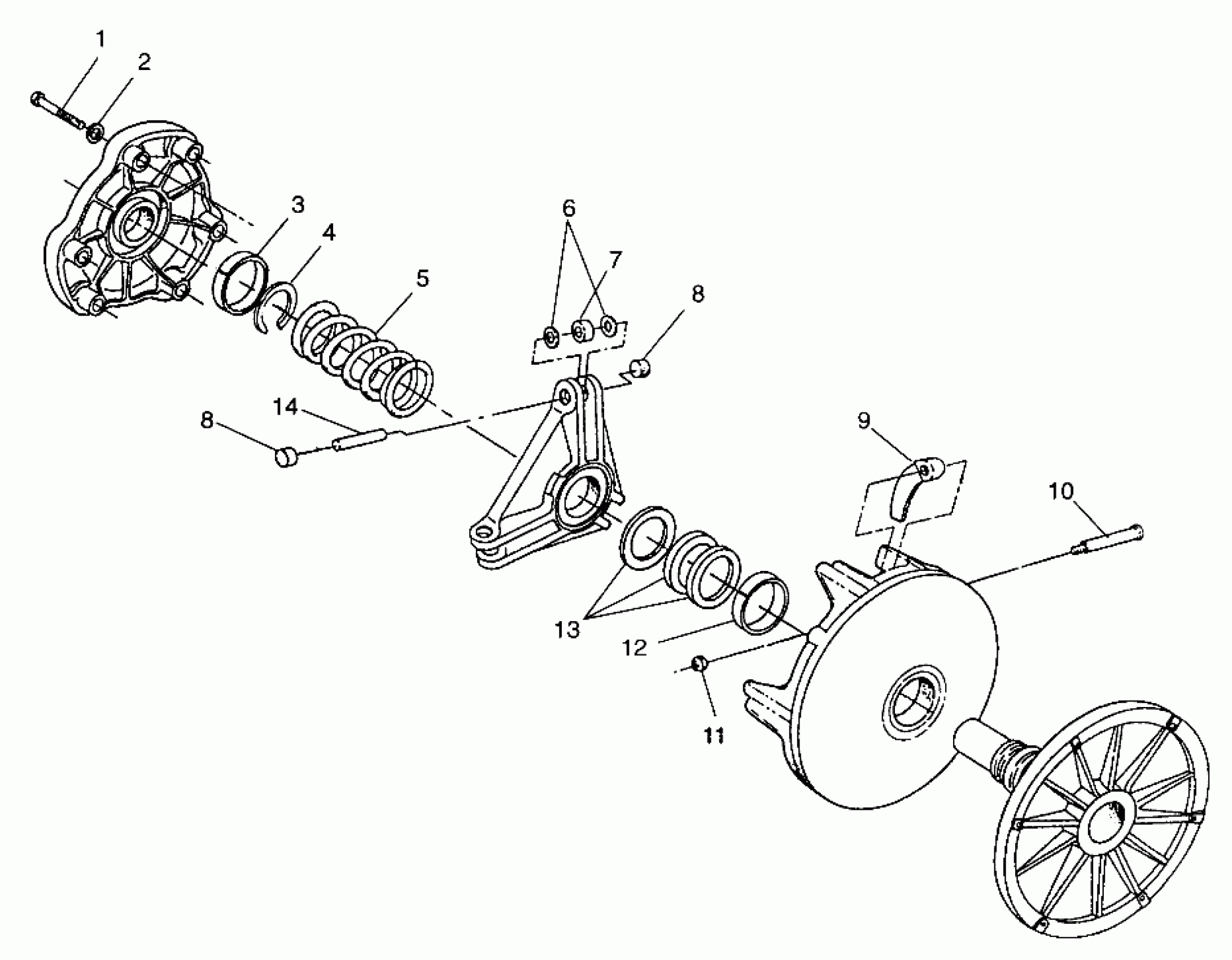

Polaris SPORT - 099SB4DS DRIVE CLUTCH - 099SB4DS (4948274827b011) Diagram

Description

Price

CLUTCH,BASIC,#42(DRIVE) (Incl. 1-4,6-8,10-14)

1321596

Unavailable

DESC NOT_AVAILABLE (Incl. 6,7,8,14)

2201314

Unavailable

BOLT,(10)

7512265

$3.99

LOCK WASHER(10)

7552801

$1.59

COVER,BEARING,GARMAX

3576516

$28.32

RING-RETAINING,COVER

7710417

$1.49

SPRING-RED&WHITE

7041150

$64.99

WASHER,MULTILUBE

5430945

$1.59

ASM-ROLLER AND BUSHING

1321457

$40.46

BUTTON, GUIDE,(10)

5430445

$6.39

BUTTON, GUIDE,(10)

5430445

$6.39

WT/BUSH.ASM,10 A-L(6) (10 A-L)

1321531

$54.99

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

NUT FLEX LOC(10)

7541906

$3.19

BUSHING, DRIVEN

3576504

$23.99

SPACER(10) (.050")

5210754

Unavailable

SPACER(10) (.025")

5242981

Unavailable

SPACER(10) (.020")

5210752

Unavailable

SPACER(10) (.032")

5210753

Unavailable

PIN-ROLLER

5020422

$2.39
