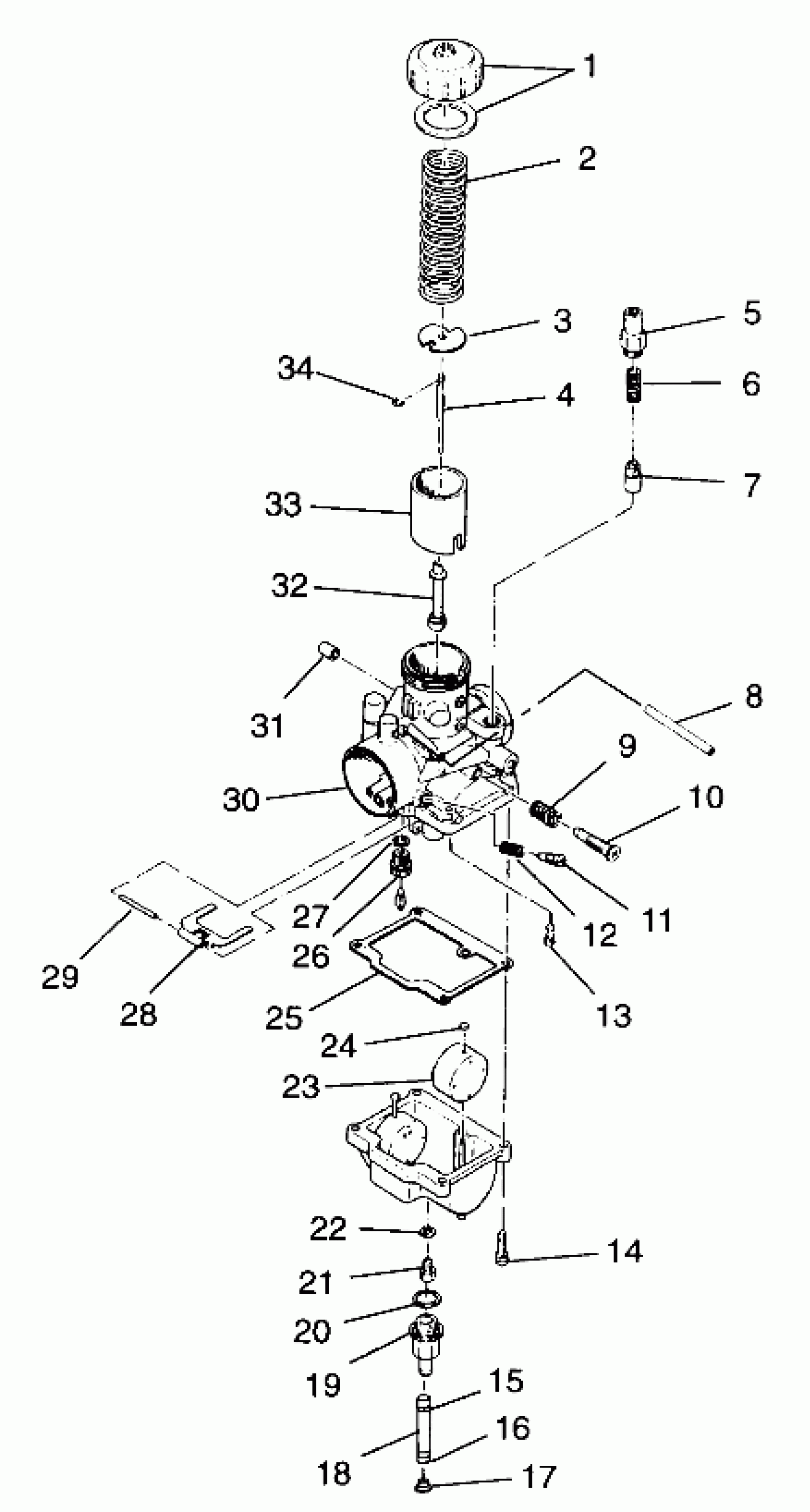

Polaris SPORT - 099SB4DS CARBURETOR - 099SB4DS (4948274827c005) Diagram

#

Description
Price

1

TOP ASM (Incl. Gasket)

3130184

$32.37

2

SPRING, THROTTLE

3130318

$20.22

3

PLATE

3130027

$9.70

4

JET NEEDLE,(6FJ6-3) (6FJ6-3)

3130481

Unavailable

5

HOLDER,GUIDE

3130199

$28.32

6

SPRING,PLUNGER

3130006

$8.89

7

PLUNGER ASM, STARTER

3130328

$32.37

8

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

9

SPRING,THROTTLE ADJ.

3130010

$8.89

10

SCREW,THROTTLE STOP

3130009

$19.99

11

SCREW,AIR

3130011

$19.99

12

SPRING,AIR ADJUST

3130012

$8.89

13

JET,PILOT,#35(10) (#35)

3130066

$8.89

14

SCREW & WASHER(10)

3130025

$3.19

15

CLAMP,SPRING,(10)

7080534

$1.59

16

CLAMP,HOSE(10)

7080544

Unavailable

17

PLUG,TRAP

5431893

$12.94

18

FUEL LINE, 5 FT.

8450045-153

Unavailable

19

FITTING,SEDIMENT Substituted by 3130573

5020476

$10.63

20

O RING

3130239

Unavailable

21

JET,MAIN,HX.HD.#185(10) (#185)

3130120

$7.27

22

WASHER (10)

3130014

$1.59

23

FLOAT ASM.

3130430

$43.56

24

CAP,(10)

3130237

$4.03

25

PACKING,FLOAT CHAMBER

3130020

$16.17

26

VALVE,NEEDLE Substituted by 3131146 (1.5)

3130016

$48.56

27

PACKING(10)

3130017

$4.03

28

ARM,FLOAT

3130018

$24.27

29

PIN, FLOAT

3130361

$8.89

30

CARBURETOR ASM. (Incl. 1-14,19-34)

3130547

Unavailable

31

CAP

3130479

$14.56

32

NEEDLE JET (166)

3130421

Unavailable

33

VALVE,THROTTLE,2.0 (2.0)

3130464

Unavailable

34

E-RING,(10)

3130508

$6.46
