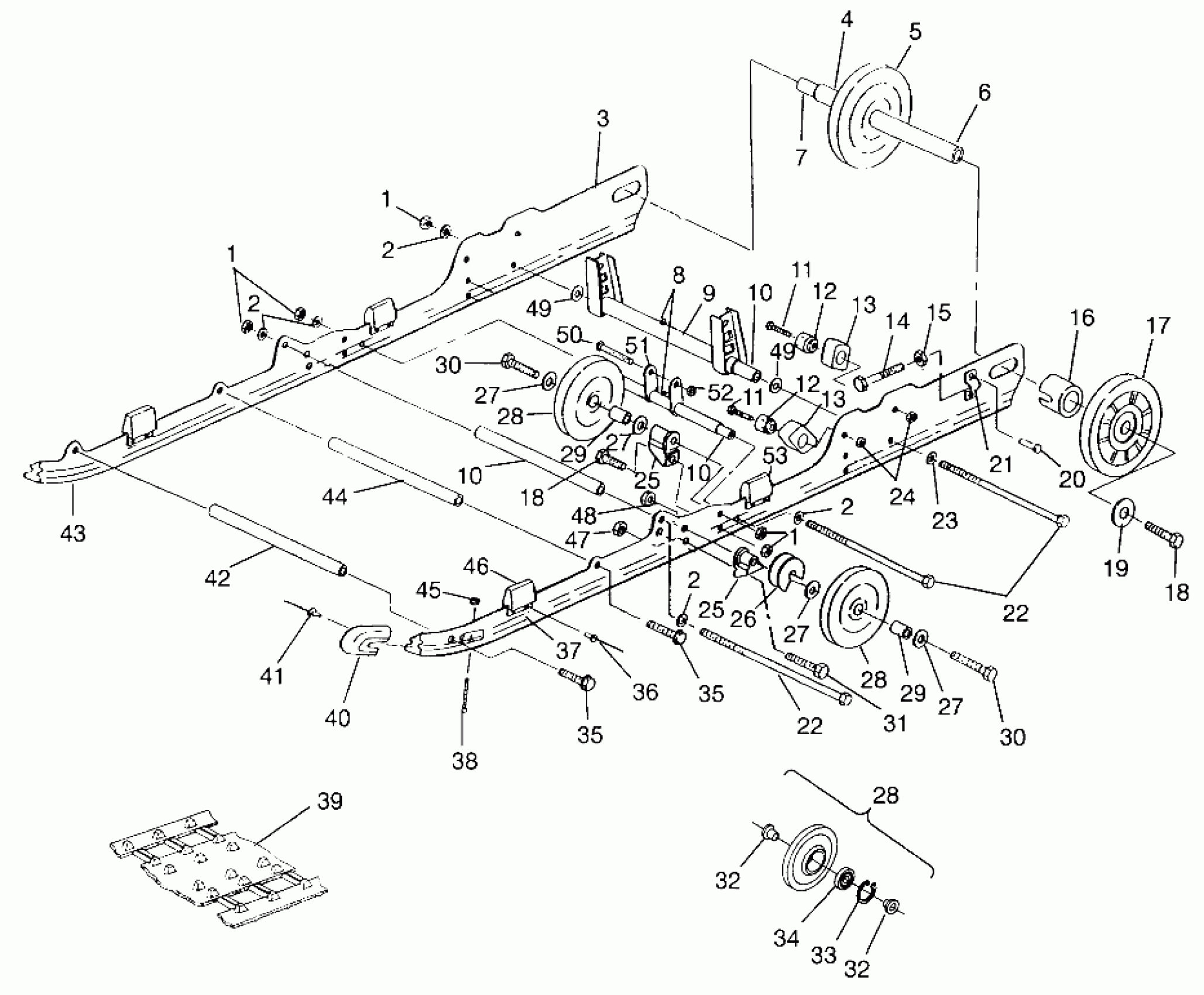

Polaris SPORT - 0960443 SUSPENSION SPORT TOURING 0960243 and EUROPEAN SPORT TOURING E960243 (4932223222B013) Diagram

#

Description
Price

1

NUT LOCK(10)

7542411

$3.19

1

NUT LOCK(10)

7542411

$3.19

1

NUT LOCK(10)

7542411

$3.19

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

3

RAIL ASM,RH,133"

1540947

$339.99

3

RAIL ASM,LH,133"

1540946

$269.55

4

SPACER INNER IDLER

5010169

Unavailable

5

WHEEL, IDLER Substituted by 1594079-070

1594021

Unavailable

6

SPACER,IDLER,R.INNER

5333086

Unavailable

7

SHAFT,IDLER

5020722

Unavailable

8

ZERK,FITTING,THREADED(10)

7080433

$1.49

9

ARM,R.PIVOT

1540981-067

Unavailable

10

SHAFT

5333404

$24.27

10

SHAFT

5333404

$24.27

10

SHAFT

5333404

$24.27

11

BOLT(10)

7515537

$10.99

11

BOLT(10)

7515537

$10.99

12

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

12

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

13

BUMPER,F.PIVOT ARM

5410925

$12.94

13

BUMPER,F.PIVOT ARM

5410925

$12.94

14

BOLT, ADJUSTER(10)

7515455

$29.99

15

NUT(10)

7542440

Unavailable

16

SPACER-IDLER-OUTER

5332641

Unavailable

17

WHEEL,IDLER,PURPLE"C"

1594060

Unavailable

18

BOLT(10)

7515526

$1.19

18

BOLT(10)

7515526

$1.19

19

WASHER(10) Substituted by 7556130

7571629

Unavailable

20

RIVET,(50)

7621501

$2.39

21

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

22

SCREW Substituted by 7517353

7515549

Unavailable

22

SCREW Substituted by 7517353

7515549

Unavailable

23

WASHER(10)

7552603

$1.49

24

NUT LOCK(10)

7542403

$3.99

25

SPACER

5630399

$11.99

25

SPACER

5630399

$11.99

26

ROLLER, SPRING

5431366

$10.51

27

WASHER, FLAT(10)

7555852

$2.39

27

WASHER, FLAT(10)

7555852

$2.39

27

WASHER, FLAT(10)

7555852

$2.39

27

WASHER, FLAT(10)

7555852

$2.39

28

WHEEL, IDLER

1543018

$56.65

28

WHEEL, IDLER

1543018

$56.65

28

WHEEL, IDLER

1543018

$56.65

29

SPACER, WHEEL

5333116

$7.99

29

SPACER, WHEEL

5333116

$7.99

30

BOLT(10)

7512538

$6.39

30

BOLT(10)

7512538

$6.39

31

BOLT(10)

7512404

$3.99

32

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

32

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

33

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

34

BEARING (1 per Wheel)

3514303

$11.99

35

BOLT

7515542

Unavailable

35

BOLT

7515542

Unavailable

36

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

37

REINF., BUMPER

5222629

$13.75

38

BOLT(10)

7515175

$3.99

39

TRACK Substituted by 5411091

5411019

Unavailable

40

COVER, RAIL TIP Substituted by 5433005

5431421

Unavailable

41

RIVET(50)

7621435

$1.49

42

SHAFT,PIVOT ARM

5020723

$29.99

43

SLIDER,BLACK(2)

5521320

Unavailable

44

SHAFT,PIVOT ARM

5020724

$29.99

45

NUT-LOCK(10)

7542122

$1.49

46

BUMPER,SUSPENSION

5811097

Unavailable

47

NUT-LOCK(10)

7542439

$1.49

48

NUT, NYLOCK(10)

7542525

$4.79

49

WASHER(10)

7555893

$1.49

49

WASHER(10)

7555893

$1.49

50

BOLT(10)

7515472

$2.39

51

ARM,SHOCK PIVOT

1541001-067

$43.65

52

NUT LOCK(10)

7542411

$3.19

53

BUMPER, RAIL

5810554

$7.27
