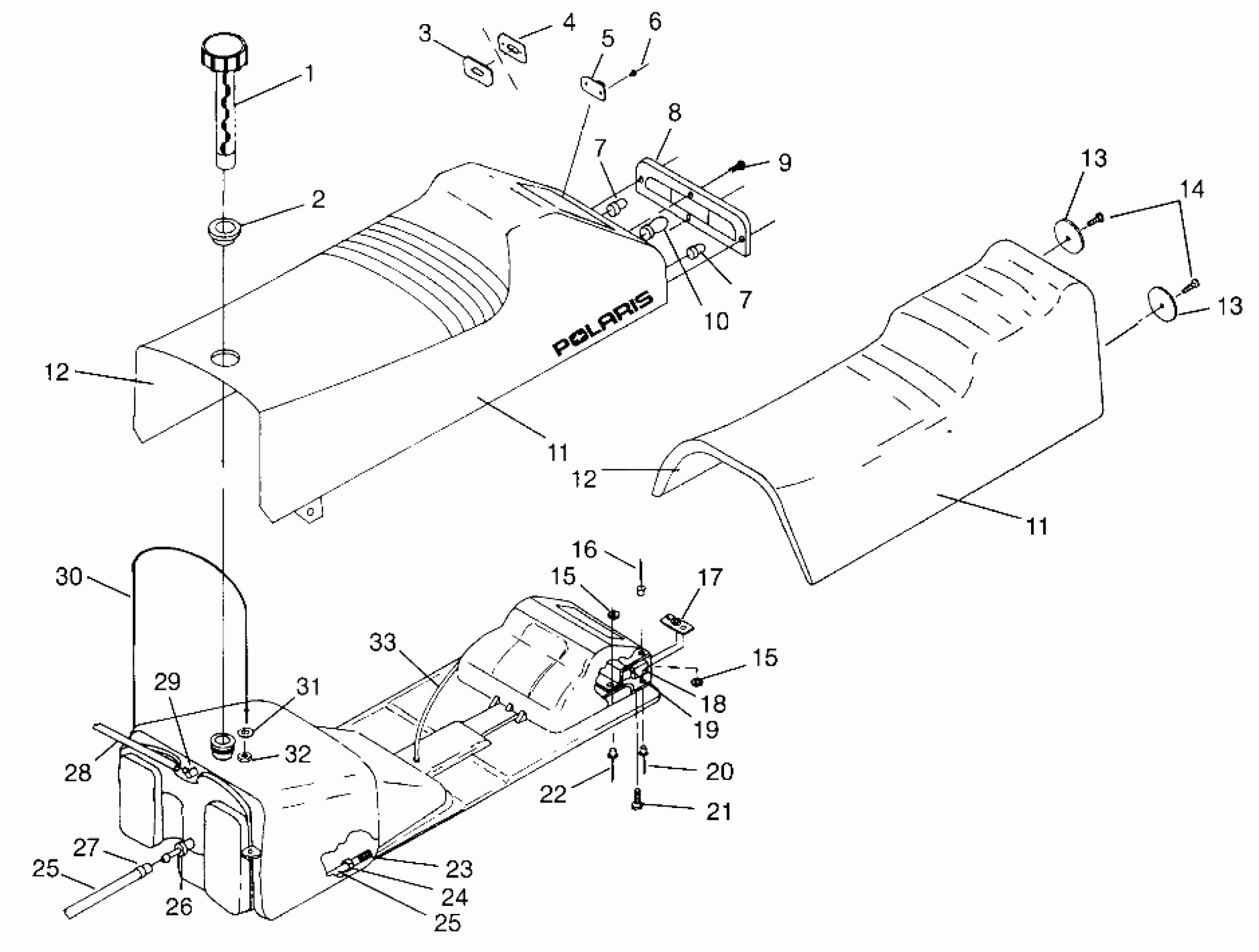

Polaris SPORT - 0960443 SEAT and GAS TANK SPORT 0960443, SPORT TOURING 0960243 and EUROPEAN SPORT T (4932223222A009) Diagram

#

Description
Price

1

CAP,GAS,W/GAUGE

2511248

$44.51

2

GROMMET,FUELTANK

5410842

Unavailable

3

GROMMET,RELATCH,1",BOTT.(10) (Sport)

7080550

Unavailable

4

GROMMET,RELATCH,1",TOP(10) (Sport)

7080549

Unavailable

5

TWISTLOCK,RELATCH,1",W/HOLE(10) (Sport)

7080548

Unavailable

6

RIVET(50) (Sport)

7621337

$1.49

7

BULB,TAILLIGHT(10)

4030024

$4.84

7

BULB,TAILLIGHT(10)

4030024

$4.84

8

LENS,TAILLIGHT

5430423

Unavailable

9

SCREW(10)

7511840

Unavailable

10

Bulb, Brakelight

4030045

Unavailable

11

COVER,SEAT,2-UP(SPORT TRG.) Substituted by 2682163 (Tour.)

2681788

Unavailable

11

COVER,SEAT,STD. (Incl. 4-7)

2681844

Unavailable

11

COVER,SEAT,2-UP(SPORT TRG.) Substituted by 2682163 (Tour.)

2681788

Unavailable

11

COVER,SEAT,STD. (Incl. 4-7)

2681844

Unavailable

12

CUSHION,SEAT ASM. (Tour.) (Incl. 2, 8-11, 15-20, 23, 24, 26, 29-33)

2681836

$399.99

12

CUSHION ASM,SEAT,STD. (Sport) (Incl. 2-6, 8-11, 15-20, 23, 24, 26, 29-33)

2681843

$399.99

12

CUSHION,SEAT ASM. (Tour.) (Incl. 2, 8-11, 15-20, 23, 24, 26, 29-33)

2681836

$399.99

12

CUSHION ASM,SEAT,STD. (Sport) (Incl. 2-6, 8-11, 15-20, 23, 24, 26, 29-33)

2681843

$399.99

13

REFLECTOR (Euro)

5430781

Unavailable

13

REFLECTOR (Euro)

5430781

Unavailable

14

SCREW(10) (Euro)

7511856

Unavailable

15

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

15

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

16

RIVET, BLIND(50)

7621467

$1.49

17

NUT,RETAINER-WELD.(10)

7542147

$17.59

18

HOUSING,TAILLIGHT Substituted by 5433341

5431545

Unavailable

19

COVER,T/L PROTECTOR

5431436

$21.43

20

RIVET(50)

7621301

$3.99

21

SCREW(10)

7512242

$2.39

22

RIVET(50)

7621460

$1.49

23

FUELPICKUP,W/STRAINER

7052037

$12.94

24

RING, COMPRESSION(10)

7080402

$1.60

25

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

25

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

26

FITTING - OUTLET(10)

7052023

$24.99

27

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$1.49

28

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

29

FITTING,90 DEG,1/8,(10)

7052095

$4.79

30

CABLE,TANK,RETENTION

7080559

Unavailable

31

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

32

NUT(10)

7541925

$1.49

33

HARNESS,TAILLIGHT

2460398

Unavailable
