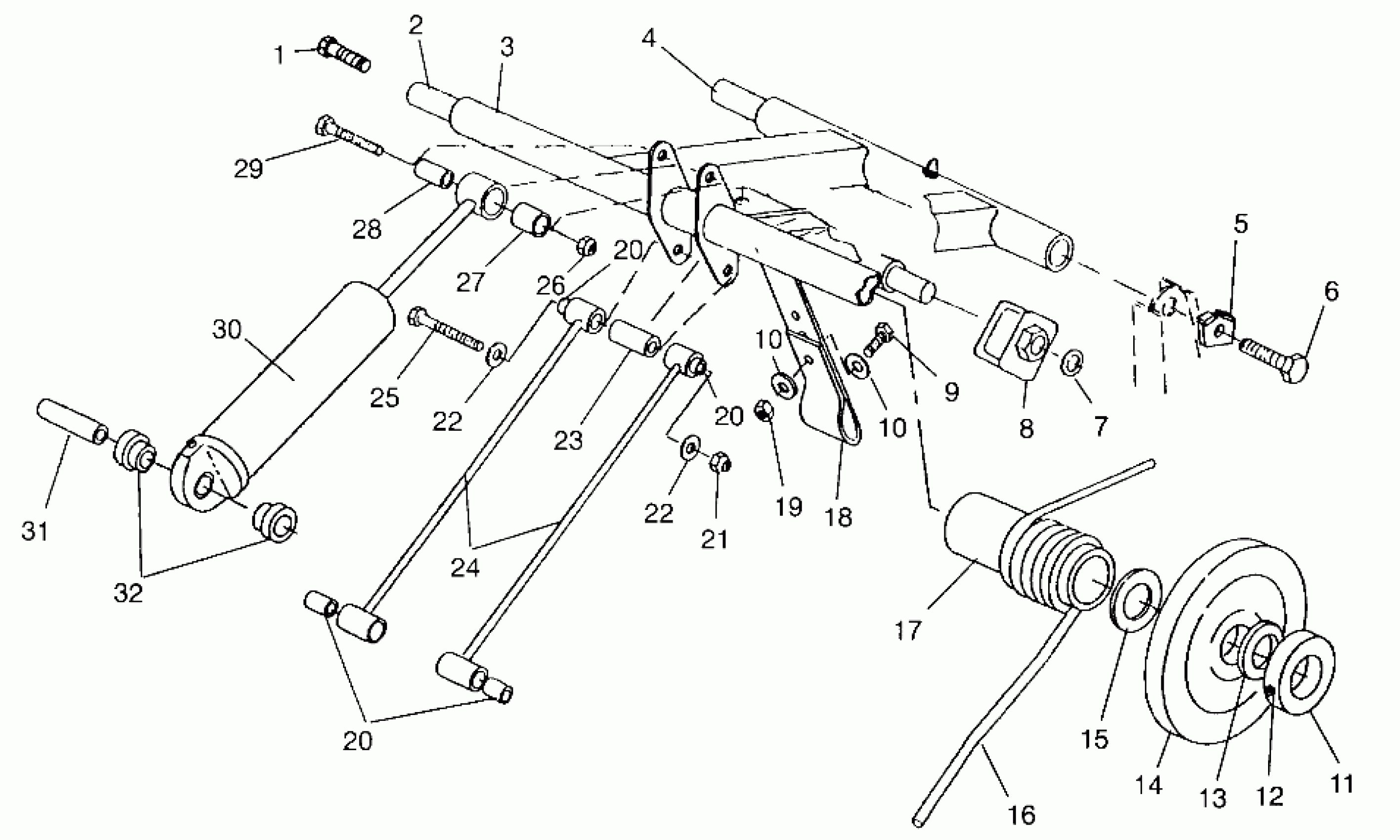

Polaris SPORT - 0960443 REAR TORQUE ARM SPORT TOURING 0960243 and EUROPEAN SPORT TOURING E960243 (4932223222C002) Diagram

#

Description
Price

1

BOLT(10)

7515432

Unavailable

2

SHAFT,R.TORQUE,UPPER

5020845

$63.99

3

ARM,R.TORQUE,BLK Substituted by 2200914

1541024-067

$68.19

4

SHAFT,LOW,RR,TORQUE

5020843

Unavailable

5

LOCK,BOLT,MECHANICAL

5211649

Unavailable

6

BOLT(10)

7515526

$1.19

7

CLIP-PUSH ON

7080394

$2.39

8

ROLLER, SPRING ADJ.

5431168

Unavailable

9

BOLT(10)

7515307

$3.99

10

WASHER(10)

7555716

$1.59

10

WASHER(10)

7555716

$1.59

11

COLLAR-BRG. LOCK

5010155

Unavailable

12

SCREW-SET(10)

7512257

$3.99

13

WASHER, THRUST(10) Substituted by 7555871

7555862

$5.56

14

Wheel, Carrier

1543023

Unavailable

15

WASHER, THRUST(10) Substituted by 7555871

7555787

Unavailable

16

SPRING,LH,TORS(.421DIA) (.421)(Std.)

7041461-067

Unavailable

16

SPRING,RH,TORS(.437/77) (437)(Frm.)

7041466-067

$107.99

16

SPRING,LH,TORS(.437/77) (.437)(Frm.)

7041465-067

Unavailable

16

SPRING,RH,TORS(.406DIA) (.406)(Soft)

7041464-067

Unavailable

16

SPRING,RH,TORS(.421DIA) (Std.)

7041462-067

$113.32

16

SPRING,LH,TORS(.406DIA) (.406)(Soft)

7041463-067

Unavailable

17

SLEEVE,TORSION SPRING

5431923

$6.39

18

STRAP-LIMITER,RR,SA

5411062

Unavailable

19

NUT LOCK(10)

7542321

$1.49

20

BUSHING,PIVOT TUBE

5020561

$1.59

20

BUSHING,PIVOT TUBE

5020561

$1.59

20

BUSHING,PIVOT TUBE

5020561

$1.59

21

NUT LOCK(10)

7542411

$3.19

22

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

22

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

23

Spacer

5333420

$11.99

24

ROD,SHOCK,(XTRA 10)133

1541021-067

Unavailable

25

BOLT(10)

7515472

$2.39

26

NUT FLEX-LOC(10)

7542303

$6.39

27

BUSHING

5430537

$3.99

28

BUSHING,R.SHOCK

5333030

Unavailable

29

BOLT(10)

7512329

$3.99

30

SHOCK,GAS,R.TRACK

7041438

Unavailable

31

BUSHING, 1.40

5020657

$15.99

32

BUSHING,SHOCK,.340

5431542

Unavailable
