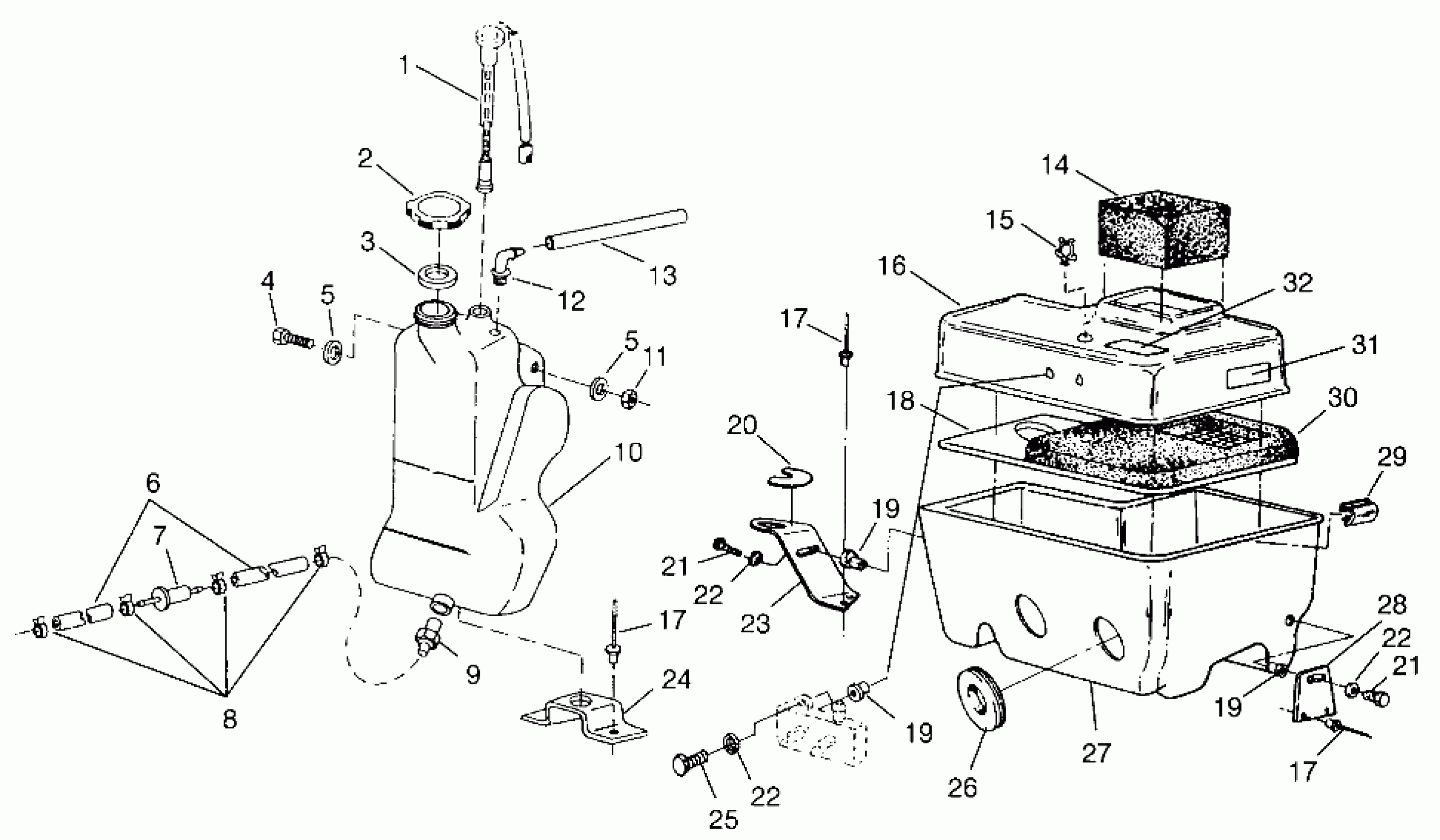

Polaris SPORT - 0960443 OIL TANK / AIR BOX SPORT 0960443, SPORT TOURING 0960243 and EUROPEAN SPORT (4932223222C009) Diagram

#

Description
Price

1

SENSOR,OIL LEVEL,W/CONN.

4040040

$72.84

2

CAP,OIL TANK

5430779

$14.56

3

GASKET-OIL CAP

5810141

$2.39

4

BOLT(10)

7512103

$3.19

5

WASHER,WROUGHT(10)

7558302

$1.59

5

WASHER,WROUGHT(10)

7558302

$1.59

6

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

7

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

8

CLAMP-HOSE, (LARGE GREEN) (Large Grill)

7080307

$1.49

9

FITTING, OUTLET (Single)

7052042

$8.99

10

Tank, Oil

5431437

Unavailable

11

NUT-LOCK(10)

7542122

$1.49

12

FITTING,90 DEG,1/8,(10)

7052095

$4.79

13

KIT-TANK VENT

2200190

Unavailable

14

INTAKE ASM, FOAM

1253107

$36.41

15

CLAMP,WIRE ROUTING(10)

7080409

$2.39

16

COVER,SILENCER,DRILLED

5432243

Unavailable

17

RIVET-3/16-.090-.290

7661637

$1.49

17

RIVET-3/16-.090-.290

7661637

$1.49

17

RIVET-3/16-.090-.290

7661637

$1.49

18

PLATE,AIR SILENCER

5850075

$24.27

19

NUT-WELL(10)

7541923

$5.59

19

NUT-WELL(10)

7541923

$5.59

19

NUT-WELL(10)

7541923

$5.59

20

DECAL,SHUT-OFF VALVE [No Longer Available]

7072151

Unavailable

21

SCREW(10)

7512279

$1.49

21

SCREW(10)

7512279

$1.49

22

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

22

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

22

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

23

BRKT,AIR SILENCER,W/TAB,BLK.

5240824-067

Unavailable

24

BRKT,OILTANK,COINED

5241334

$9.70

25

SCREW(10)

7512222

$2.39

26

BOOT

5410403

$12.99

27

SILENCER,INTAKE,DRILLED

5432137

Unavailable

28

BRACKET, SILENCER

5211274

$9.70

29

CLIP, AIR BOX,(10)

7670055

$7.99

30

BAFFLE ASM.

1253102

$64.75

31

DECAL,CAUTION(AIR BOX) [No Longer Available]

7072891

Unavailable

32

DECAL,CAUTION,AIRBOX

7075351

Unavailable
