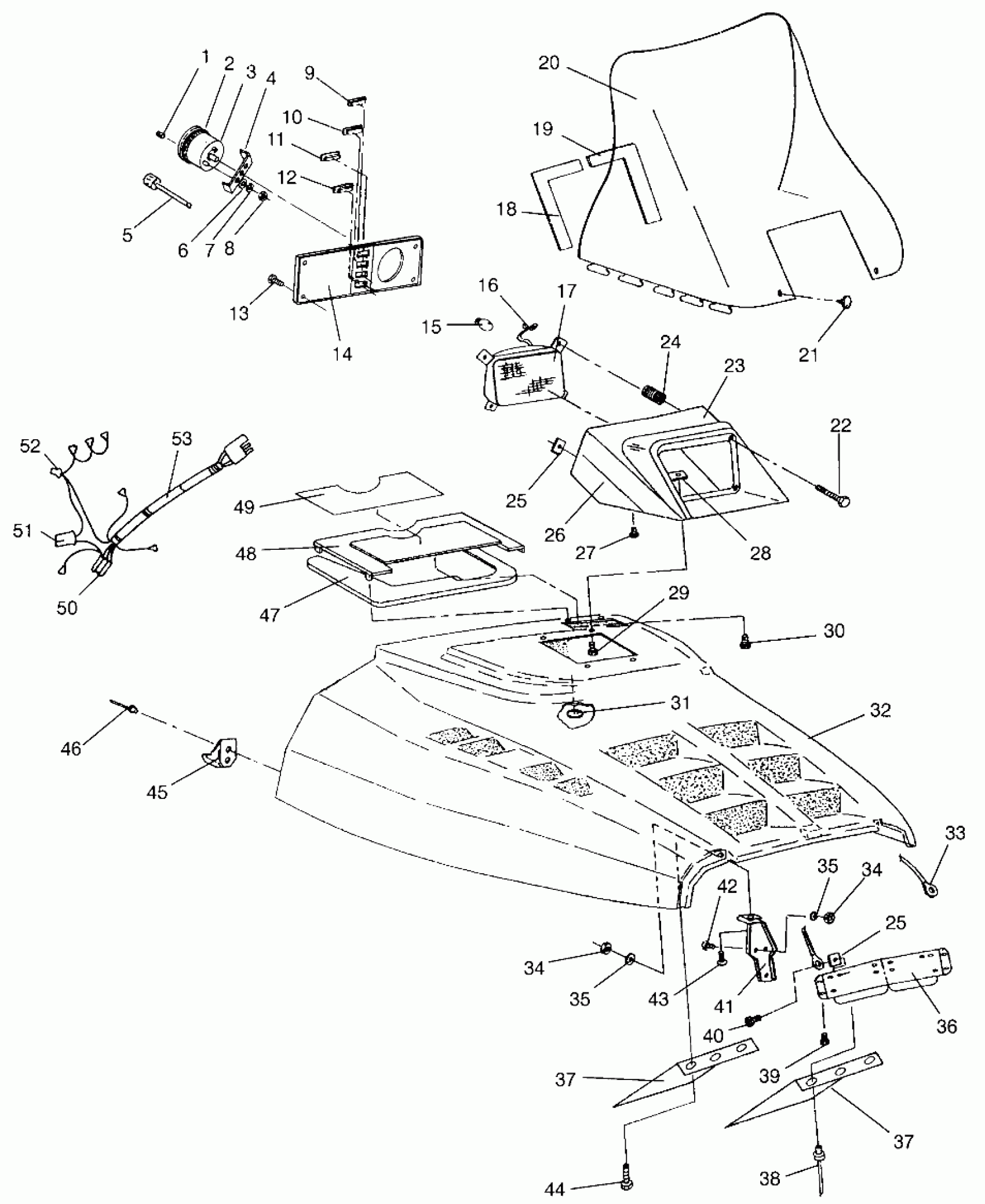

Polaris SPORT - 0960443 HOOD SPORT 0960443, SPORT TOURING 0960243 and EUROPEAN SPORT TOURING E96024 (4932223222A012) Diagram

#

Description
Price

1

KNOB,TRIP ODOMETER,LH THD.

3280186

$9.70

2

CUSHION,TACH/SPEEDO,RUBBER

3280151

Unavailable

3

BULB TAILLIGHT(10)

4030015

$4.03

3

SPEEDOMETER,BACKLIT (Incl. 4, 8)

3280148

Unavailable

4

BRKT,SPEEDO/TACH

3280153

Unavailable

4

SPEEDO,KILOMETER

3280159

$113.99

5

CABLE,SPEEDO.

3280094

$60.70

6

WASHER,SPLIT LOCK

3280156

$1.49

7

WASHER,FLAT,(10)

3280157

$2.39

8

Nut

3280158

Unavailable

9

INDICATOR'OIL/BRK'WARN.

4040034

$12.17

10

INDICATOR,'ACC'WARN.

4040014

Unavailable

11

INDICATOR'HI-BEAM'WARN.

4040013

Unavailable

12

PLUG,INDIC.HOLE

5430967

$5.65

13

SCREW,SCKT.HD.CAP(10)

7512008

Unavailable

14

BEZEL, INSTRUMENT

5431064

$16.67

15

BULB, H/L

4030028

$29.99

16

RETAINER,H/L BULB

4032063

Unavailable

17

HEADLIGHT ASM. (Euro)

4032040

Unavailable

17

HEADLIGHT ASM.

4032038

Unavailable

18

PAD,W/S,RH,BLACK

5810438

$1.67

19

PAD,W/S,LH,BLACK

5810437

Unavailable

20

WINDSHIELD, HIGH (Touring)

5431118

Unavailable

20

WINDSHIELD,SMOKE,STD(LIQ) (Sport)

5431144

$134.99

21

RIVET,(PLASTIC LOK)(50) Substituted by 7621509

7621505

$1.19

22

SCREW, ADJ.(10)

4032003

Unavailable

23

HSG,INST,TOP,BLK

5430923-070

Unavailable

24

SPRING-ADJ

4032002

Unavailable

25

NUT, SPEED(10)

7670056

Unavailable

25

NUT, SPEED(10)

7670056

Unavailable

26

HSG,INST.BOTT.BLK.

5430922-070

Unavailable

27

SCREW(10)

7512009

Unavailable

28

NUT, SPEED(10)

7670057

$1.49

29

SCREW, SEMS(10)

7512283

$3.99

30

SCREW(10)

7511840

Unavailable

31

RETAINER,WINDSHIELD,(10)

5410970

$1.49

32

HOOD ASM,BLK.MET. (Incl. Foam, Foil & Warning Decals)

2631746-177

Unavailable

33

CABLE,HD.RETAINER

7080360

$24.27

34

NUT-LOCK(10)

7542122

$1.49

34

NUT-LOCK(10)

7542122

$1.49

35

WASHER,WROUGHT(10)

7558302

$1.59

35

WASHER,WROUGHT(10)

7558302

$1.59

36

PLATE,RE-INF.,(HD.)

5222105

$49.51

37

DEFLECTOR, AIR Substituted by 5243393

5222691

Unavailable

37

DEFLECTOR, AIR Substituted by 5243393

5222691

Unavailable

38

POP RIVET(50)

7621425

$1.49

39

SCREW(10)

7511861

Unavailable

40

SCREW(10)

7511989

Unavailable

41

HINGE ASM,HD,BLK

2635005-067

$16.67

42

BOLT(10)

7512193

$2.39

43

BOLT-CARRIAGE(10)

7512263

$3.99

44

SCREW(10)

7511858

$3.99

45

CUP, HOOD LATCH,(10)

5430733

$4.84

46

RIVET(50)

7621334

$1.49

47

SEAL, INTAKE

5810597

Unavailable

48

PANEL ASM,INTAKE,MET.BLK. Substituted by 2620095-177 (Incl. 49)

2620078-177

Unavailable

49

DECAL,DASH WARNING Substituted by 7075457 (Park Brake)

7074883

Unavailable

50

HOUSING

4020052

Unavailable

51

Housing

4020115

$1.59

52

HOUSING

4020114

Unavailable

53

HARNESS, HEADLIGHT

2460383

Unavailable
