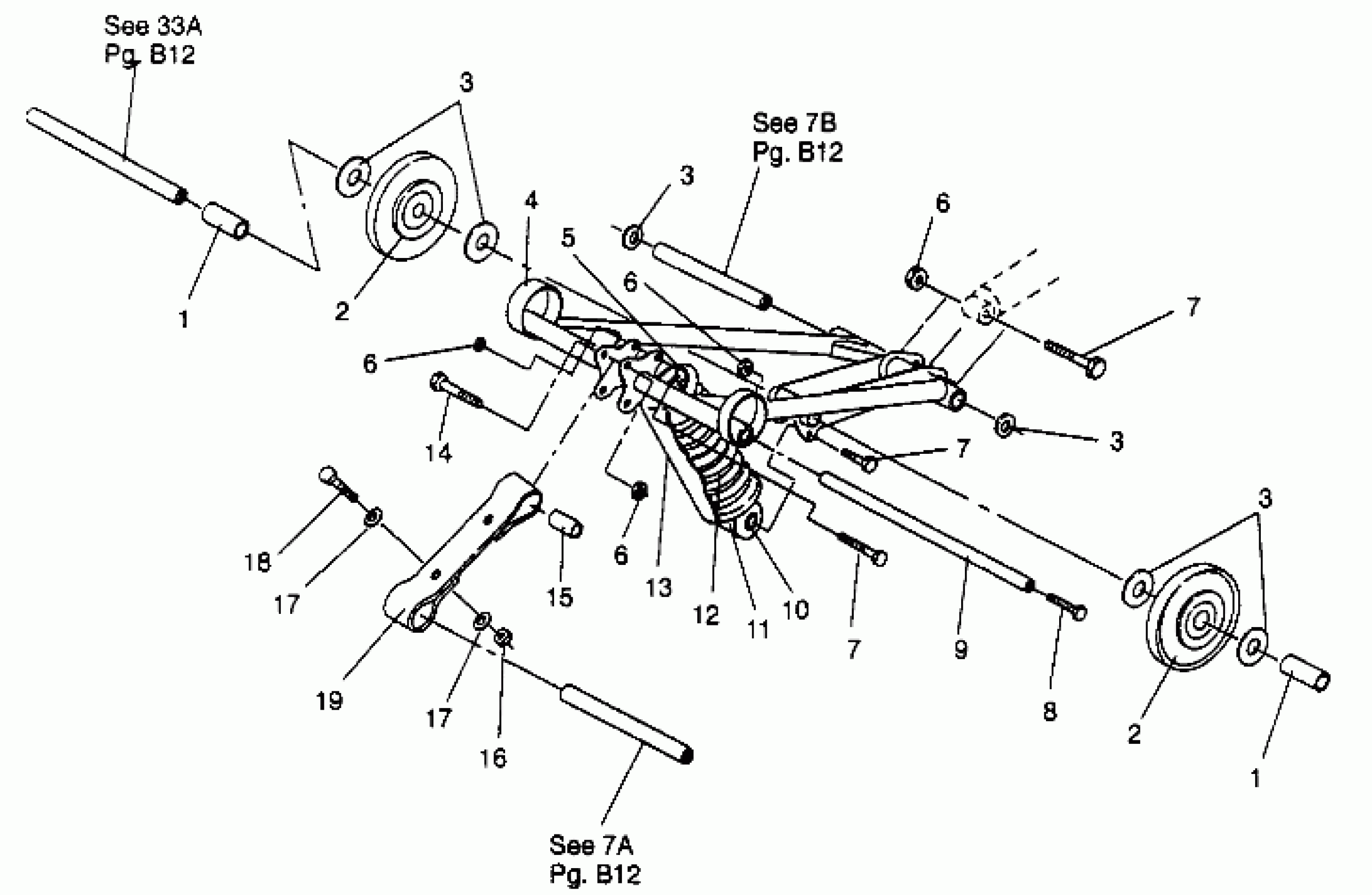

Polaris SPORT - 0960443 FRONT TORQUE ARM SPORT 0960443 (4932223222C003) Diagram

#

Description
Price

1

Spacer (See Pg. A23, Ref. 35)

-------

Unavailable

1

Spacer (See Pg. A23, Ref. 35)

-------

Unavailable

2

Asm., Bogie Wheel (See Pg. A23, Ref. 21)

-------

Unavailable

2

Asm., Bogie Wheel (See Pg. A23, Ref. 21)

-------

Unavailable

3

MACHINERY BUSHING(10)

7556301

$3.19

3

MACHINERY BUSHING(10)

7556301

$3.19

3

MACHINERY BUSHING(10)

7556301

$3.19

3

MACHINERY BUSHING(10)

7556301

$3.19

4

ARM,F.TORQUE,BLK.

1540722-067

Unavailable

5

RETAINER-TOP

5220225

$10.39

6

NUT-LOCK(10)

7542439

$1.49

6

NUT-LOCK(10)

7542439

$1.49

6

NUT-LOCK(10)

7542439

$1.49

6

NUT-LOCK(10)

7542439

$1.49

7

BOLT(10)

7515415

$1.49

7

BOLT(10)

7515415

$1.49

7

BOLT(10)

7515415

$1.49

8

BOLT(10)

7515432

Unavailable

9

SHAFT,MOUNTING

5010149

Unavailable

10

SHOCK-SUSP

7041142

Unavailable

11

SPACER,SHOCK RETAINER(10)

5210953

$6.39

12

SPRING-SHOCK

7041127

Unavailable

13

SHIELD-SPRING

5430671

$24.27

14

BOLT(10)

7515438

$4.79

15

BUSHING,SUSPENSION

5010212

Unavailable

16

NUT-5/16-18 NYLOK-Y

7542324

$1.49

17

WASHER(10)

7555716

$1.59

17

WASHER(10)

7555716

$1.59

18

BOLT(10)

7515307

$3.99

19

STRAP, LIMITER

5410397

Unavailable
