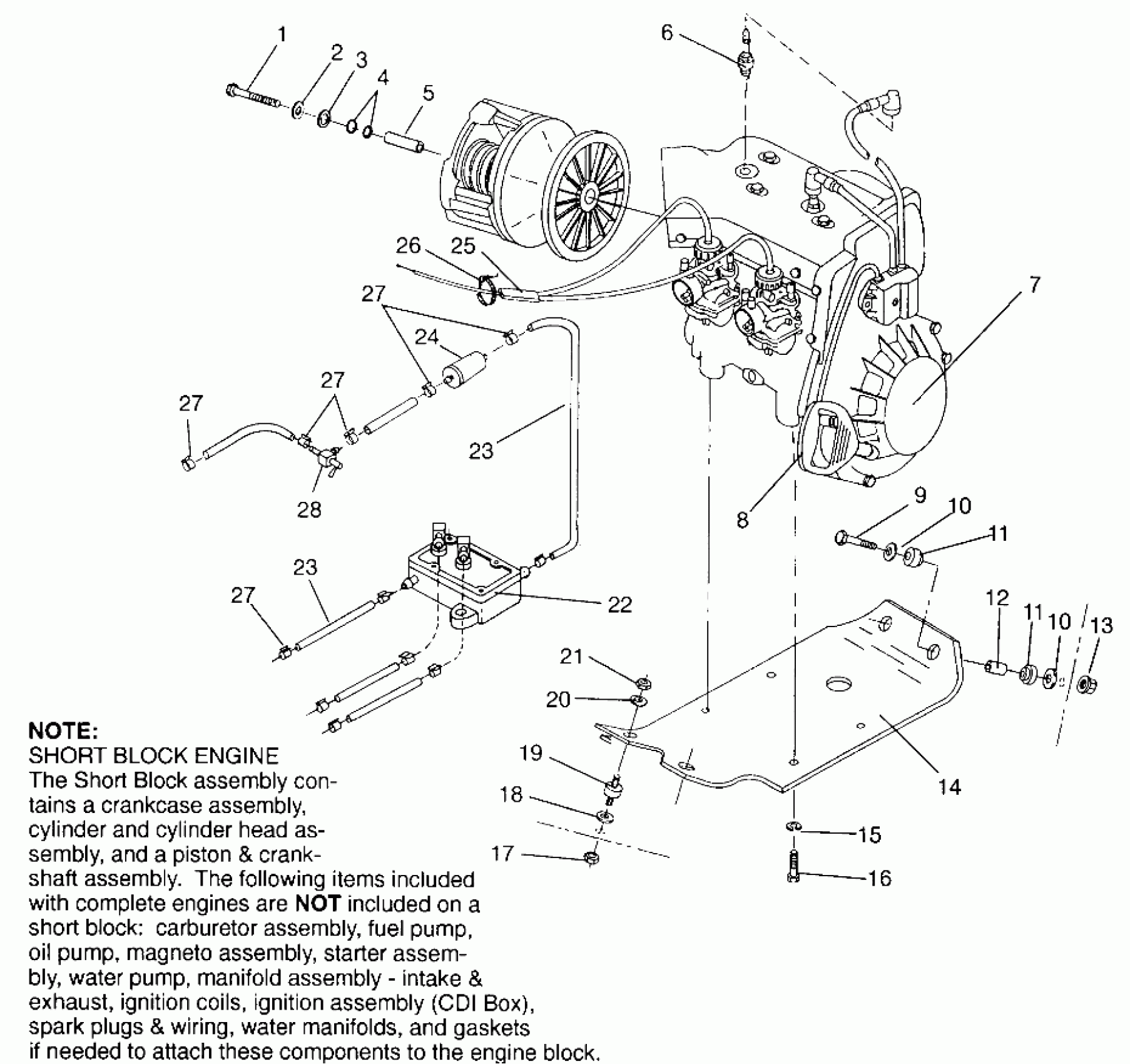

Polaris SPORT - 0960443 ENGINE MOUNTING SPORT 0960443, SPORT TOURING 0960243 and EUROPEAN SPORT TOU (4932223222C007) Diagram

#

Description
Price

1

SCREW(10)

7512593

Unavailable

2

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

3

WASHER,CLUTCH RETAINER

5010278

Unavailable

4

O RING,(10) (EURO)

5410507

$1.49

5

SPACER,CLUTCHBOLT (EURO)

5020847

Unavailable

6

SPARKPLUG (10)

3070156

$3.99

7

ENG.(S.B.)EC44-3PM025 [No Longer Available]

3084623

Unavailable

8

HANDLE-RECOIL

5430520

Unavailable

9

SCREW(10)

7512530

$5.59

10

WASHER(10)

7555740

$1.59

10

WASHER(10)

7555740

$1.59

11

MOUNT, ENGINE

5410390

Unavailable

11

MOUNT, ENGINE

5410390

Unavailable

12

TUBE,SPACER

5333354

Unavailable

13

NUT,FLANGE(10)

7542522

$5.59

14

PLATE,MTR.MT. Substituted by 5131192

5131099

Unavailable

15

WASHER LOCK(10)

7553101

$3.99

16

BOLT(10)

7512539

$3.99

17

NUT LOCK(10)

7542411

$3.19

18

WASHER,FLAT(10)

7555915

$3.19

19

MOUNT

3110022

Unavailable

20

WASHER(10) Substituted by 7555806

7555720

$0.79

21

NUT-LOCK(10)

7542439

$1.49

22

Asm., Fuel Pump (See Pg., Ref.)

-------

Unavailable

23

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

23

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

24

FILTER FUEL,(10)

2530008

$4.84

25

CABLE,THROTTLE,W/OIL

7080552

Unavailable

26

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

27

HOSE CLAMP, RED

7080003

$1.49

27

HOSE CLAMP, RED

7080003

$1.49

27

HOSE CLAMP, RED

7080003

$1.49

27

HOSE CLAMP, RED

7080003

$1.49

28

VALVE,FUEL SHUT-OFF

7052060

Unavailable
