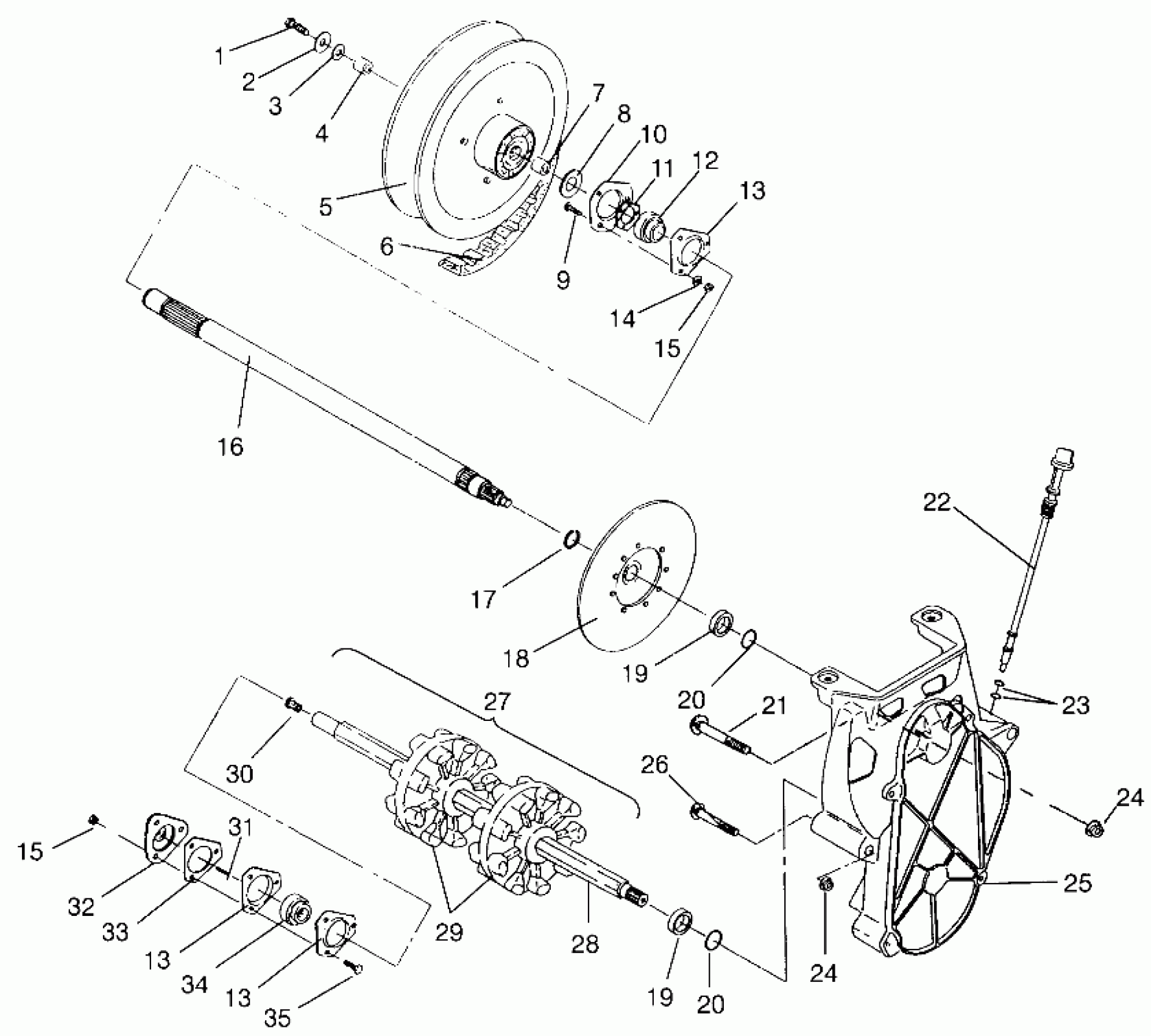

Polaris SPORT - 0960443 DRIVE TRAIN SPORT 0960443, SPORT TOURING 0960243 and EUROPEAN SPORT TOURING (4932223222B010) Diagram

#

Description
Price

1

BOLT(10)

7515369

$4.79

2

WASHER FLAT(10)

7555701

$3.99

3

WASHER(10)

7555734

Unavailable

4

SPACER,DRIVEN CLUTCH

5020645

Unavailable

5

Asm., Driven Clutch (See Pg., Ref.)

-------

Unavailable

6

BELT, DRIVE(5)

3211059

$79.99

7

SPACER, DRIVEN Substituted by 2200385 (Touring, Euro)

5020596

Unavailable

8

WASHER SPECIAL(10)

7556509

Unavailable

9

BOLT(10) Substituted by 7512377

7512394

Unavailable

10

FLANGETTE

5240252

Unavailable

11

GASKET,JACKSHAFT,BLK.

5811095

$2.41

12

BEARING,JACKSHAFT

3514519

$64.99

13

FLANGETTE

5222751

$16.44

13

FLANGETTE

5222751

$16.44

13

FLANGETTE

5222751

$16.44

14

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

16

JACKSHAFT ASM. (Incl. 17)

1332146-067

Unavailable

17

RING, RETAINING(10)

7710422

$3.99

18

DISC ASM, BRAKE

1910086

Unavailable

19

SLEEVE, SEAL

5020588

$23.99

19

SLEEVE, SEAL

5020588

$23.99

20

O RING,(10)

5410613

$1.99

20

O RING,(10)

5410613

$1.99

21

BOLT(10)

7515474

$3.33

22

DIPSTICK Substituted by 1332143

5431419

Unavailable

23

O-RING

5410675

$1.60

24

NUT(10)

7542423

$3.99

24

NUT(10)

7542423

$3.99

25

Cover, Chaincase (See Pg., Ref.)

-------

Unavailable

26

BOLT(10)

7515428

$4.79

27

DRIVESHAFT ASM,HD,2DR Substituted by 1590250 (Incl. 28-30)

1590249

Unavailable

28

SHAFT,DRIVE(HI.STRENGTH)

6230083

Unavailable

29

SPROCKET, 9T

5430571

Unavailable

30

BUSHING METAL SPEEDO

3280019

$11.99

31

SQ. KEY SPEEDOMETER,(10)

3280017

$13.75

32

ADAPTER,DRIVE,W/ZERK

3280116

$101.17

33

GASKET,DRIVE ADAPTOR,(10)

5830012

$2.41

34

BEARING,DRIVESHAFT

3514518

$64.99

35

BOLT(10)

7512331

$3.99
