Partiron

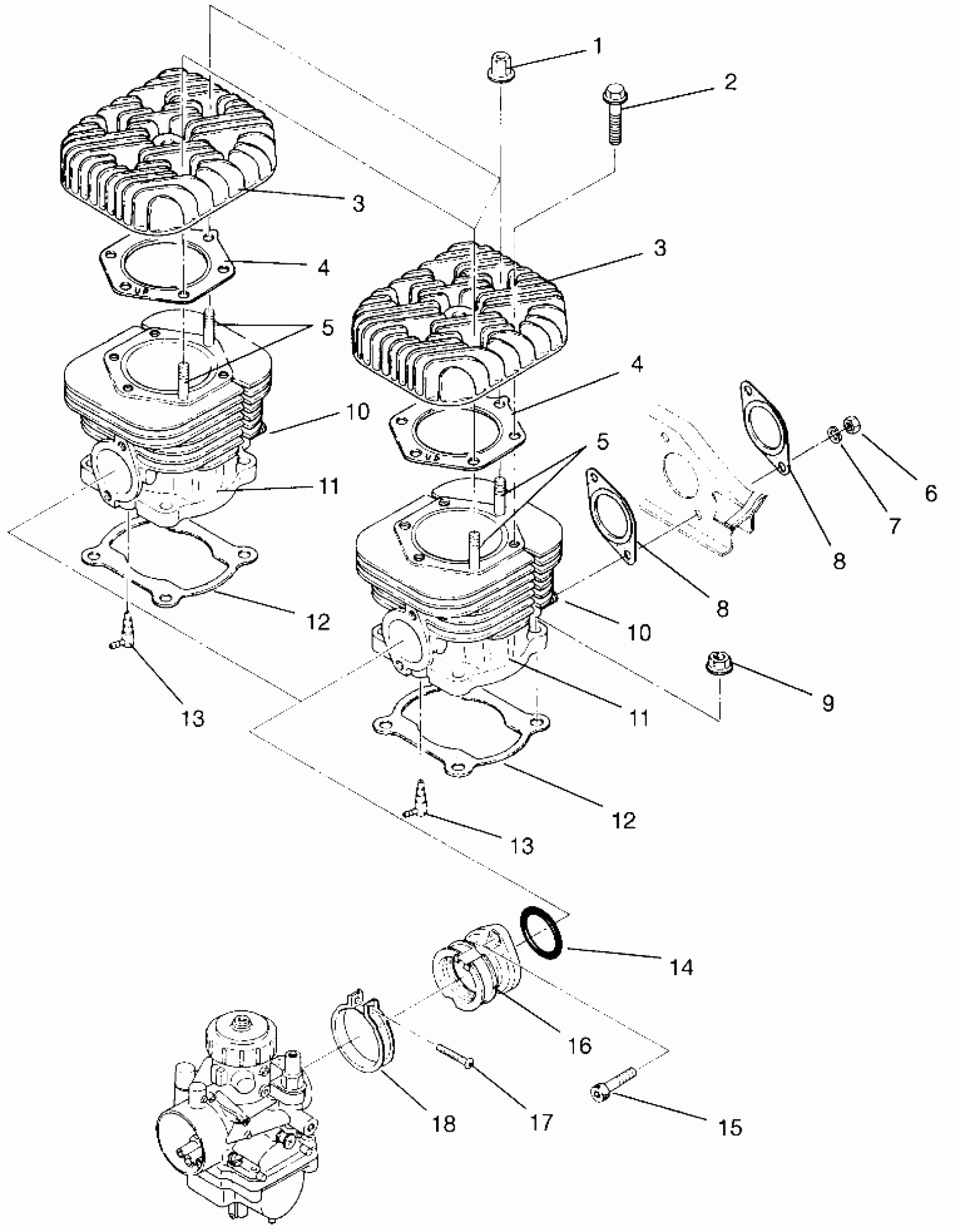

Polaris SPORT - 0960443 CYLINDER SPORT 0960443, SPORT TOURING 0960243 and EUROPEAN SPORT TOURING E9 (4932223222C012) Diagram

#

Description
Price

1

NUT-FLANGE(10)

3082910

$2.39

2

BOLT, FLANGE

3084271

Unavailable

3

HEAD, CYLINDER

3084250

Unavailable

3

HEAD, CYLINDER

3084250

Unavailable

4

GASKET, HEAD

3084249

Unavailable

4

GASKET, HEAD

3084249

Unavailable

5

STUD

3083392

Unavailable

5

STUD

3083392

Unavailable

6

NUT(10)

3080285

Unavailable

7

WASHER LOCK ,(10)

3080530

$3.19

8

GASKET, EXHAUST (1.6mm)

3084026

Unavailable

8

GASKET, EXHAUST (1.6mm)

3084026

Unavailable

9

NUT-FLANGE(10)

3082911

$1.99

10

STUD Substituted by 3085326

3084270

Unavailable

10

STUD Substituted by 3085326

3084270

Unavailable

11

CYLINDER (Incl. 5, 10)

3084269

$694.99

11

CYLINDER (Incl. 5, 10)

3084269

$694.99

12

GASKET, BASE

3084025

Unavailable

12

GASKET, BASE

3084025

Unavailable

13

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

13

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

14

O-RING Substituted by 3085619

3084272

Unavailable

15

Bolt, Allen

3081330

$3.99

16

ADAPTER,CARB. (45mm)

3085044

Unavailable

17

SCREW,(10)

3081497

$2.39

18

BAND ASM. (Incl. 17)

3083166

$19.84
