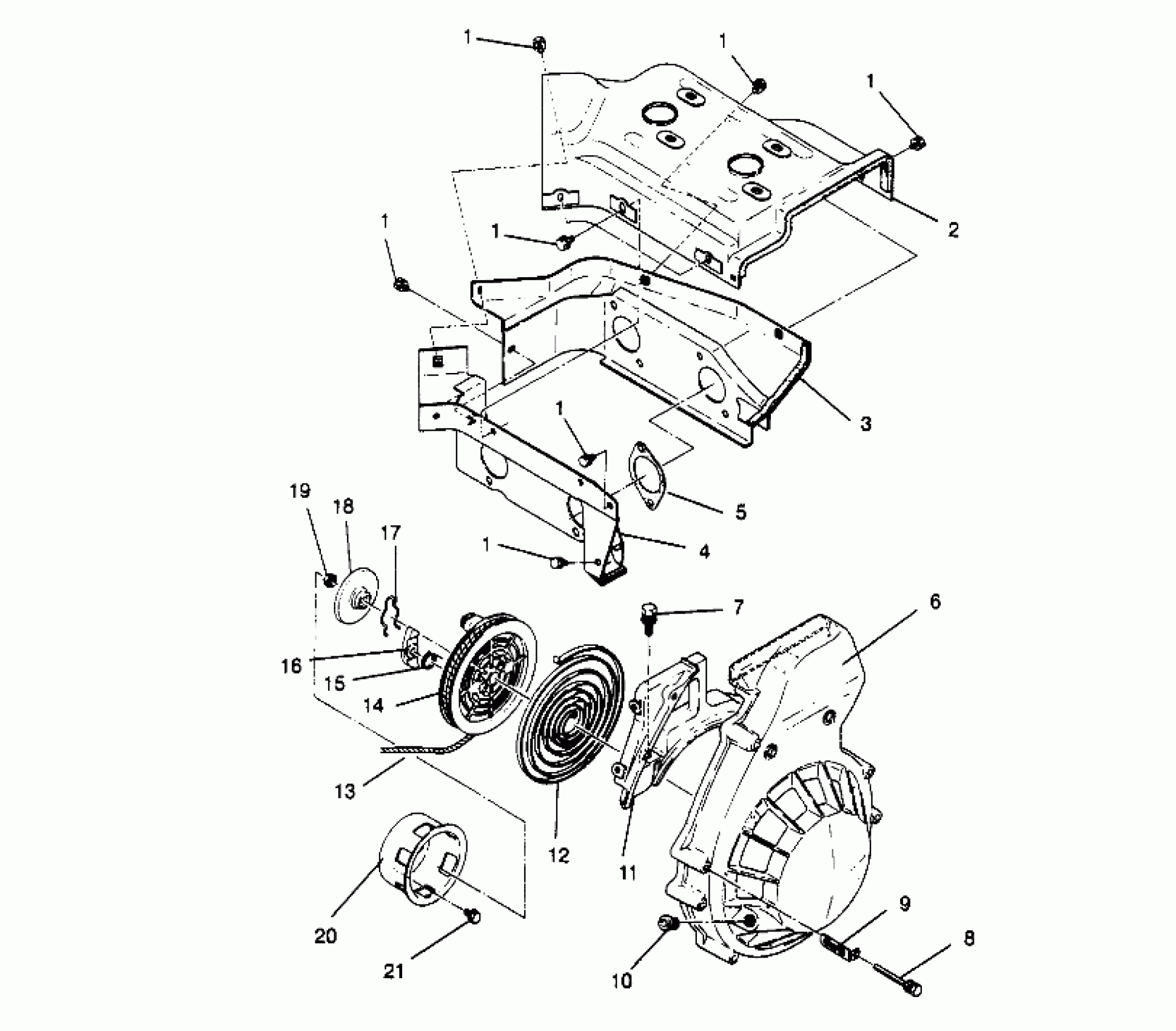

Polaris SPORT - 0960443 BLOWER HOUSING and RECOIL STARTER SPORT 0960443, SPORT TOURING 0960243 and (4932223222D004) Diagram

BOLT & WASHER(10) Substituted by 3081645

3083231

Unavailable

BOLT & WASHER(10) Substituted by 3081645

3083231

Unavailable

BOLT & WASHER(10) Substituted by 3081645

3083231

Unavailable

BOLT & WASHER(10) Substituted by 3081645

3083231

Unavailable

BOLT & WASHER(10) Substituted by 3081645

3083231

Unavailable

BOLT & WASHER(10) Substituted by 3081645

3083231

Unavailable

BOLT & WASHER(10) Substituted by 3081645

3083231

Unavailable

BAFFLE,CYL.#1

3084588

Unavailable

BAFFLE,CYL.#2

3085008

Unavailable

BAFFLE,CYL.#3 (Incl. 5) (See Pg. A37, Ref. 12)

3085009

Unavailable

Gasket, Intake, Non-Asbestos (See Pg. A37, Ref. 12)

-------

Unavailable

RECOIL STARTER (Incl. 6, 10, 12, 14-19)

3083547

Unavailable

CASE, STARTER

3083548

Unavailable

BOLT&WASHER ASM.

3084225

$3.99

BOLT&WASHER ASM.

3083550

Unavailable

Clamp

3083590

$3.99

GUIDE-ROPE

3083107

Unavailable

HOUSING,BLOWER,#2

3083697

Unavailable

Spring, Spiral

3083376

$179.11

ROPE,100 FT,NYL.STARTER

2870621

$34.99

REEL, REWIND

3083377

$56.65

Spring, Return

3083463

$4.03

Ratchet

3083378

$20.22

Spring, Friction

3083379

$24.27

Plate, Friction

3083464

$28.32

NUT, FLANGE ,(10)

3083381

$2.99

PULLEY, STARTER

3083549

Unavailable

BOLT,(10)

3081665

$3.19
