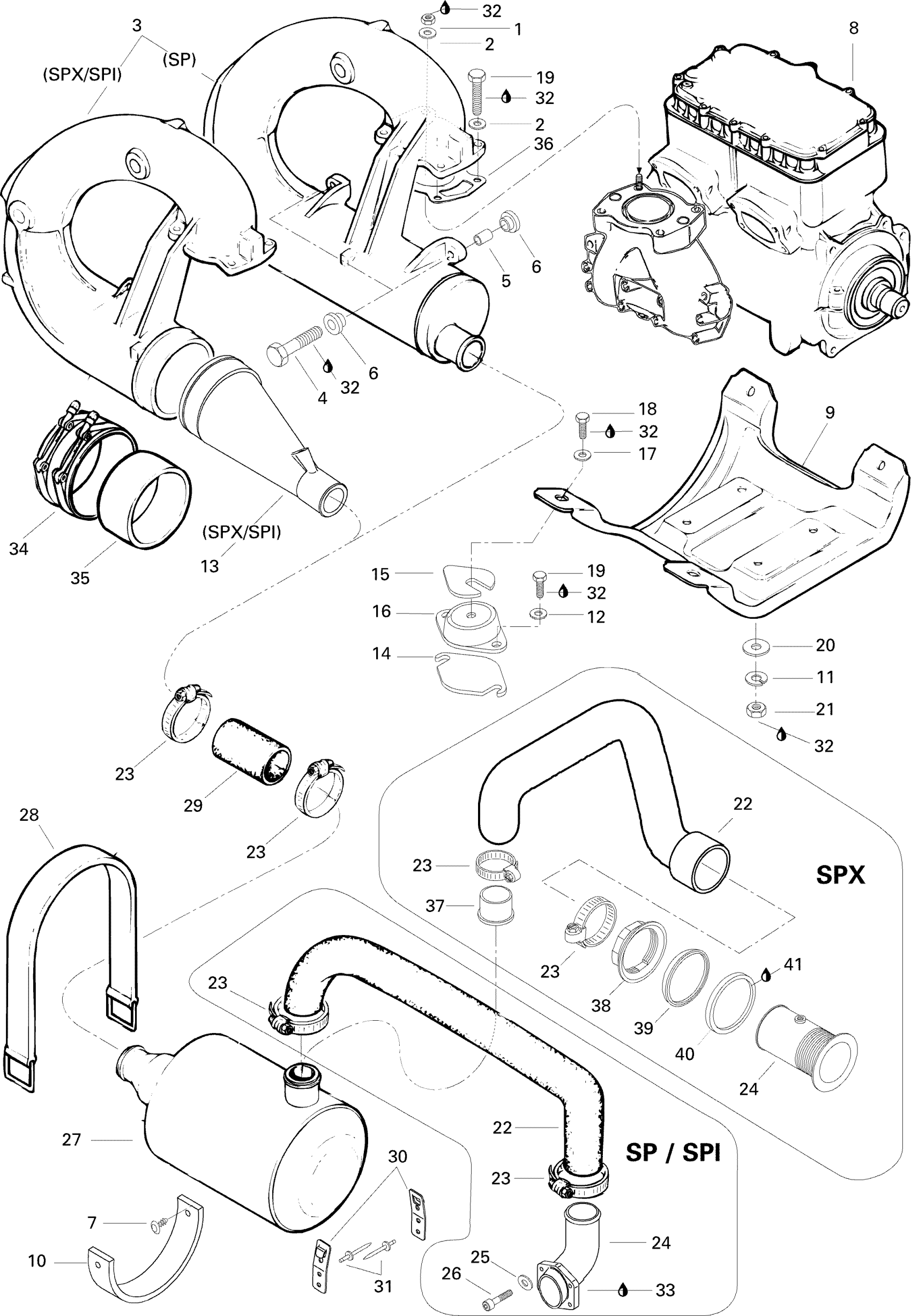

Sea-doo SPI, 5878, 1996 Exhaust System SPI Diagram

#

Description
Price

1

Hex. Nut M8

232081600

$1.47

2

Flat Washer M8.5 x 18

293050001

$3.07

3

Tuned Pipe

274000299

Unavailable

4

Hex. Screw M8 X 40

207084060

$2.22

5

Bushing

274000114

$8.85

6

Rubber Bushing

293830031

Unavailable

7

Black, Dart

293730006

$0.99

8

Rotax Eng. 587, Single Carb. (White)

270000173

Unavailable

9

Engine Support

270000147

Unavailable

10

Rubber Pad

293830008

Unavailable

11

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

12

Stainless, Flat Washer 8 mm

234081600

$0.55

13

Exhaust Cone

274000126

Unavailable

14

Shim 0.4 mm

270000006

Unavailable

14

Shim 1.3 mm

270000007

Unavailable

15

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

15

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

16

Rubber Mount

270000425

$71.99

17

Flat Washer 8 mm, Stainless

234082600

$2.43

18

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

19

Hex. Screw M8 X 30

207183060

$1.58

20

Flat Washer 10 mm, Stainless

234001600

$1.15

21

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

22

Hose Formed

274000143

Unavailable

23

Tridon Clamp

293650036

$7.49

24

Exhaust Outlet

274000098190

Unavailable

25

Stainless Flat Washer M6

234061600

$0.33

26

Socket Head Screw M6 X 20

205062060

$2.32

27

Muffler

274000249

Unavailable

28

Retainer Strap

293850097

$11.64

29

EXHAUST HOSE - Call your local BRP dealership

274000032

Unavailable

30

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

31

Avdel Rivet 3/16"

293150037

$0.56

32

Loctite 243, 10 ml

293800060

$21.49

33

Instant Gasket

219701421

$51.99

34

Clamp

274000211

Unavailable

35

Sealing Ring

274000074

Unavailable

36

Exhaust Gasket This part replaces 290950253.

420950253

$14.83

37

Not Available As Spare Parts

XXX

Unavailable

38

Not Available As Spare Parts

XXX

Unavailable

39

Not Available As Spare Parts

XXX

Unavailable

40

Not Available As Spare Parts

XXX

Unavailable

41

Not Available As Spare Parts

XXX

Unavailable
