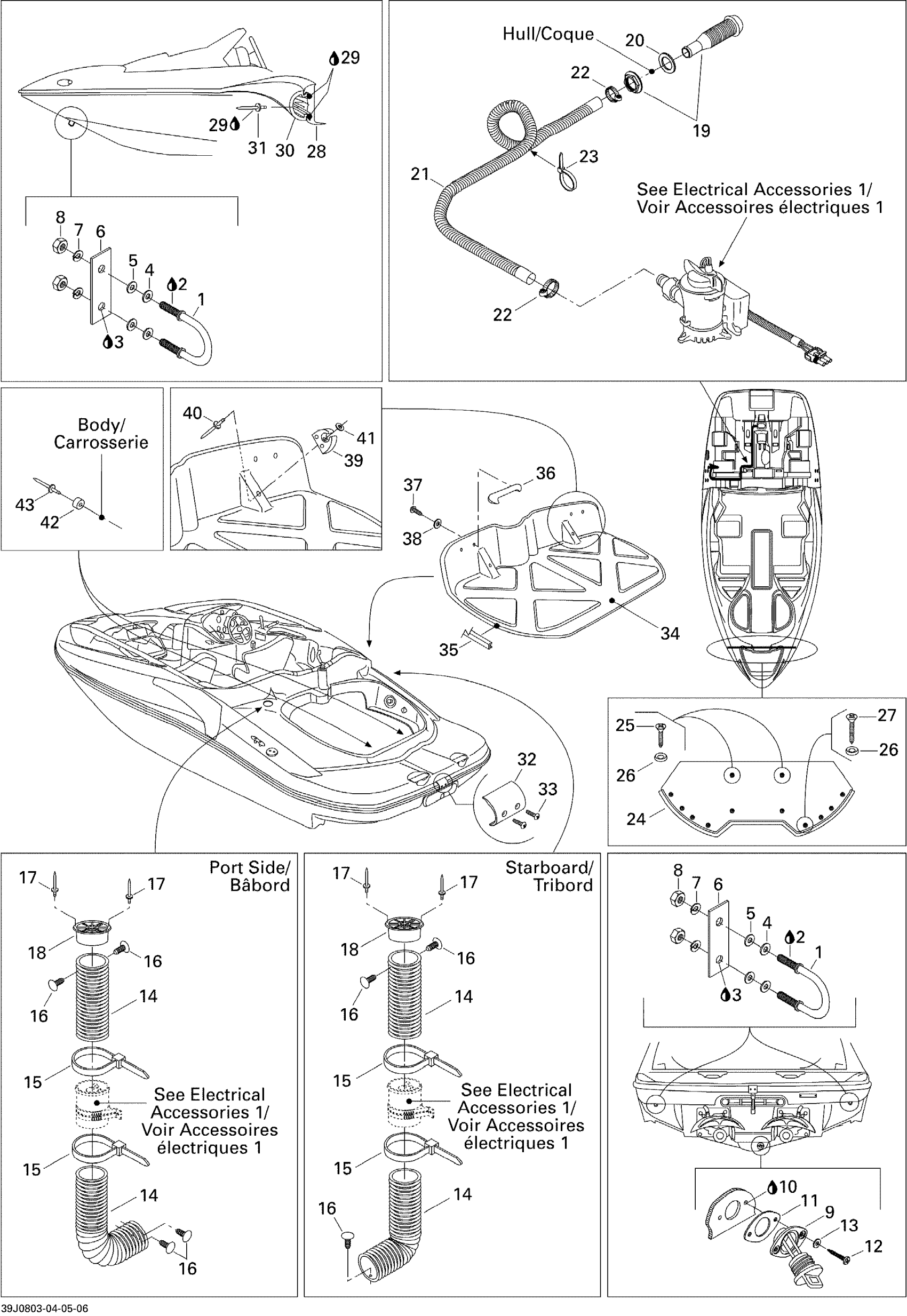

Sea-doo Speedster WAKE 310, 2008 09- Hull Diagram
#
1
U-CLAMP - Call your local BRP dealership
292000063
Unavailable
2
Loctite 271, 10 ml
293800005
$26.99
3
Silicone Sealant 51388, 300 ml
296000309
$36.99
4
Flat Washer M8.5 x 18
293050001
$3.07
5
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
6
RETAINING PLATE - Call your local BRP dealership
291000307
Unavailable
7
Lock Washer 8 mm, Stainless
234181601
$0.55
8
Hex. Nut M8
232081600
$1.47
9
Drain Plug
292000187
$14.49
10
Silicone Sealant 51388, 300 ml
296000309
$36.99
11
GASKET - Call your local BRP dealership
293250030
Unavailable
12
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
13
Flat Washer 4 mm, Stainless
234041600
$1.15
14
Was 204050122 Vent Hose 4"
219704358
$25.99
15
Tie Rap, 533 mm
293750047
$2.09
16
Black, Dart
293730006
$0.99
17
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
18
VENT - 4 OPEN / WHT. - Call your local BRP dealership This part replaces 204050533.
204050803
Unavailable
19
Fitting
293710162
$13.49
20
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
21
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
22
Tridon Clamp
293650016
$10.99
23
Tie-Rap 180 mm
414115200
$0.11
24
TRIM LOCK, METER - Call your local BRP dealership
204130079
Unavailable
25
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
26
FINITION WASHER - Call your local BRP dealership
204100057
Unavailable
27
PHILLIPS TAPPING SCREW M4.8 X 51 - Call your local BRP dealership
250000087
Unavailable
28
Bumper, Black
204050467
Unavailable
29
Silicone Sealant 51388, 300 ml
296000309
$36.99
30
Bumper Trim, Black
204050463
Unavailable
31
Pop Rivet 3/16"
293150013
$1.37
32
BUMPER COVER, BLACK - Call your local BRP dealership
204050031
Unavailable
33
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
34
ENGINE ACCESS COVER - Call your local BRP dealership
269700130
Unavailable
35
Seal Tray 1000Mm Long
219704368
$13.99
36
Black, Handle - Call your local BRP dealership
204050159
Unavailable
37
Hex. Flange Screw K40 X 16
241141660
$1.48
38
Flat Washer 4 mm, Stainless
234042600
$1.15
39
Pole Support
291000642
Unavailable
40
Pop Rivet 3/16"
293150005
$0.52
41
Flat Washer M5, Stainless
234051600
$0.77
42
Rubber Stopper
293830043
Unavailable
43
RIVET - Call your local BRP dealership
293150065
Unavailable
