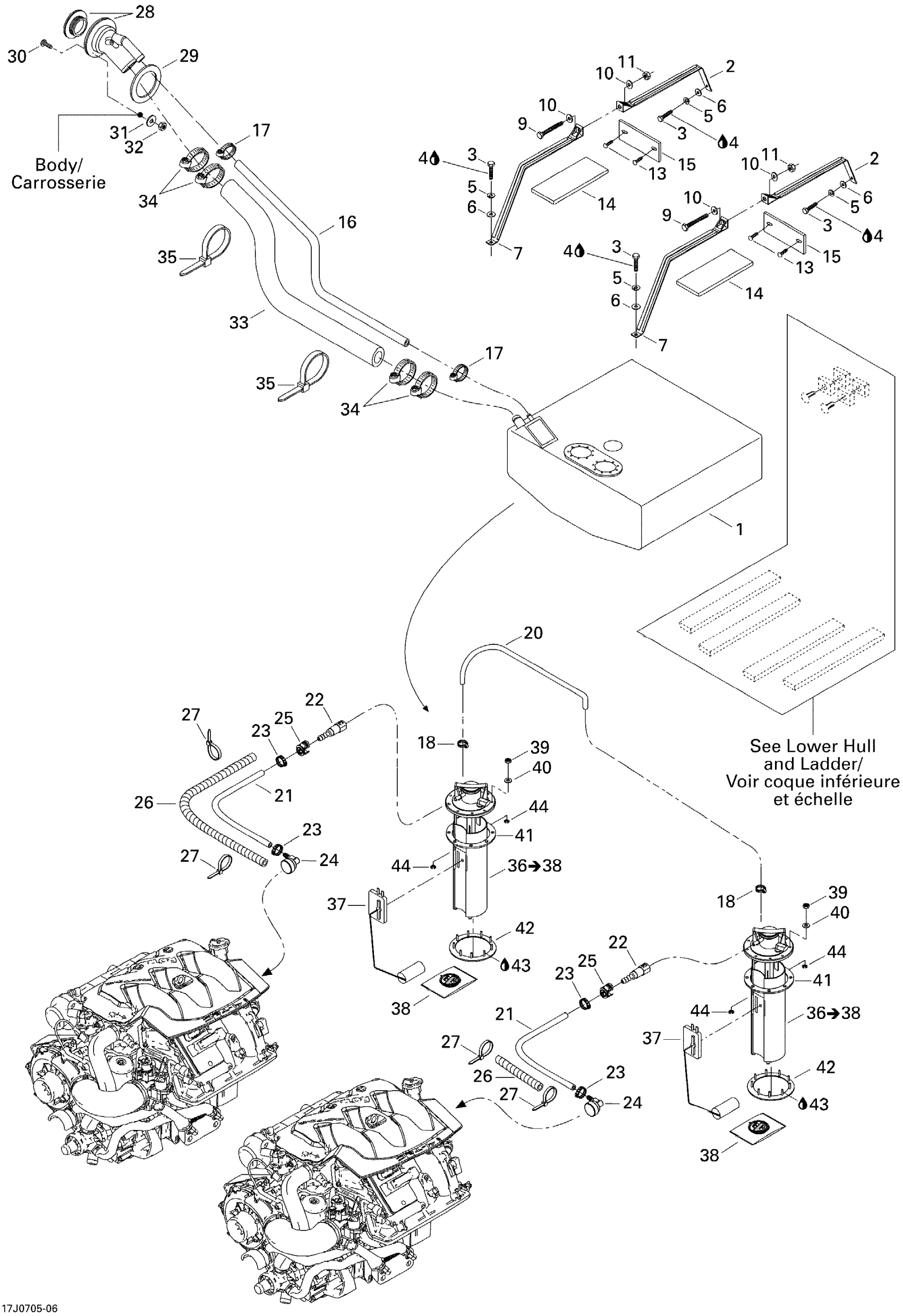

Sea-doo Speedster WAKE 215IC, 2007 02- Fuel System Diagram
#
1
FUEL TANK 42 GAL - C/U - Call your local BRP dealership This part replaces 204560364.
204560473
Unavailable
2
FUEL TANK STRAP - Call your local BRP dealership
204560235
Unavailable
3
Hex. Screw M8 X 30
207183060
$1.58
4
Loctite 271, 10 ml
293800005
$26.99
5
Lock Washer 8 mm, Stainless
234181601
$0.55
6
Flat Washer 8 mm, Stainless
234082600
$2.43
7
FUEL TANK STRAP - Call your local BRP dealership
204560270
Unavailable
9
HEX. SCREW M8 X 80 - Call your local BRP dealership
207188060
Unavailable
10
Flat Washer 8 mm, Stainless
234082600
$2.43
11
Hex. Elastic Nut M8
232581600
$1.48
13
Black, Dart
293730006
$0.99
14
NEOPRENE PAD - Call your local BRP dealership
204560191
Unavailable
15
MUFFLER RUBBER PAD - Call your local BRP dealership
204060702
Unavailable
16
HOSE 16 MM - Call your local BRP dealership
204560358
Unavailable
17
NORMA CLAMP - Call your local BRP dealership
293650069
Unavailable
18
Tridon Gear Clamp
293650170
$1.99
20
HOSE 1/4 - Call your local BRP dealership
204560178
Unavailable
21
HOSE 5/16 - Call your local BRP dealership
204560396
Unavailable
22
CONNECTOR BOX - Call your local BRP dealership
275500428
Unavailable
23
Hose Clamp
204130156
Unavailable
24
Elbow Fitting 90°
293710105
$14.22
25
STOPPER CONNECTOR - Call your local BRP dealership
275500429
Unavailable
26
SLIT CONDUIT, METER - Call your local BRP dealership
204550028
Unavailable
27
Tie Wrap 142 mm
293750002
$1.25
28
FILLER NECK - Call your local BRP dealership
204560182
Unavailable
29
SPACER - Call your local BRP dealership This part replaces 275500801.
204560188
Unavailable
30
Phillips Screw M4 X 35
208643560
Unavailable
31
Flat Washer 4 mm
234040600
$0.55
32
Elastic Stop Nut M4
232541600
$1.15
33
Filler Neck Hose
204560294
Unavailable
34
NORMA CLAMP - Call your local BRP dealership
293650174
Unavailable
35
Tie-Rap 180 mm
414115200
$0.11
36
FUEL PUMP MODULE ASS'Y - Call your local BRP dealership | Includes 23 to 25
204560418
Unavailable
37
FUEL PUMP MODULE ASS'Y - Call your local BRP dealership | Includes 23 to 25
204560418
Unavailable
38
Fuel Filter, Bosch
219700368
$39.99
39
Elastic Stop Nut 5 mm
232551200
$1.47
40
Flat Washer 5 mm, Stainless
234052400
$2.85
41
Gasket
293250088
$14.99
42
C-Ring, 9 Studs
275500679
$77.49
43
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
44
Circlip 5 mm
293370002
$5.50
