01- Engine And Air Intake Silencer

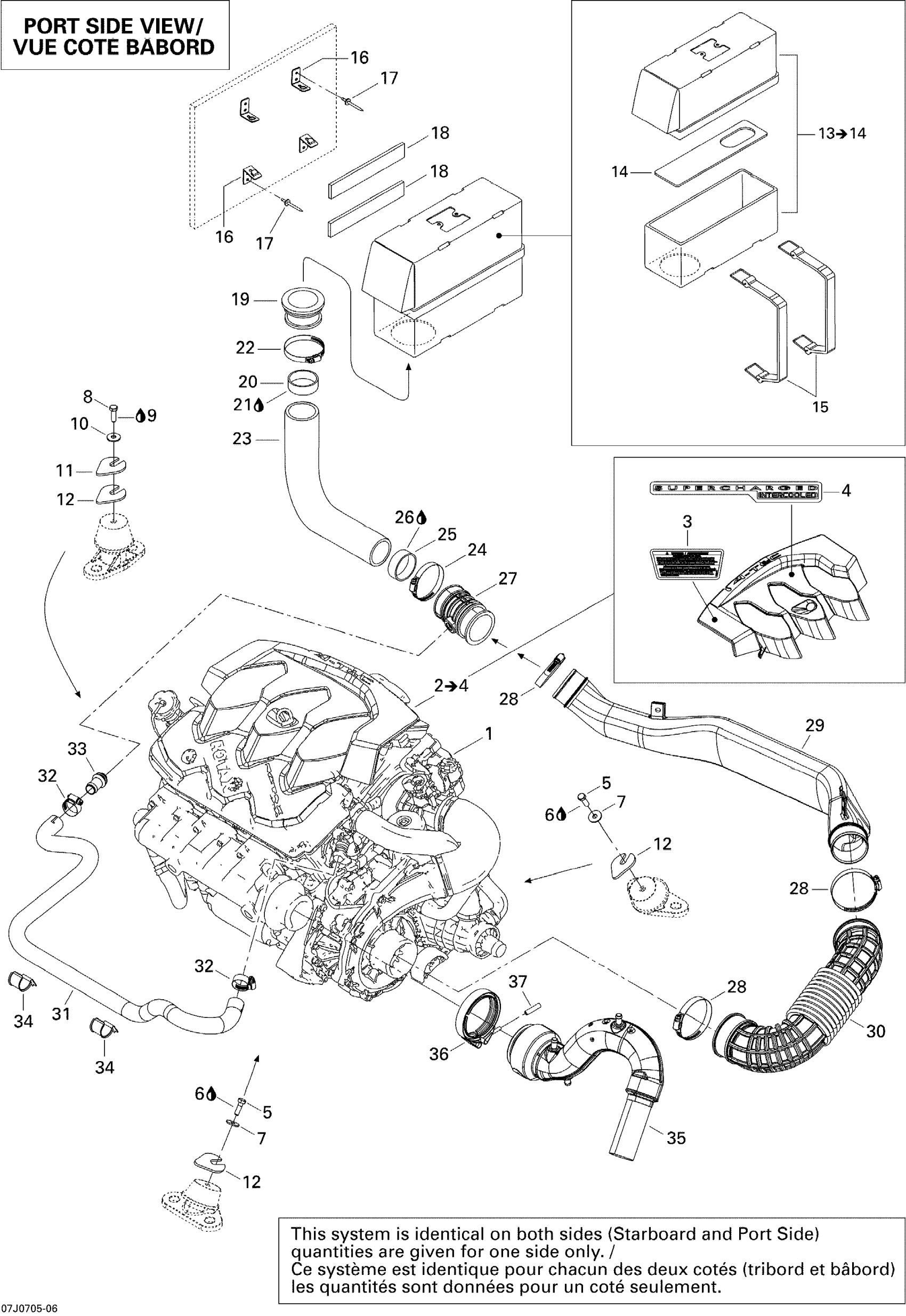

Sea-doo Speedster WAKE 215IC, 2007 01- Engine And Air Intake Silencer Diagram
#
1
Rotax Engine 4 Strokes, 1503 SCIC
204250392
Unavailable
2
COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.
270000677
Unavailable
3
WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership
219902674
Unavailable
4
IDENTIFICATION DECAL, MOTOR SCIC - Call your local BRP dealership
219902676
Unavailable
5
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
6
Loctite 243, 10 ml
293800060
$21.49
7
Flat Washer 8 mm, Stainless
234082600
$2.43
8
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
9
Loctite 243, 10 ml
293800060
$21.49
10
Flat Washer 8 mm, Stainless
234082600
$2.43
11
SHIM 1.3 MM - Call your local BRP dealership
270000025
Unavailable
12
SHIM 0.4 MM - Call your local BRP dealership
270000024
Unavailable
13
Air Silencer Ass'y | Includes 13 to 14
204250323
Unavailable
14
Air Silencer Divider
204250324
Unavailable
15
Retainer Strap
293850097
$11.64
16
Strap Clip 90°
204060017
Unavailable
17
Pop Rivet 3/16"
293150088
$0.99
18
NEOPRENE, METER - Call your local BRP dealership
202000024
Unavailable
19
INTAKE ADAPTATOR - Call your local BRP dealership
508000254
Unavailable
20
ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership
204250275
Unavailable
21
ADHESIVE LOCTITE 495 - Call your local BRP dealership
293800021
Unavailable
22
Tridon Clamp
293650179
$11.49
23
INTAKE HOSE - Call your local BRP dealership
204340435
Unavailable
24
Tridon Clamp
293650179
$11.49
25
ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership
204250275
Unavailable
26
ADHESIVE LOCTITE 495 - Call your local BRP dealership
293800021
Unavailable
27
Adaptor Hose, Engine
204250276
Unavailable
28
Tridon Clamp
293650179
$11.49
29
Intake Hose
273000185
Unavailable
30
INTAKE HOSE - Call your local BRP dealership | Without Catalyst
273000188
Unavailable
31
FORMED HOSE - Call your local BRP dealership
270000808
Unavailable
32
Tridon Gear Clamp
293650051
$4.19
33
Breather Valve
273000234
$14.49
34
Retainer
275500664
$14.75
35
EXHAUST PIPE - Call your local BRP dealership
274001049
Unavailable
36
Exhaust Clamp This part replaces 274000959.
274001472
$58.99
37
Polyurethane Hose 10000Mm Long
219704410
$56.99
