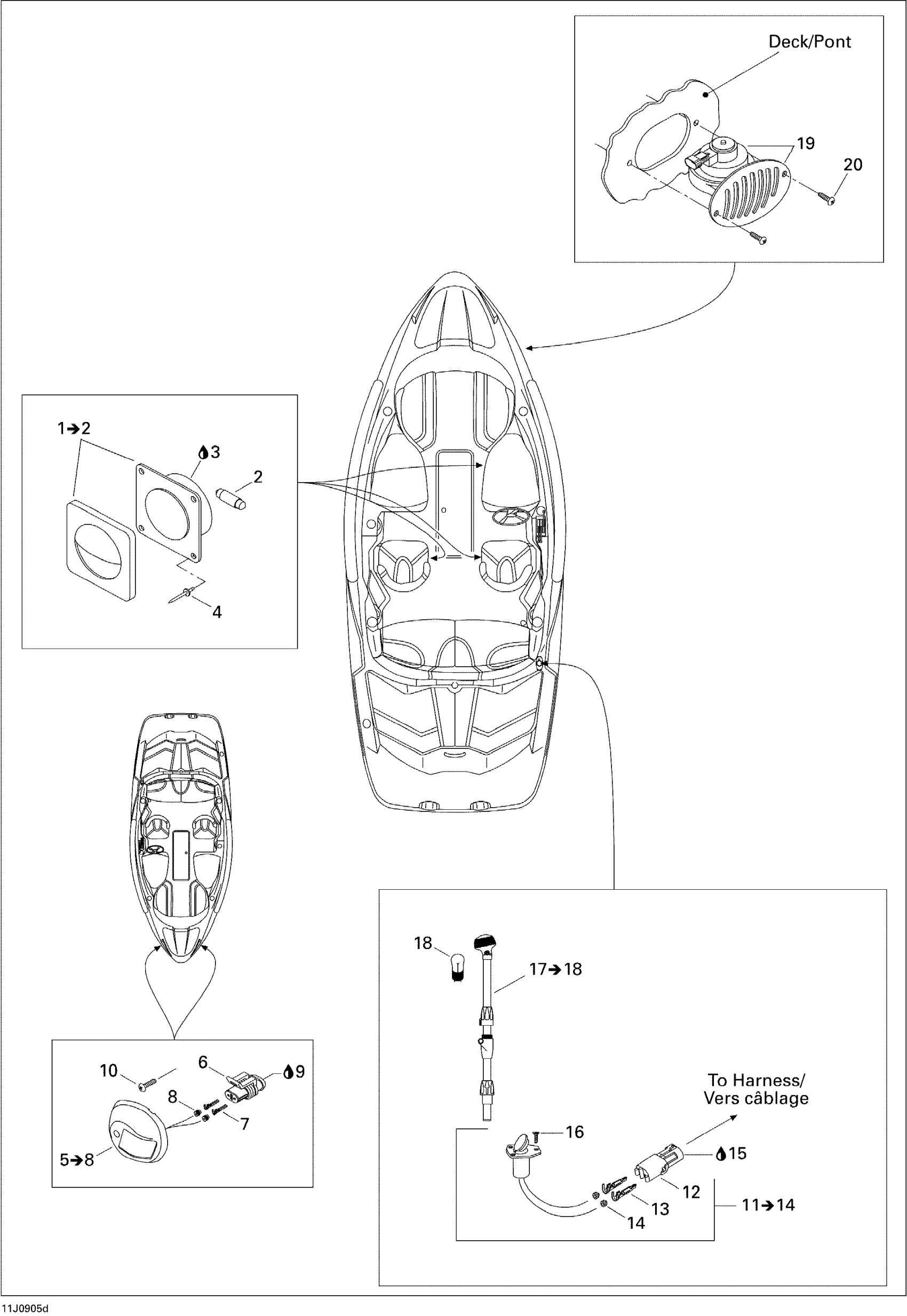

Sea-doo Speedster Wake, 2 x 215 SCIC, 2009 Electrical Accessories 4 Diagram

#

Description
Price

1

Courtesy Light Ass'y | Includes 29 to 30

204470026

$47.49

2

BULB - Call your local BRP dealership

204470081

Unavailable

3

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

4

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

5

GREEN NAVIGATION LAMP ASSY, STARBOARD - Call your local BRP dealership | Includes 4 to 7

204470755

Unavailable

5

RED NAVIGATION LAMP ASSY, PORT SIDE - Call your local BRP dealership | Includes 8 to 11

204470754

Unavailable

6

Female Housing, 2 Circuits

409209500

$15.27

7

Female Terminal

278001014

$3.28

8

Wire Seal

278001013

$3.28

9

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

10

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

11

REAR LAMP BASE ASSY - Call your local BRP dealership | 210 Challenger This part replaces 204470643.

204470642

Unavailable

12

Female Housing, 2 Circuits

278000217

$9.59

13

Male Terminal | XT Models

278000222

$3.19

14

Wire Seal

278000218

$4.39

15

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

16

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

17

LAMP POLE 62 - Call your local BRP dealership | Includes 20 to 21, Models With Tower

204471207

Unavailable

18

Bulb

204470053

Unavailable

19

HORN - Call your local BRP dealership

204470801

Unavailable

20

Phillips Tapping Screw M4.2 X 32

209943260

$1.47
