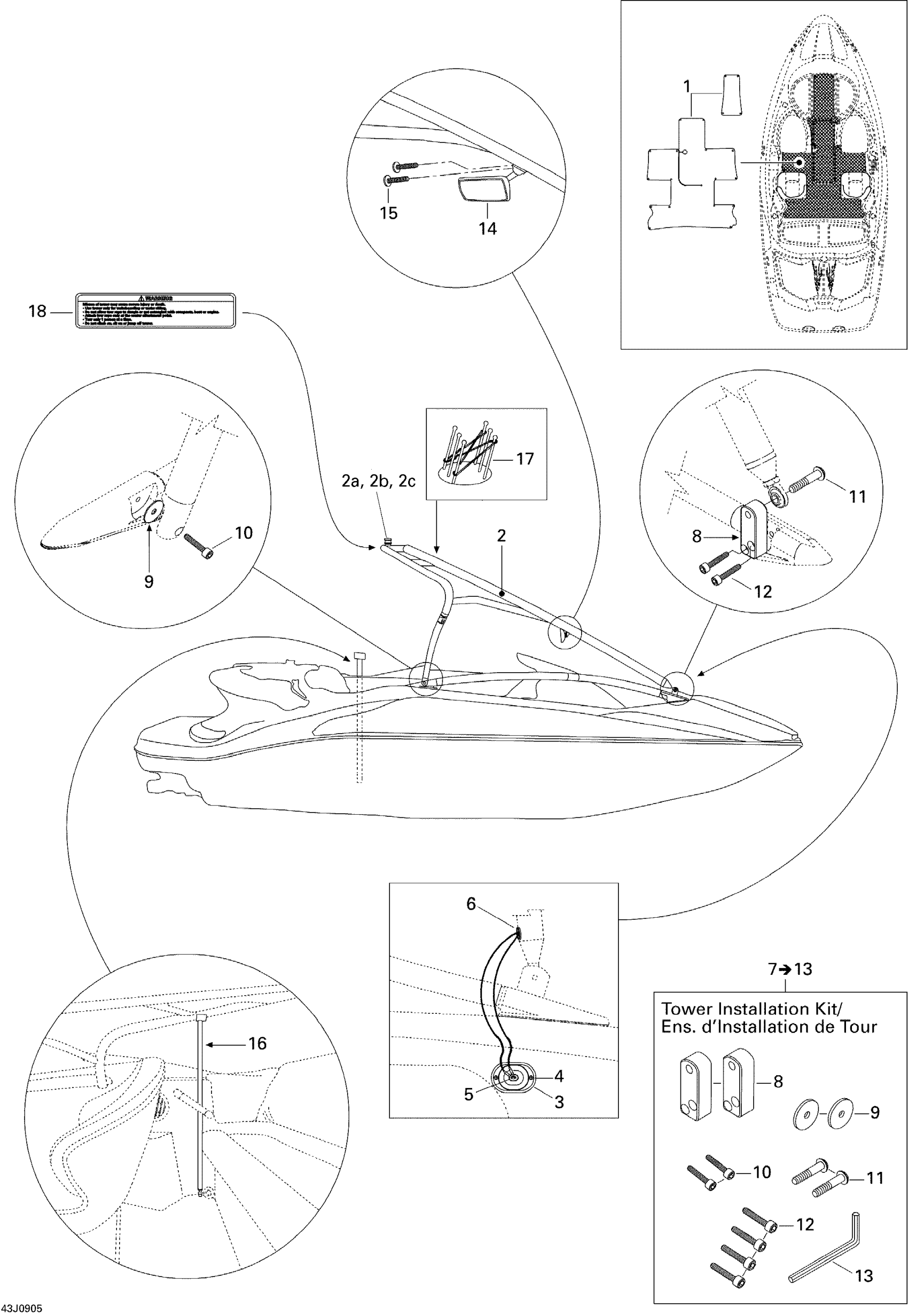

Sea-doo Speedster Wake, 2 x 215 SCIC, 2009 Tower Diagram
#
Description
Price
1
COCKPIT CARPET - Call your local BRP dealership
204950106
Unavailable
2
TOWER ASS'Y - Call your local BRP dealership
204950120
Unavailable
2a
NYLON SWIVEL FOR TOWER 204950120 - Call your local BRP dealership
295501114
Unavailable
2b
BOLT FOR TOWER 204950120 - Call your local BRP dealership
295501115
Unavailable
2c
SKI TOW CAP FOR TOWER 204950120 - Call your local BRP dealership
295501116
Unavailable
3
RECESS CABLE CUP - Call your local BRP dealership
204950109
Unavailable
4
Phillips Tapping Screw 3.5 X 19
250000092
Unavailable
5
Grommet
204072418
Unavailable
6
Grommet
204072437
Unavailable
7
TOWER INSTALLATION HARDWARE KIT - Call your local BRP dealership | Includes 2 to 9
204950190
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Washer, Nylon
204100158
Unavailable
10
SOCKET HEAD SCREW 3/8-16 X 1-1/2 - Call your local BRP dealership
204100094
Unavailable
11
Not Available As Spare Part - Friction Washer
Unavailable
12
Not Available As Spare Part - Friction Washer
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
SKI MIRROR - Call your local BRP dealership This part replaces 204071420.
295100386
Unavailable
15
PHILLIPS SCREW 10-32 X 1? - Call your local BRP dealership
204100129
Unavailable
16
TOWER SUPPORT - Call your local BRP dealership
204072003
Unavailable
17
WAKEBOARD RACK - Call your local BRP dealership
204950147
Unavailable
18
WARNING DECAL, TOWER - Call your local BRP dealership
204901340
Unavailable
