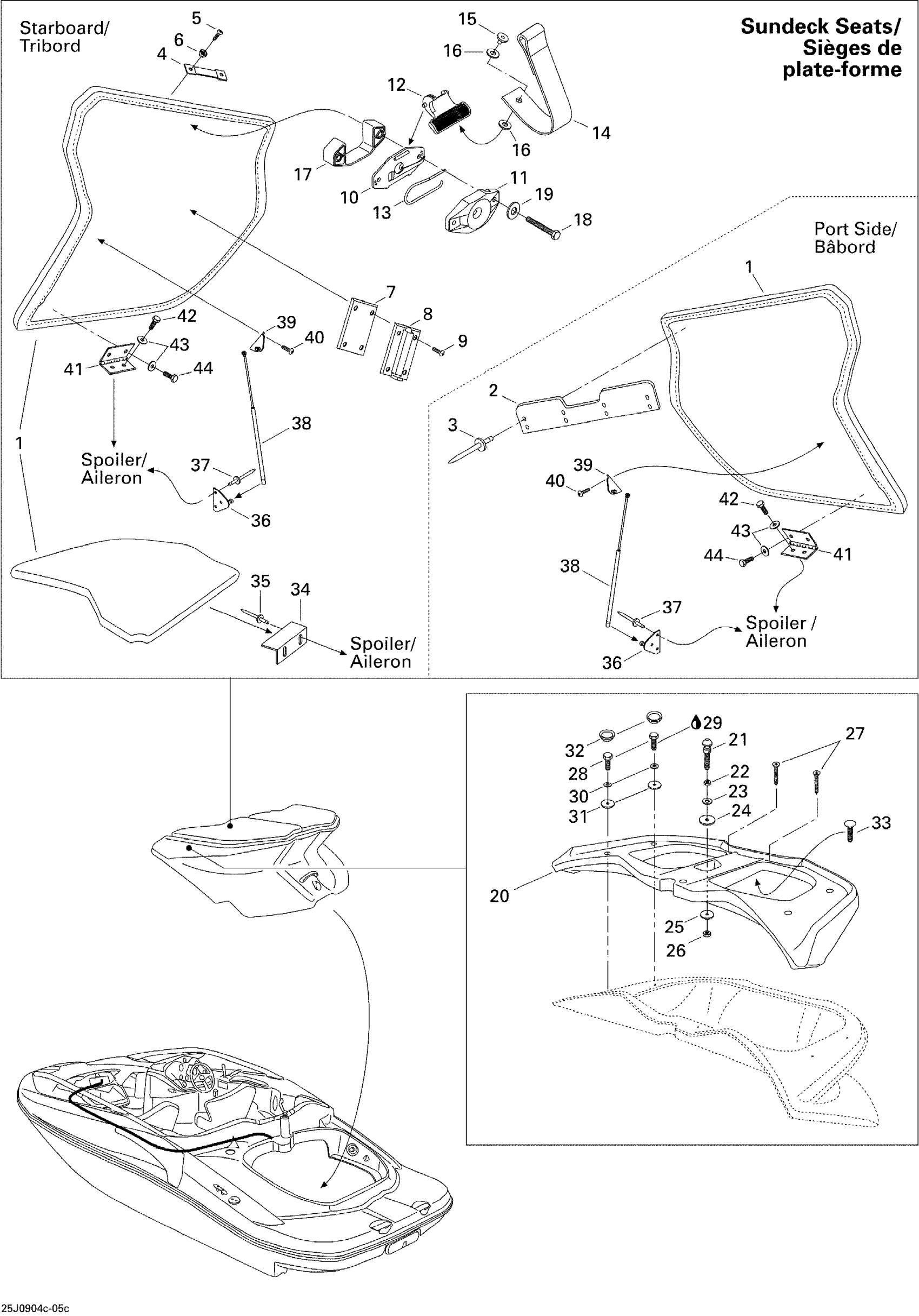

Sea-doo Speedster Wake, 2 x 215 SCIC, 2009 09- Seat 3 Diagram
#
1
Sunpad Door Ass'y, Port Side | Viper Red
204613415
Unavailable
1
Sunpad Door Ass'y, Starboard | Viper Red
204613417
Unavailable
2
Retainer Plate
204612684
Unavailable
3
Pop Rivet 3/16"
293150008
$0.50
4
Loop | Viper Red
204613508
Unavailable
5
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership
204100049
Unavailable
6
FINITION WASHER - Call your local BRP dealership
204100057
Unavailable
7
LATCH SHIM - Call your local BRP dealership
204612664
Unavailable
8
SLIDE LATCH - Call your local BRP dealership
204612641
Unavailable
9
TAPPING SCREW - Call your local BRP dealership
204100082
Unavailable
10
Latch Ass'y
269700109
$24.99
11
Latch Ass'y
269700109
$24.99
12
Latch Ass'y
269700109
$24.99
13
Latch Spring
269700017
$9.19
14
Strap | Viper Red
204613507
Unavailable
15
Pop Rivet 3/16"
293150039
$1.49
16
Flat Washer 5 mm, Stainless
234052600
$0.77
17
SHIM - Call your local BRP dealership
269700015
Unavailable
18
HEX. BOLT TAPPING - Call your local BRP dealership
204100141
Unavailable
19
Stainless Flat Washer M6
234061600
$0.33
20
Black, Spoiler
204613414
Unavailable
21
LATCH STUD - Call your local BRP dealership
291000689
Unavailable
22
Hex. Jam Nut M10
232100600
$2.22
23
Flat Washer 10 mm, Stainless
234002600
$2.22
24
RUBBER WASHER - Call your local BRP dealership
291000628
Unavailable
25
Flat Washer 10 mm, Stainless
234002600
$2.22
26
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
27
PHILLIPS TAPPING SCREW #10 X 1-1/4 - Call your local BRP dealership
204100164
Unavailable
28
Hex. Screw M6 X 25, Scotch Grip | With Catalyst
207362560
$1.47
29
Loctite 243, 10 ml
293800060
$21.49
30
Flat Washer M6, Stainless
234062600
$0.77
31
Flat Washer 10 mm, Stainless
234002600
$2.22
32
BLACK CAP 1 1/2 - Call your local BRP dealership
204130190
Unavailable
33
Dart
293730021
$7.79
34
KEEPER - Call your local BRP dealership
204070060
Unavailable
35
Pop Rivet 3/16"
293150039
$1.49
36
SHOCK BRACKET - Call your local BRP dealership
204073065
Unavailable
37
Pop Rivet 3/16"
293150039
$1.49
38
GAS SHOCK - Call your local BRP dealership
204071874
Unavailable
39
Shock Bracket
204073074
$27.99
40
SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership
204100073
Unavailable
41
SUNDECK HINGE - Call your local BRP dealership
204612769
Unavailable
42
TAPPING SCREW 1/4-20 X 3/4 - Call your local BRP dealership
204100134
Unavailable
43
Stainless Flat Washer M6
234061600
$0.33
44
TAPPING SCREW 1/4-20 X 1/2 - Call your local BRP dealership
204100137
Unavailable
