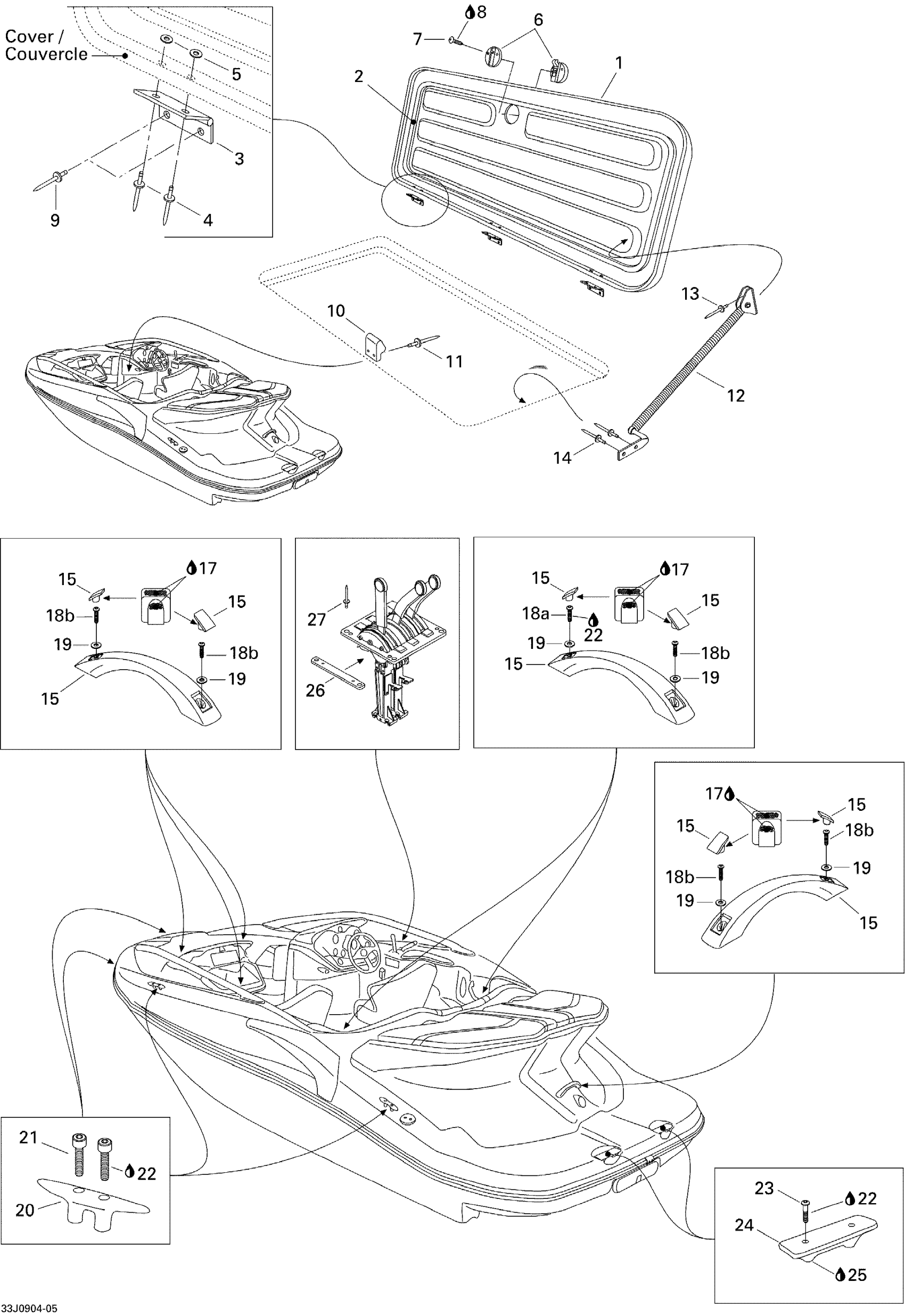

Sea-doo Speedster Wake, 2 x 215 SCIC, 2009 Central Cover And Accessories Diagram

#

Description
Price

1

CENTER COVER - Call your local BRP dealership

204073144

Unavailable

2

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

3

HINGE - Call your local BRP dealership

204072601

Unavailable

4

Avdel Rivet 3/16"

293150037

$0.56

5

Flat Washer M5, Stainless

234051600

$0.77

6

LATCH ASS'Y - Call your local BRP dealership

204073347

Unavailable

7

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

8

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

9

Avdel Rivet 3/16"

293150037

$0.56

10

LATCH BRACKET - Call your local BRP dealership

204070050

Unavailable

11

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

12

SPRING SEAT - Call your local BRP dealership

204000071

Unavailable

13

Pop Rivet 3/16"

204000081

$1.49

14

Pop Rivet 3/16"

293150043

$2.09

15

GRIP HANDLE, BLACK - Call your local BRP dealership

204073190

Unavailable

17

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

18a

SOCKET SCREW M6 X 25 - Call your local BRP dealership

205462560

Unavailable

18b

SOCKET HEAD SCREW M6 X 30, SCOTCH GRIP - Call your local BRP dealership

205963060

Unavailable

19

Stainless Flat Washer M6

234061600

$0.33

20

CLEAT - Call your local BRP dealership | STD

204070592

Unavailable

21

SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership | STD

204100144

Unavailable

22

Loctite 243, 10 ml

293800060

$21.49

23

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

205364060

Unavailable

24

GRIP HANDLE, BLACK - Call your local BRP dealership

204070194

Unavailable

25

Silicone Sealant 51388, 300 ml

296000309

$36.99

26

SHIFTER INSERT - Call your local BRP dealership

293450061

Unavailable

27

Pop Rivet 3/16"

293150013

$1.37
