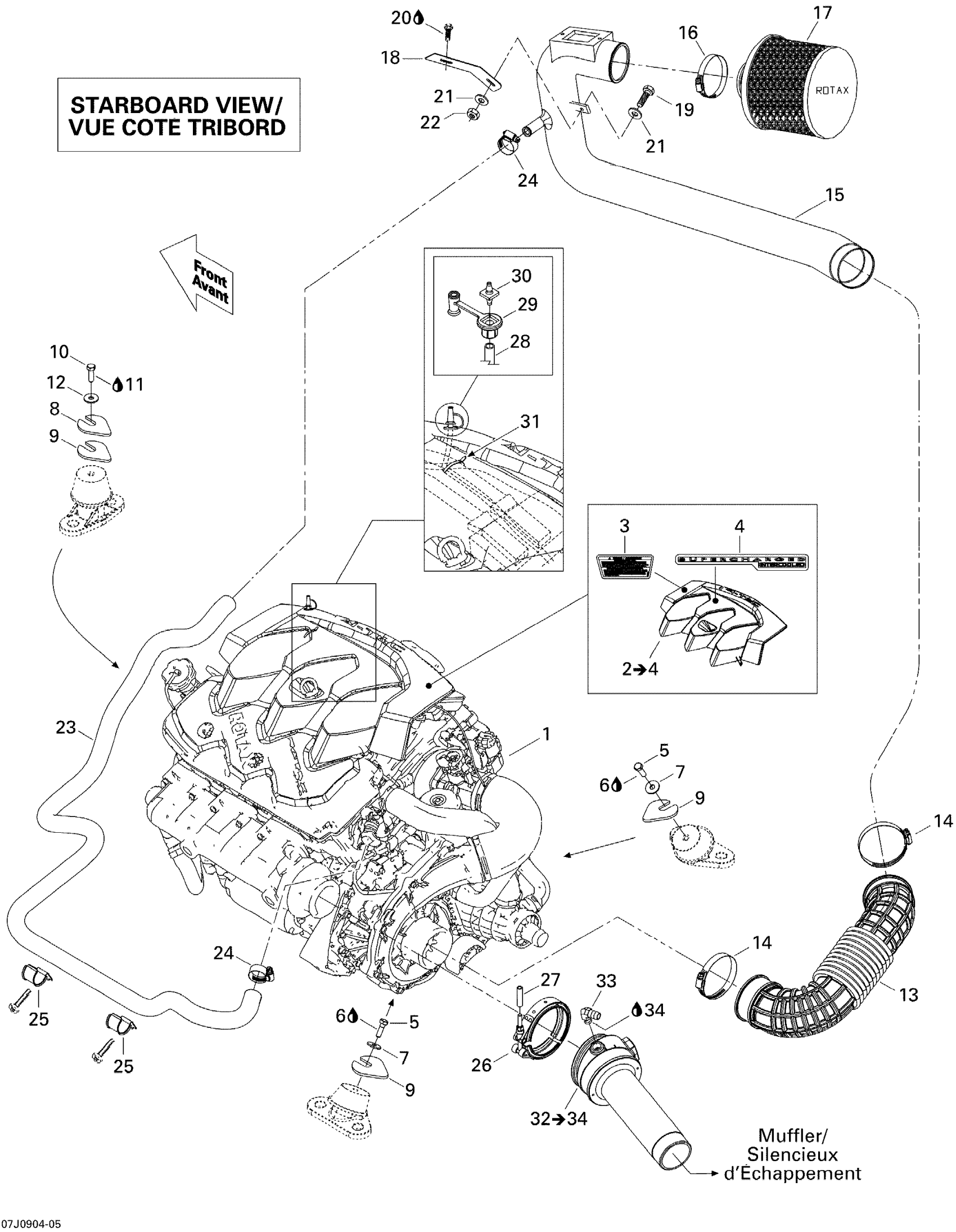

Sea-doo Speedster Wake, 2 x 215 SCIC, 2009 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Engine Long Block This part replaces 420150338.

420150394

$4.00

1

Engine Long Block This part replaces 420150338.

420150394

$4.00

2

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

3

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

4

IDENTIFICATION DECAL, MOTOR SCIC - Call your local BRP dealership

219902676

Unavailable

5

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

6

Loctite 243, 10 ml

293800060

$21.49

7

Flat Washer 8 mm, Stainless

234082600

$2.43

8

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

9

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

10

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

11

Loctite 243, 10 ml

293800060

$21.49

12

Flat Washer 8 mm, Stainless

234082600

$2.43

13

INTAKE HOSE - Call your local BRP dealership | Without Catalyst

273000188

Unavailable

14

TRIDON GEAR CLAMP - Call your local BRP dealership

293650061

Unavailable

15

AIR INTAKE TUBE - Call your local BRP dealership | Without Catalyst

204250437

Unavailable

16

Tridon Clamp

293650179

$11.49

17

Air Filter This part replaces 204250436.

204250466

$137.99

18

BRACKET - Call your local BRP dealership | Without Catalyst

204250404

Unavailable

19

Hex. Screw M6 X 30

207163060

$1.48

20

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

21

Flat Washer, Stainless/Neoprene

211200055

$0.73

22

Hex. Elastic Stop Nut M6

232561600

$1.15

23

FORMED HOSE - Call your local BRP dealership

270000808

Unavailable

24

Tridon Gear Clamp

293650051

$4.19

25

Retainer

275500664

$14.75

26

Exhaust Clamp

274001417

$58.99

27

Polyurethane Hose 10000Mm Long

219704410

$56.99

28

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

29

GROMMET CAP - Call your local BRP dealership

293830120

Unavailable

30

CONNECTOR - Call your local BRP dealership

293710107

$1.09

31

Tie Wrap 142 mm

293750002

$1.25

32

NEEDS DESCRIPTION | Without Catalyst, Includes 3 to 4 This part replaces 274001354.

423462834

$194.99

33

Elbow Fitting 90° | Without Catalyst

293700023

$20.99

34

Was 293800013 Loctite 56765

219704454

$65.99
