- Speedster SK, 5687, 2000
10- Electrical System

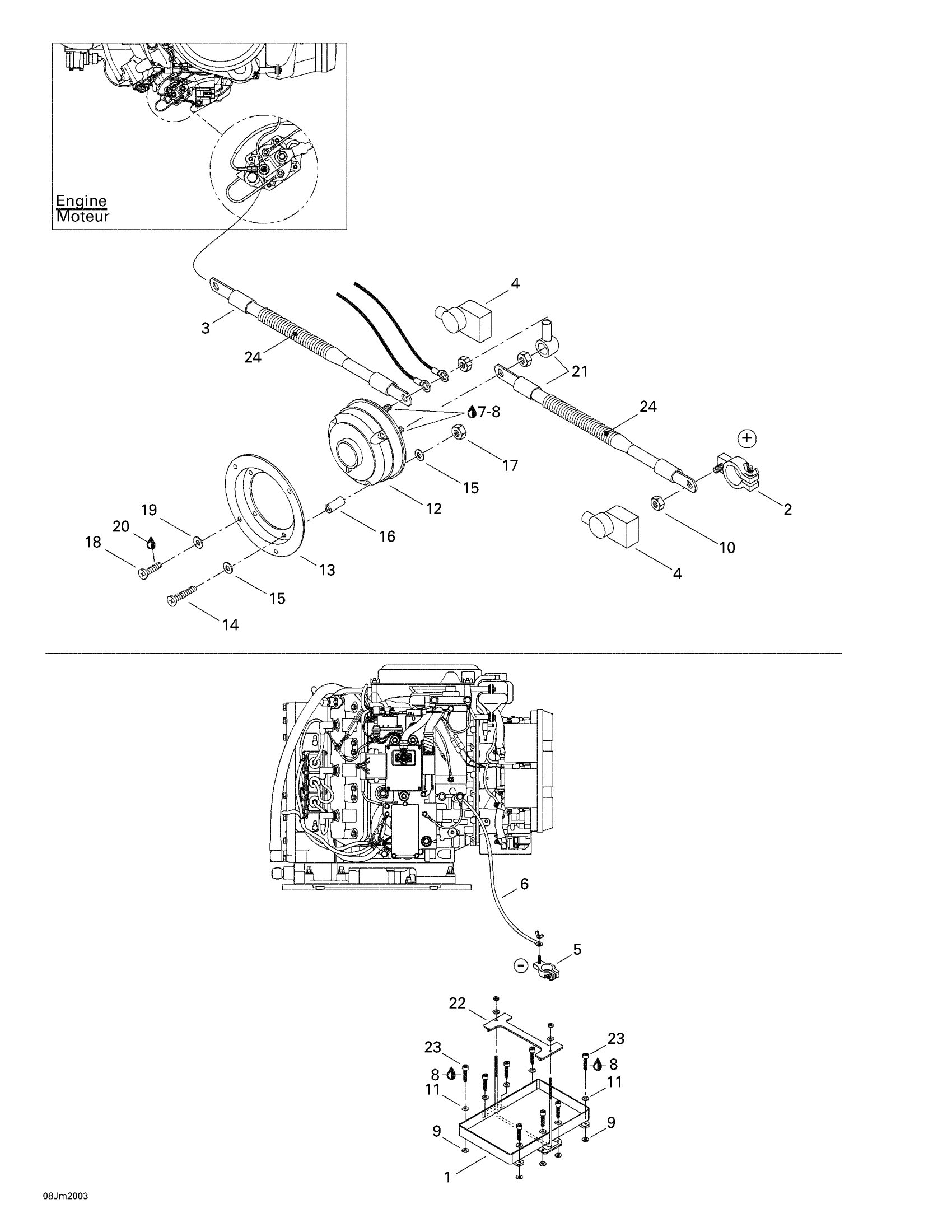

Sea-doo Speedster SK, 5687, 2000 10- Electrical System Diagram
#
Description
Price
1
BATTERY SUPPORT - Call your local BRP dealership
204471008
Unavailable
2
POSITIVE BATTERY POLE - Call your local BRP dealership
204470349
Unavailable
3
Positive Cable, Red
204470386
Unavailable
4
Red Boot
204470388
Unavailable
5
NEGATIVE BATTERY POLE - Call your local BRP dealership
204470348
Unavailable
6
Battery Ground Cable
204470389
Unavailable
7
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
8
Loctite 243, 10 ml
293800060
$21.49
9
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
10
HEX. NUT 3/8-16 - Call your local BRP dealership
211100063
Unavailable
11
Stainless Flat Washer M6
234061600
$0.33
12
Battery Switch
204470329
Unavailable
13
Switch Support
204470251
Unavailable
14
Phillips Screw M5 X 25
208652560
$3.39
15
Flat Washer M5, Stainless
234051600
$0.77
16
NYLON SPACER - Call your local BRP dealership
204470330
Unavailable
17
Hex. Elastic Nut M5 | X
232551600
$1.15
18
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership
208642560
Unavailable
19
Flat Washer 4 mm, Stainless
234041600
$1.15
20
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
219704457
$54.99
21
Positive Switch Cable
204470387
Unavailable
22
TOP BATTERY SUPPORT - Call your local BRP dealership
204471290
Unavailable
23
Socket Head Screw M6 X 25
205062560
$1.69
24
SLIT CONDUIT, METER - Call your local BRP dealership
204550015
Unavailable
