- Speedster SK, 5687, 2000
10- Electrical Accessories 2

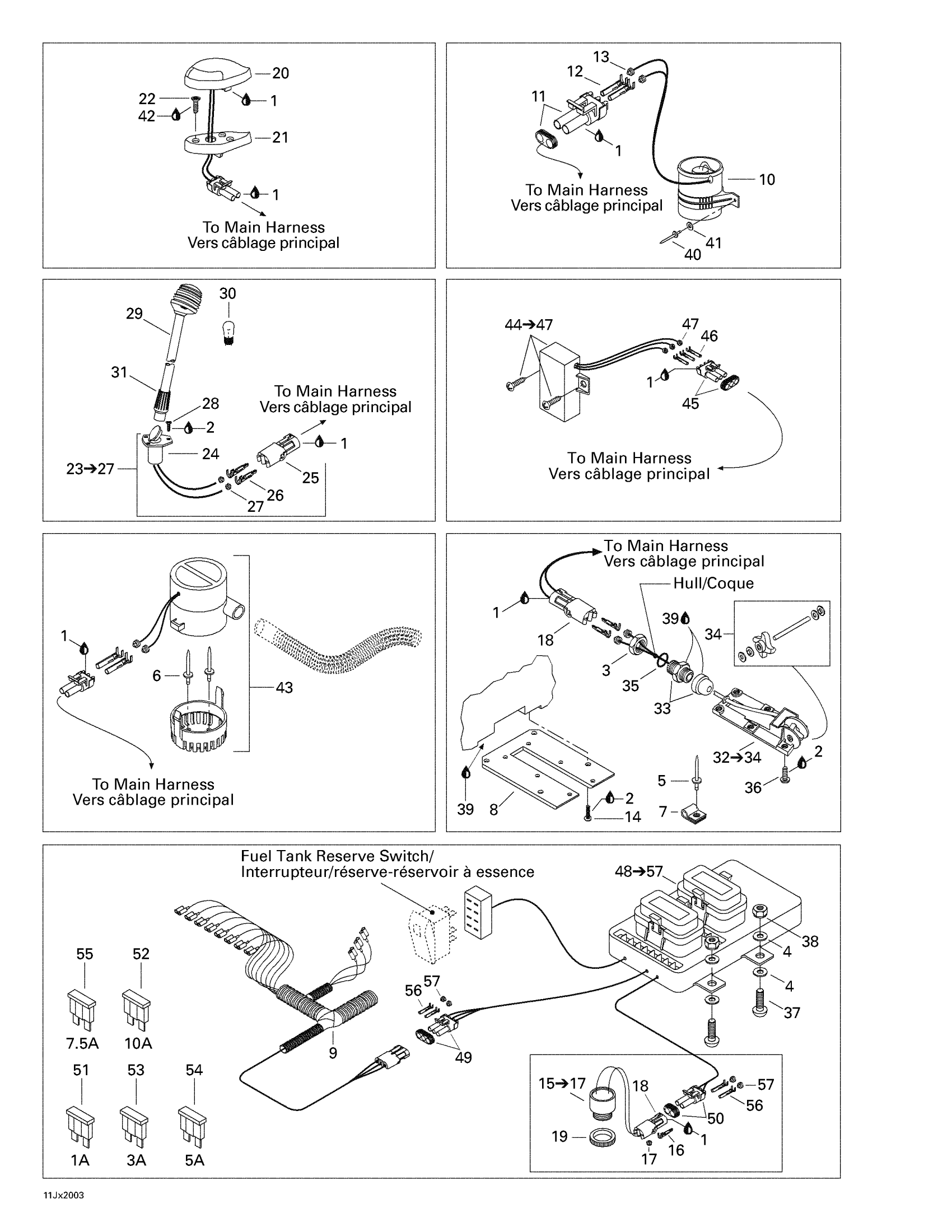

Sea-doo Speedster SK, 5687, 2000 10- Electrical Accessories 2 Diagram
#
1
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
2
Loctite 243, 10 ml
293800060
$21.49
3
LOCKING NUT - Call your local BRP dealership
293710032
Unavailable
4
Flat Washer M6, Stainless
234062600
$0.77
5
Avdel Rivet 3/16"
293150037
$0.56
6
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
7
Cable Clamp 3/16”
204100026
Unavailable
8
Sensor Support
204470538
Unavailable
9
Accessories Harness
204470468
Unavailable
10
Fan Ass'y | Includes 44 to 47
204470108
$144.99
11
Male Connector, 2 Circuits
278000220
$15.49
12
Female Terminal
278000223
$3.19
13
Wire Seal
278000218
$4.39
14
Phillips Screw M6 X 35 | W/O Weedless System
208563560
$2.00
15
BUZZER ASSEMBY - Call your local BRP dealership | Includes 15 - 17.
278000887
Unavailable
16
Male Terminal | XT Models
278000222
$3.19
17
Wire Seal
278000218
$4.39
18
Female Housing, 2 Circuits
278000217
$9.59
19
Buzzer Nut
278000707
Unavailable
20
Front Lamp
204470311
Unavailable
21
FRONT LAMP SUPPORT - Call your local BRP dealership
204470072
Unavailable
22
Phillips Screw M4 X 16
208641660
$0.90
23
Rear Light Base Ass'y | Includes 33 to 36
278000674
Unavailable
24
Rear Lamp Base Ass'y | Includes 12 to 16
204471177
Unavailable
25
Female Housing, 2 Circuits
278000217
$9.59
26
Male Terminal | XT Models
278000222
$3.19
27
Wire Seal
278000218
$4.39
28
SCREW M4 X 30 - Call your local BRP dealership
208443070
Unavailable
29
Rear Lamp Pole | Includes 29 - 31.
204470206
Unavailable
30
Bulb
204470053
Unavailable
31
COLLAR - Call your local BRP dealership
204470350
Unavailable
32
SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.
278001998
Unavailable
33
ELECTRIC CONNECTION - Call your local BRP dealership
293710031
Unavailable
34
Paddle Wheel Kit
295500108
Unavailable
35
SEAL WASHER - Call your local BRP dealership
278000416
Unavailable
36
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership
208551060
Unavailable
37
PHILLIPS SCREW M6 X 25 - Call your local BRP dealership
208662560
Unavailable
38
Hex. Elastic Stop Nut M6
232561600
$1.15
39
Silicone Sealant 51388, 300 ml
296000309
$36.99
40
Pop Rivet 3/16"
293150008
$0.50
41
Flat Washer 5 mm, Stainless
234052600
$0.77
42
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
219704457
$54.99
43
Bilge Pump This part replaces 204470220.
278002020
$99.49
44
Water sensor | Includes 44 - 47.
204470476
Unavailable
45
Male Housing, 3 Circuits
278000273
$9.59
46
Female Terminal
409007300
$0.45
47
Wire Seal
710000048
$7.69
48
Fuse Block | Includes 48 - 57.
204470470
Unavailable
49
Male Housing, 3 Circuits
278000273
$9.59
50
Male Connector, 2 Circuits
278000220
$15.49
51
FUSE, 1 AMPERE - Call your local BRP dealership
409012800
Unavailable
52
Fuse, 10 Amperes | North America
278001197
$2.21
53
FUSE, 3 AMPERES - Call your local BRP dealership | CE
278001196
Unavailable
54
Fuse, 5 Amperes | CE
278000344
$3.28
55
FUSE, 7.5 AMPERES - Call your local BRP dealership | CE
278000704
Unavailable
56
Female Terminal
278000223
$3.19
57
Wire Seal
278000218
$4.39
