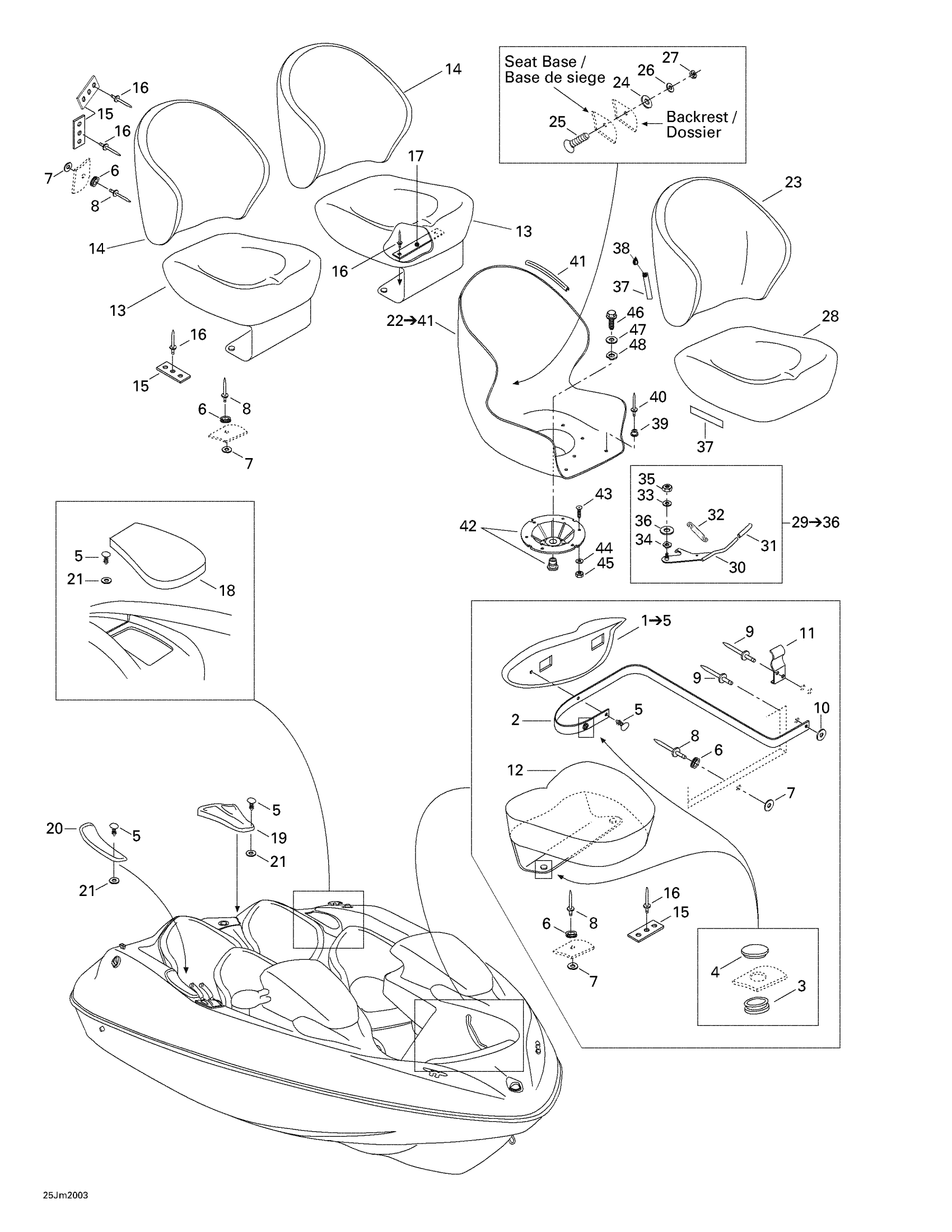

Sea-doo Speedster SK, 5687, 2000 09- Seats Diagram
#
1
Front Backrest Ass'y (Bright Yellow) | Includes 1 - 5.
204610502
Unavailable
2
Retaining Strap
204610389
Unavailable
3
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
4
SNAP COVER - Call your local BRP dealership
204000085
Unavailable
5
Black, Dart
293730006
$0.99
6
BOTTOM SNAP - Call your local BRP dealership
204000084
Unavailable
7
Flat Washer M3, Stainless
234032600
$0.55
8
RIVET_POP 1/8 X ,625 - Call your local BRP dealership
293150023
Unavailable
9
Pop Rivet 3/16"
293150043
$2.09
10
Flat Washer 5 mm, Stainless
234052600
$0.77
11
SEAT SUPPORT - Call your local BRP dealership
204613998
Unavailable
12
Seat Cushion (Bright Yellow)
204610492
Unavailable
13
Seat Cushion (Bright Yellow)
204610492
Unavailable
14
Backrest Cushion (Bright Yellow)
204610641
Unavailable
15
VELCRO STRIP - Call your local BRP dealership
293740004
Unavailable
16
Pop Rivet 3/16"
293150008
$0.50
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Arm Rest Ass'y RH (Bright Yellow)
204610493
Unavailable
Arm Rest Ass'y LH (Bright Yellow)
204610495
Unavailable
19
Arm Rest Ass'y (center)
204610497
Unavailable
20
Driver Arm Rest Ass'y
204610879
Unavailable
21
Flat Washer M6, Stainless
234062600
$0.77
22
Driver Seat Ass'y | Includes 22 - 41.
204610642
Unavailable
23
Backrest Cushion (Bright Yellow)
204610641
Unavailable
24
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
25
Socket Head Screw M4 X 16
205441660
$1.47
26
Flat Washer
204610439
Unavailable
27
NUT-HEXAGONAL DIN.934A2 - Call your local BRP dealership
232041600
Unavailable
28
Seat Cushion (Bright Yellow)
204610492
Unavailable
29
Lever Arm Ass’y
204610523
Unavailable
30
Lever Arm
204610524
Unavailable
31
Handle
204610348
Unavailable
32
SPRING - Call your local BRP dealership
204610349
Unavailable
33
Stainless Flat Washer M6
234061600
$0.33
34
Washer
211200059
Unavailable
35
Hex. Elastic Stop Nut M6
232561600
$1.15
36
Washer (Nylon)
204610440
Unavailable
37
VELCRO STRIP - Call your local BRP dealership
293740004
Unavailable
38
Loctite 4471, 20 G
293800058
Unavailable
39
BOTTOM SNAP - Call your local BRP dealership
204000084
Unavailable
40
Pop Rivet 1/8
293150061
Unavailable
41
TRIM, BLACK - Call your local BRP dealership
204610371
Unavailable
42
SWIVEL PLATE - Call your local BRP dealership
204610513
Unavailable
43
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership
208564060
Unavailable
44
Flat Washer M6, Stainless
234062600
$0.77
45
Hex. Elastic Stop Nut M6
232561600
$1.15
46
SCREW-SHOULDER - Call your local BRP dealership
211000172
Unavailable
47
FLAT WASHER - Call your local BRP dealership
211200058
Unavailable
48
WASHER - Call your local BRP dealership
293200056
Unavailable
