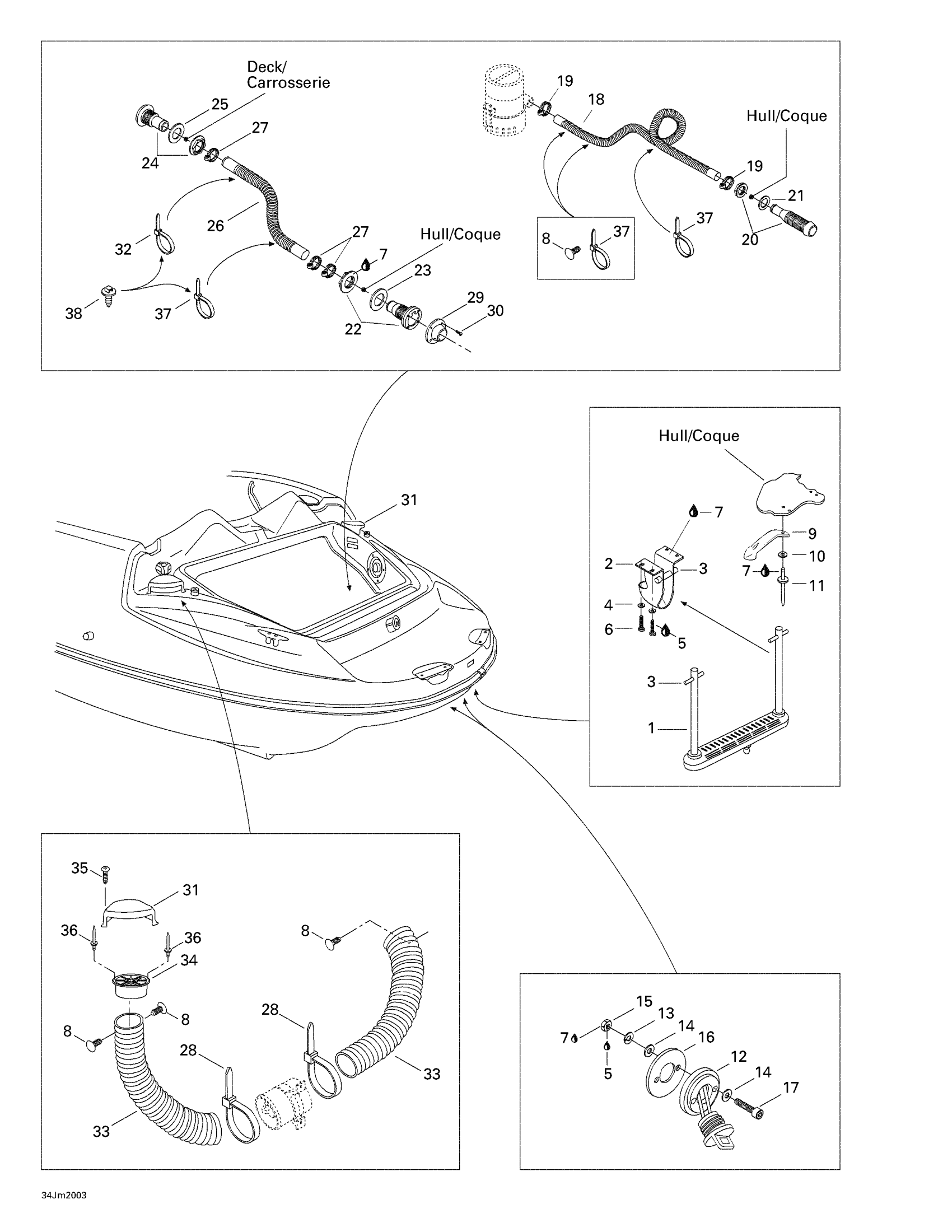

Sea-doo Speedster SK, 5687, 2000 09- Body And Accessories 1 Diagram

#

Description
Price

1

LADDER - Call your local BRP dealership

204060187

Unavailable

2

U-BRACKET - Call your local BRP dealership

204060141

Unavailable

3

ROLL PIN M8 X 55 - Call your local BRP dealership

211300021

Unavailable

4

Lock Washer Helical M6

234161601

$1.15

5

Loctite 243, 10 ml

293800060

$21.49

6

Hex. Screw M6 X 25

207162560

$1.47

7

Silicone Sealant 51388, 300 ml

296000309

$36.99

8

Black, Dart

293730006

$0.99

9

Hood Latch

570027100

$13.49

10

Flat Washer 5 mm, Stainless

234052600

$0.77

11

Pop Rivet 3/16"

293150013

$1.37

12

Drain Plug

292000187

$14.49

13

Lock Washer 4 mm

234141601

$1.15

14

Flat Washer 4 mm

234040600

$0.55

15

NUT-HEXAGONAL DIN.934A2 - Call your local BRP dealership

232041600

Unavailable

16

GASKET - Call your local BRP dealership

293250030

Unavailable

17

Socket Screw M4 X 30

205043060

Unavailable

18

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

19

Tridon Clamp

293650016

$10.99

20

Fitting

293710162

$13.49

21

GASKET - Call your local BRP dealership This part replaces 293250251.

293250006

Unavailable

22

THRU HULL FITTING - Call your local BRP dealership

204060071

Unavailable

23

GASKET - Call your local BRP dealership

292800106

Unavailable

24

FITTING - Call your local BRP dealership

293710060

Unavailable

25

GASKET - Call your local BRP dealership

292800106

Unavailable

26

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable

27

Norma Clamp

293650074

$17.05

28

Tie Rap

293750019

$3.29

29

SCUPPER VALVE - Call your local BRP dealership

204060188

Unavailable

30

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

31

Clam Shell Vent

204050227

Unavailable

32

Tie Wrap 368 mm

293750008

$1.04

33

Was 204050122 Vent Hose 4"

219704358

$25.99

34

Vent Adaptor

204050160

Unavailable

35

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

36

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

37

Tie-Rap 180 mm

414115200

$0.11

38

Mount Dart

293730040

$1.04
