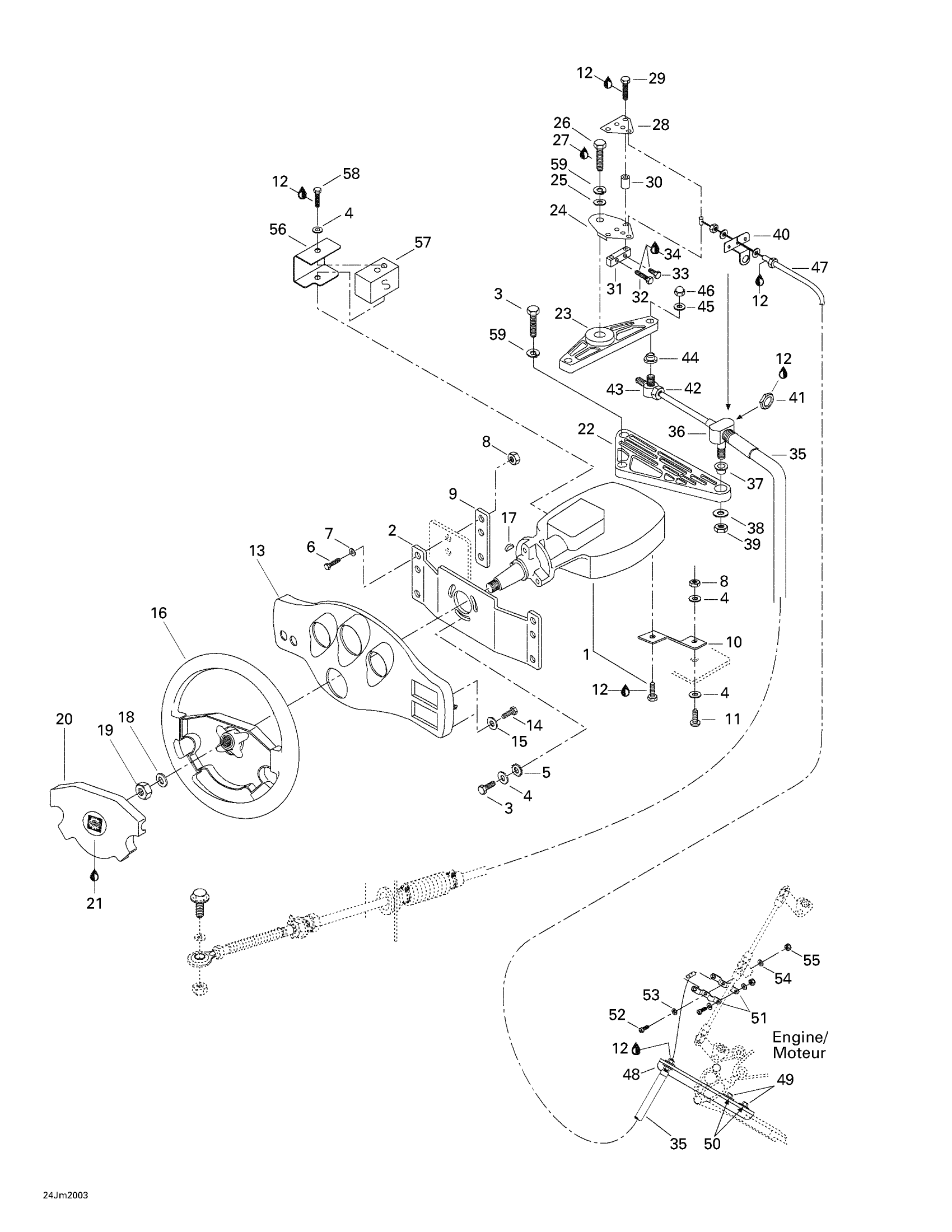

Sea-doo Speedster SK, 5687, 2000 Steering System Diagram

#

Description
Price

1

HELM ASS'Y - Call your local BRP dealership

204390244

Unavailable

2

Steering Support

204390247

Unavailable

3

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

4

Flat Washer M6, Stainless

234062600

$0.77

5

Serrated Lock Washer 8 mm

234481608

$1.15

6

Hex. Screw M6 X 30

207163060

$1.48

7

Stainless Flat Washer M6

234061600

$0.33

8

Hex. Elastic Stop Nut M6

232561600

$1.15

9

Reinforcement Plate

204390130

Unavailable

10

Steering Support

204390243

Unavailable

11

PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

208662560

Unavailable

12

Loctite 243, 10 ml

293800060

$21.49

13

Fascia

204390209

Unavailable

14

Hex. Flange Screw K40 X 25

241142560

$2.64

15

Flat Washer 4 mm, Stainless

234042600

$1.15

16

STEERING, BLACK - Call your local BRP dealership

204390440

Unavailable

17

WOODRUFF KEY - Call your local BRP dealership

277000384

Unavailable

18

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable

19

LOCK NUT 1/2-20 - Call your local BRP dealership

211100021

Unavailable

20

Steering Center (Palma Blue)

204390218

Unavailable

21

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

22

Cable Support

204390125

Unavailable

23

HELM ARM - Call your local BRP dealership

204390250

Unavailable

24

Lower Clip

204390231

Unavailable

25

Spacer

204390057

Unavailable

26

HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership

211000054

Unavailable

27

Loctite 271, 10 ml

293800005

$26.99

28

UPPER CLIP - Call your local BRP dealership

204390267

Unavailable

29

Hex. Screw M6 X 25

207162560

$1.47

30

SPACER 6.7 MM - Call your local BRP dealership

277000584

Unavailable

31

Adjustment Block

204390056

Unavailable

32

Hex. Screw M5 X 35

207153560

Unavailable

33

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152560

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

STEERING CABLE - Call your local BRP dealership

204390212

Unavailable

36

PIVOT 3/8? - Call your local BRP dealership

277000461

Unavailable

37

Flanged Bushing

293350014

$12.99

38

Flat Washer 10 mm, Stainless

234001600

$1.15

39

LOCK NUT - Call your local BRP dealership

211100024

Unavailable

40

Cable Support | CHALLENGER 1800 (5774).

204390232

Unavailable

41

HEX. JAM NUT 5/8-18 - Call your local BRP dealership

204390053

Unavailable

42

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

43

PIVOT - Call your local BRP dealership

277000456

Unavailable

44

BUSHING - Call your local BRP dealership

293350012

Unavailable

45

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

46

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

47

Low Speed Cable Control

204390237

Unavailable

48

Cable Support | CHALLENGER 1800 (5774).

204390233

Unavailable

49

HEX. SCREW M6 X 12 - Call your local BRP dealership

207151260

Unavailable

50

Helical Lock Washer M5

234151601

$1.15

51

Cable Attachment | CHALLENGER 1800 (5774).

204390234

Unavailable

52

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205051660

Unavailable

53

Helical Lock Washer M5

234151601

$1.15

54

Flat Washer M5, Stainless

234051600

$0.77

55

Hex. Elastic Nut M5 | X

232551600

$1.15

56

Bumper Support

204390245

Unavailable

57

Bumper

204390246

Unavailable

58

HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership

204100014

Unavailable

59

Lock Washer 1/4”

211200025

$1.29
