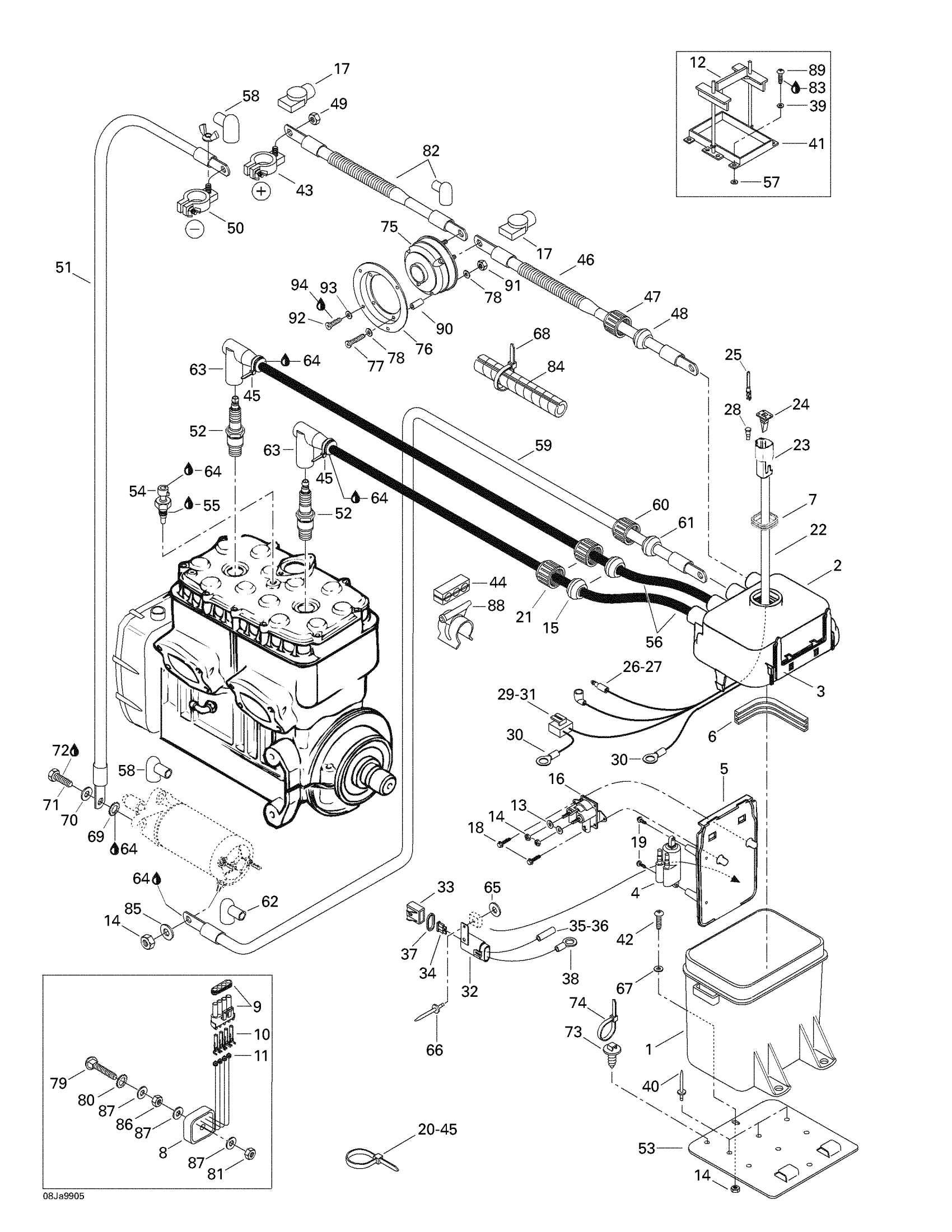

Sea-doo Speedster SK, 5677/5681, 1999 Electrical System Diagram

#

Description
Price

1

High Voltage Box Base

278001089

Unavailable

2

Cover

278001265

Unavailable

3

Ground Plate

278000732

Unavailable

4

IGNITION COIL - Call your local BRP dealership

278000586

Unavailable

5

Mounting Plate

278001193

Unavailable

6

GASKET - Call your local BRP dealership

278000440

Unavailable

7

Gasket

293200030

Unavailable

8

RECTIFIER ASSY - Call your local BRP dealership | Includes 8 - 11.

278001239

Unavailable

9

Male Housing, 4 Circuits

278000395

$15.99

10

Female Terminal

409007300

$0.45

11

Wire Seal

278000218

$4.39

12

TOP BATTERY SUPPORT - Call your local BRP dealership

204471290

Unavailable

13

Stainless Flat Washer M6

234061600

$0.33

14

Hex. Elastic Stop Nut M6

232561600

$1.15

15

Grommet

278000682

Unavailable

16

Starter Relay

278003012

$42.49

17

RED BOOT - Call your local BRP dealership

204470269

Unavailable

18

Hex. Flange Screw M6 X 10

210261040

$1.48

19

14 X 1 UNSL HX WSHR T/AB BLK ZINC - Call your local BRP dealership This part replaces 250000005.

296000365

Unavailable

20

Tie Wrap 94 mm | 4X4

293750001

$1.03

21

Electric Wire Cap

278000100

Unavailable

22

Electric Box Harness | Includes 22 - 31.

204470160

Unavailable

23

Male Terminal Housing, 6 Circuits

710001539

$19.99

24

Female Lock, 6 Circuits

278000735

$3.19

25

Male Terminal

278000631

$4.39

26

Male Terminal

278000230

$4.39

27

Insulated Sheath

278001008

$3.28

28

Sealing Cap

293000052

$3.19

29

Female Terminal

278001114

$3.19

30

Open Barrel

278000992

$2.21

31

Male Connector, 2 Circuits

278001113

$16.86

32

Harness Fuse 15 Amp | Includes 32 - 38.

204470161

Unavailable

33

Fuse Holder Cap

278001326

$7.69

34

Fuse, 15 Amperes

278000343

$3.28

35

Female Terminal | DS 650 X

278001009

$3.19

36

Insulated Sheath

278001007

$3.58

37

Cushion

278000805

$3.28

38

Ring Terminal

278000300

Unavailable

39

Stainless Flat Washer M6

234061600

$0.33

40

Pop Rivet 3/16"

293150008

$0.50

41

BATTERY SUPPORT - Call your local BRP dealership

204471008

Unavailable

42

Hex. Forming Screw M6 X 20

207162060

$1.29

43

Battery Pole (Positive)

278000679

Unavailable

44

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

45

Tie Wrap 142 mm

293750002

$1.25

46

RH Battery Cable (Red) | Includes 46 - 48.

204470335

Unavailable

RH Battery Cable (Red) | Includes 46 - 48.

204470222

Unavailable

47

Electric Wire Cap

278000100

Unavailable

48

GROMMET - Call your local BRP dealership

278000098

Unavailable

49

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

50

Battery Pole (Negative)

278000680

Unavailable

51

RH Battery Ground Cable

204470337

Unavailable

LH Battery Ground Cable

204470336

Unavailable

52

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.23

53

Box Support

204470176

Unavailable

54

Temperature Sensor

278000965

$73.99

55

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

56

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

57

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

58

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

59

RH Starter Cable | Includes 59 - 62.

204470234

Unavailable

LH Starter Cable

204470221

Unavailable

60

Electric Wire Cap

278000100

Unavailable

61

GROMMET - Call your local BRP dealership

278000098

Unavailable

62

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

63

Spark Plug Cap

204470091

Unavailable

64

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

65

Flat Washer, Emhart

213200016

$0.72

66

Pop Rivet 3/16"

293150005

$0.52

67

Flat Washer M6, Stainless

234062600

$0.77

68

Tie-Rap 180 mm

414115200

$0.11

69

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

70

Flat Washer M8, Stainless

234080600

$1.48

71

Hex. Screw M8 X 16

207181660

Unavailable

72

Loctite 271, 10 ml

293800005

$26.99

73

Mount Dart

293730040

$1.04

74

Tie Wrap 142 mm

293750002

$1.25

75

Battery Switch

204470329

Unavailable

76

Switch Support

204470251

Unavailable

77

Phillips Screw M5 X 25

208652560

$3.39

78

Flat Washer M5, Stainless

234051600

$0.77

79

Carriage Bolt 1/4-20 x 2 1/2

211000182

Unavailable

80

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

81

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

82

POSITIVE SWITCH CABLE - Call your local BRP dealership

204470250

Unavailable

83

Loctite 243, 10 ml

293800060

$21.49

84

Not Available As Spare Part - Friction Washer

Unavailable

85

Stainless Flat Washer M6

234061600

$0.33

86

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

87

Stainless Flat Washer M6

234061600

$0.33

88

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

89

Socket Head Screw M6 X 25

205062560

$1.69

90

NYLON SPACER - Call your local BRP dealership

204470330

Unavailable

91

Hex. Elastic Nut M5 | X

232551600

$1.15

92

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

93

Flat Washer 4 mm, Stainless

234041600

$1.15

94

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99
