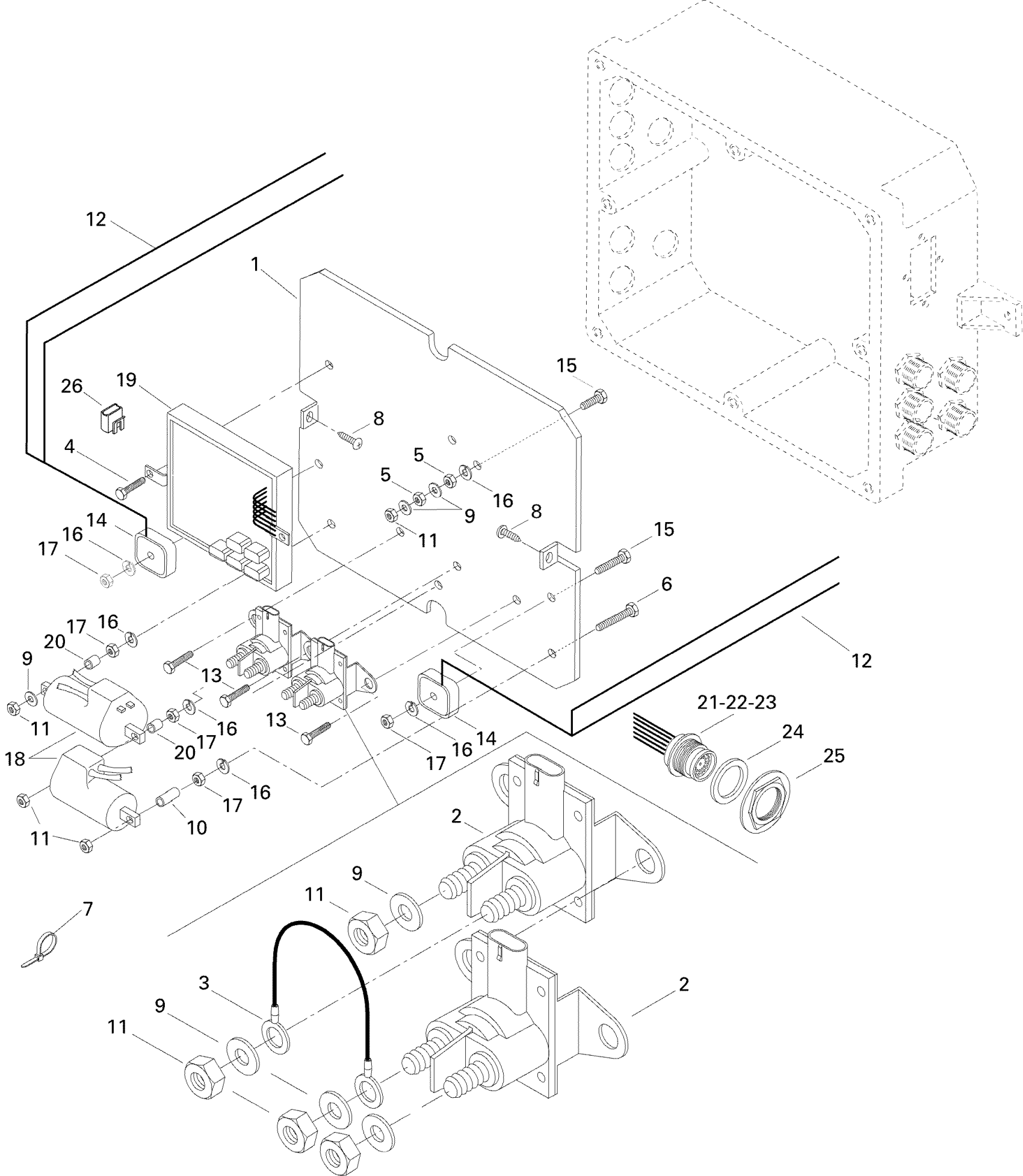

Sea-doo Speedster, 5894, 1996 Electrical Box Speedster Diagram

#

Description
Price

1

Mounting Plate

278000570

Unavailable

2

Starter Relay

278003012

$42.49

3

Junction Cable

204470073

Unavailable

4

Hex. Screw M6 x 16

210261660

Unavailable

5

Hex. Nut M6

232061600

$1.15

6

Hex. Screw M6 X 45

207164560

$1.89

7

Tie Wrap 142 mm

293750002

$1.25

8

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

9

Stainless Flat Washer M6

234061600

$0.33

10

Spacer

278000876

Unavailable

11

Hex. Elastic Stop Nut M6

232561600

$1.15

12

<> Wire (Not Shown) (Incl. It.8, 9)

278000588

Unavailable

12

Male Terminal

278000230

$4.39

12

Insulation Sheath

278000231

$5.08

13

Hex. Flange Screw M6 X 10

210261040

$1.48

14

RECTIFIER ASS'Y - Call your local BRP dealership | Includes 1 - 6.

278000123

Unavailable

15

Hex. Screw M6 X 35

207163560

$1.49

16

Lock Washer Helical M6

234161601

$1.15

17

Hex. Nut M6

232061600

$1.15

18

Ignition Coil R.H

204470005

Unavailable

19

Electronic Module | Includes 21, 22, 23

278000801

Unavailable

20

SPACER - Call your local BRP dealership

278000235

Unavailable

21

Female Housing(Canon)

278000867

Unavailable

22

Male Terminal

278000869

Unavailable

23

Male Terminal(Canon)

278000868

Unavailable

24

Gasket(Canon)

293250053

Unavailable

25

Nut(Canon)

211100029

Unavailable

26

Fuse Holder

204470059

Unavailable
