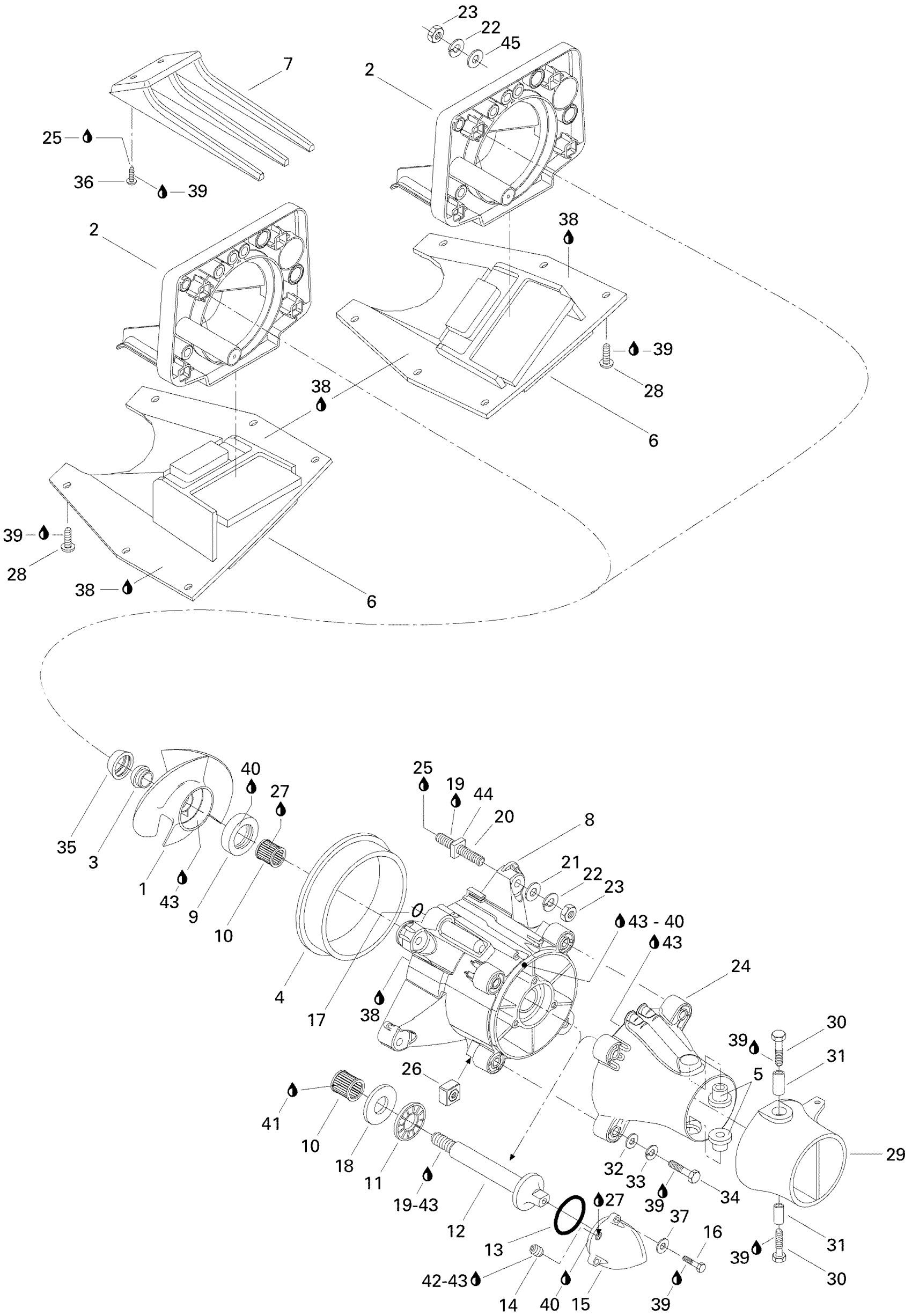

Sea-doo Speedster, 5894, 1996 05- Propulsion Speedster Diagram
#
1
Impeller Assy - Call your local BRP dealership
271000497
Unavailable
2
PUMP SUPPORT - Call your local BRP dealership
204120001
Unavailable
3
Impeller Boot
271000516
$9.59
4
Wear Ring
271000290
$58.49
5
Venturi Bushing
293900001
$7.62
6
Shoe - RH
204120016
Unavailable
6
Shoe LH
204120017
Unavailable
7
Inlet Grate - RH
271000564
Unavailable
7
Inlet Grate LH
271000629
Unavailable
8
IMPELLER HOUSING ASSEMBLY - Call your local BRP dealership | Includes 3,4,8
295500391
Unavailable
9
Oil Seal
267000094
$22.49
10
Needle Bearing
293350017
$27.99
11
BEARING THRUST - Call your local BRP dealership
293350019
Unavailable
12
IMPELLER SHAFT - Call your local BRP dealership
271000291
Unavailable
13
O-Ring
293300011
$8.64
14
Pipe Plug Socket Head 1/8-27 Npt
211500001
$9.59
15
Impeller Cover
271000361
Unavailable
16
Hex. Screw M5 X 20
207152060
$1.47
17
O-RING - Call your local BRP dealership
293300040
Unavailable
18
Thrust Washer
293350003
Unavailable
19
Loctite 271, 10 ml
293800005
$26.99
20
Stud
204120004
Unavailable
21
Flat Washer 10 mm, Stainless
234001600
$1.15
22
Helicoidal Lock Washer M10 | XT Models
234101601
$1.15
23
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
24
VENTURI - Call your local BRP dealership
271000509
Unavailable
25
Silicone Sealant 51388, 300 ml
296000309
$36.99
26
Elastic Nut Housing M8 | Included 10a6 to 10a6a
269501943
$6.67
27
JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4
779221
$16.99
28
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership
208564060
Unavailable
29
Steering Nozzle (Black)
271000539
Unavailable
30
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
31
Sleeve
271001816
$14.99
32
Stainless, Flat Washer 8 mm
234081600
$0.55
33
Lock Washer 8 mm, Stainless
234181601
$0.55
34
Hex. Screw M8 x 75
215687560
Unavailable
35
Impeller Ring
271000517
$9.59
36
OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership
208563060
Unavailable
37
Flat Washer M5, Stainless
234051600
$0.77
38
Instant Gasket
219701421
$51.99
38
Instant Gasket
219701421
$51.99
39
Loctite 243, 10 ml
293800060
$21.49
40
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
41
Synthetic Grease, 400 G
293550010
Unavailable
42
Was 293800018 Loctite 592, 50 ml | Package T
219704455
$33.99
43
Was 293800041 Loctite Primer 7649
219704458
$39.99
44
Square Nut M10
232802600
Unavailable
45
Flat Washer 10 mm, Stainless
234002600
$2.22
