Description

Price

1

Clutch-Flywheel | Includes 23 - 24.

290958011

Unavailable

2

GREASE FITTING - Call your local BRP dealership

290499113

Unavailable

3

OETIKER CLAMP - Call your local BRP dealership

293650021

Unavailable

4

RUBBER BOOT - Call your local BRP dealership

272000001

Unavailable

5

CAILLAU CLICK CLAMP - Call your local BRP dealership

293650055

Unavailable

6

Tridon Clamp

293650035

$7.29

7

O-Ring

293300032

$6.03

8

Support Ring

272000064

$66.49

9

O-Ring

293300036

$11.60

10

BELLOWS - Call your local BRP dealership

272000184

$27.99

11

Drive Shaft

272000073

Unavailable

12

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

13

Wing Nut M8

232681100

$2.19

14

Carbon Ring

272000770

$45.99

15

Flywheel Guard

272000553

Unavailable

16

Loctite 271, 10 ml

293800005

$26.99

17

Stud M8 x 15

211300013

Unavailable

18

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

19

Synthetic Grease, 400 G

293550010

Unavailable

20

Shaft Protector

271000536

Unavailable

21

Flat Washer 8 mm, Stainless

234082600

$2.43

22

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable

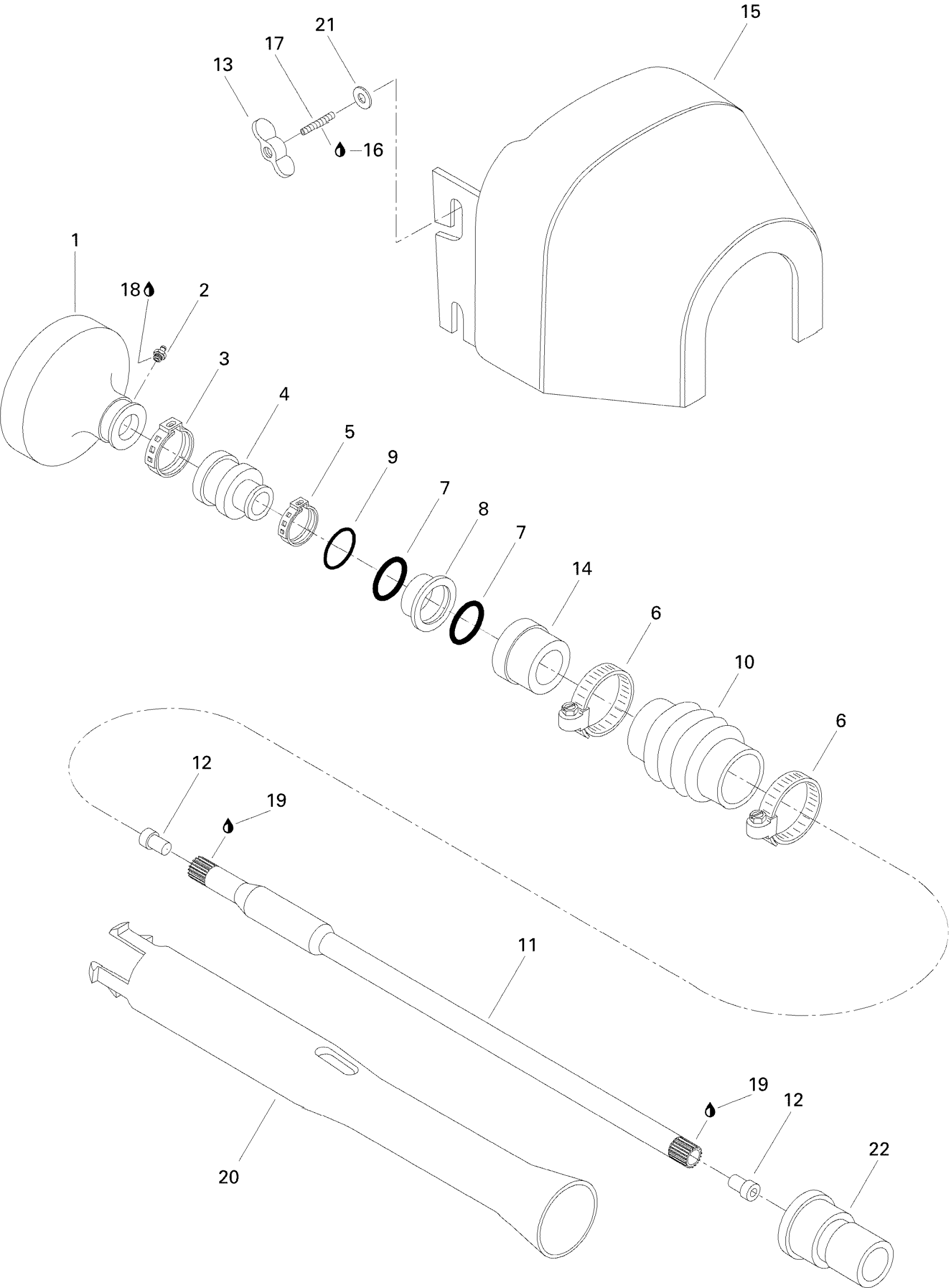

Sea-doo Speedster, 5894, 1996 05- Drive System Diagram

Clutch-Flywheel | Includes 23 - 24.

GREASE FITTING - Call your local BRP dealership

OETIKER CLAMP - Call your local BRP dealership

RUBBER BOOT - Call your local BRP dealership

CAILLAU CLICK CLAMP - Call your local BRP dealership

Tridon Clamp

O-Ring

Support Ring

O-Ring

BELLOWS - Call your local BRP dealership

Drive Shaft

DRIVE SHAFT PLUG - Call your local BRP dealership

Wing Nut M8

Carbon Ring

Flywheel Guard

Loctite 271, 10 ml

Stud M8 x 15

Était/Was 293800038 Loctite 518, 50 ml

Synthetic Grease, 400 G

Shaft Protector

Flat Washer 8 mm, Stainless

HULL INSERT, 33 MM - Call your local BRP dealership
