- Speedster, 5894, 1996
02- Oil Injection Pump And Rotary Valve

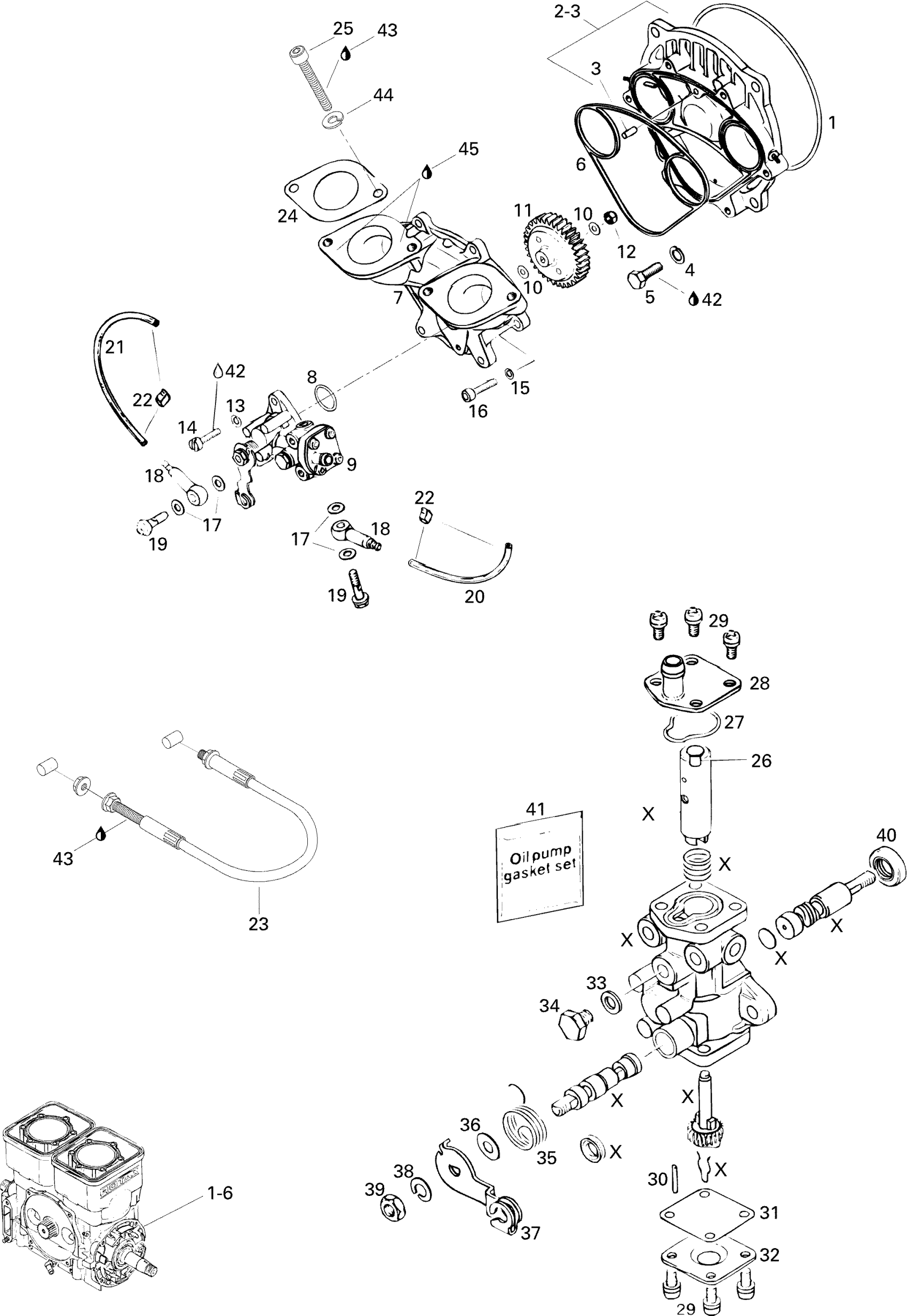

Sea-doo Speedster, 5894, 1996 02- Oil Injection Pump And Rotary Valve Diagram
#
1
Short Block Ass‘y | Includes 1 to 21
290881520
Unavailable
1
O-RING - Call your local BRP dealership
293300023
Unavailable
2
Rotary Valve Cover (Double Intake) | Includes 2 to 3
290810528
Unavailable
3
Drive Pin 5 X 10
420929650
$1.68
4
Lock Spring Washer 8 mm, Stainless
234180602
$1.16
5
Hex. Screw M8 X 20
207182044
$0.74
6
O-Ring
290931440
Unavailable
7
Oil Pump Flange
290810781
Unavailable
8
O-RING - Call your local BRP dealership
293300018
Unavailable
9
Oil Pump Ass'y | Includes 25 - 40.
290996725
Unavailable
10
FLAT WASHER - Call your local BRP dealership
420927945
Unavailable
11
Oil Pump Gear 41 Teeth
290935945
Unavailable
12
Elastic Stop Nut M6
232561414
$0.55
13
Lock Washer
290845389
Unavailable
14
Cylindrical Slotted Screw M5 x 16
215951660
Unavailable
15
Lock Washer 6 mm
290845381
Unavailable
16
Socket Head Screw M6 X 20
205062060
$2.32
17
Sealing Washer
404146600
$2.97
18
Valve Ass’Y
420956010
$17.53
19
Valve Bolt M6 x 16
290241830
Unavailable
20
Oil Hose 1500Mm Long
219704404
$17.26
21
Oil Hose 1500Mm Long
219704404
$17.26
22
Clamp 3.5 mm
290853843
Unavailable
23
Injection Cable
270000211
Unavailable
24
Gasket This part replaces 293250070.
293250134
$13.76
25
Screw Allen M8 x 75
215987560
Unavailable
26
Retainer
290256085
Unavailable
27
O-RING - Call your local BRP dealership
293300019
Unavailable
28
Pump Upper Plate
290956340
Unavailable
29
Screw with Lock Washer 4 mm
290241975
Unavailable
30
Stop Pin
290929900
Unavailable
31
Gasket
290850200
Unavailable
32
Pump Lower Plate
290956031
Unavailable
33
Gasket
290227505
Unavailable
34
Hex. Screw M6 x 8
290841583
Unavailable
35
Spring
290838114
Unavailable
36
Washer 6.2 mm
290227665
Unavailable
37
Lever Control
290848162
Unavailable
38
Lock Washer 6 mm
290845381
Unavailable
39
Hex. Nut M6
290242623
Unavailable
40
Oil Seal
293200038
Unavailable
41
OIL PUMP GASKET SET - Call your local BRP dealership
290995045
Unavailable
42
Loctite 243, 10 ml
293800060
$21.49
43
Sealant Loctite 648
219703000
$45.99
44
Lock Spring Washer 8 mm, Stainless
234180602
$1.16
45
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
46
Engine Gasket Set (Not Shown)
290886317
Unavailable
